• Model NO.：KQ Series
• Automatic Grade：Automatic
• Application：Milk, Yogurt, Milk Powder, Dairy, Milk, Juice, Beverage
• Customized：Customized
• Name：Stainless Steel 2stage Homogenizer and Pasteurize
• Material：Sanitary Stainless Steel 304 , 316
• Capacity/Flux：500L,H-10000L,H
• Pressure：20MPa to 100MPa
• Certificate：Ce Certificate
• Performance：0.2 Um
• Voltage /Hz /Phase：Customized
• Stage /Piston：2,3
• Spare Parts：Available
• Warranty：15 Months
• Working Life：10 Years or More
• Motor Brand：Siemens ,ABB ,China Brand
• Packing：Wooden Box
• Voltage ,Hz ,Phase：Make It to Your Order
• MOQ：1set
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month
• Package size per unit product：118.00cm * 80.00cm * 116.00cm
• Gross weight per unit product：450.000kg

Basic Info.

Model NO. KQ Series Automatic Grade Automatic Application Milk, Yogurt, Milk Powder, Dairy, Milk, Juice, Beverage Customized Customized Name Stainless Steel 2stage Homogenizer and Pasteurize Material Sanitary Stainless Steel 304 / 316 Capacity/Flux 500L/H-10000L/H Pressure 20MPa to 100MPa Certificate Ce Certificate Performance 0.2 Um Voltage /Hz /Phase Customized Stage /Piston 2/3 Spare Parts Available Warranty 15 Months Working Life 10 Years or More Motor Brand Siemens /ABB /China Brand Packing Wooden Box Voltage ,Hz ,Phase Make It to Your Order MOQ 1set Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Packaging & Delivery

Package size per unit product 118.00cm * 80.00cm * 116.00cm Gross weight per unit product 450.000kg

Product Description

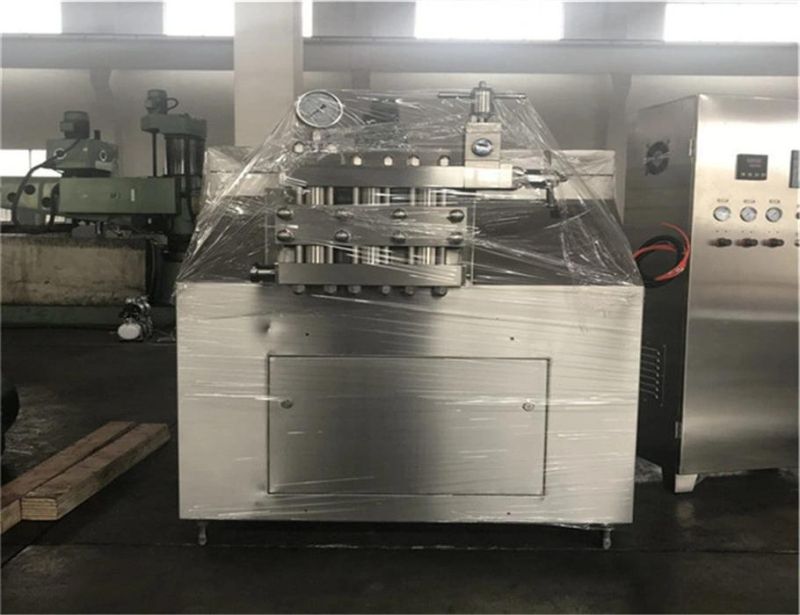

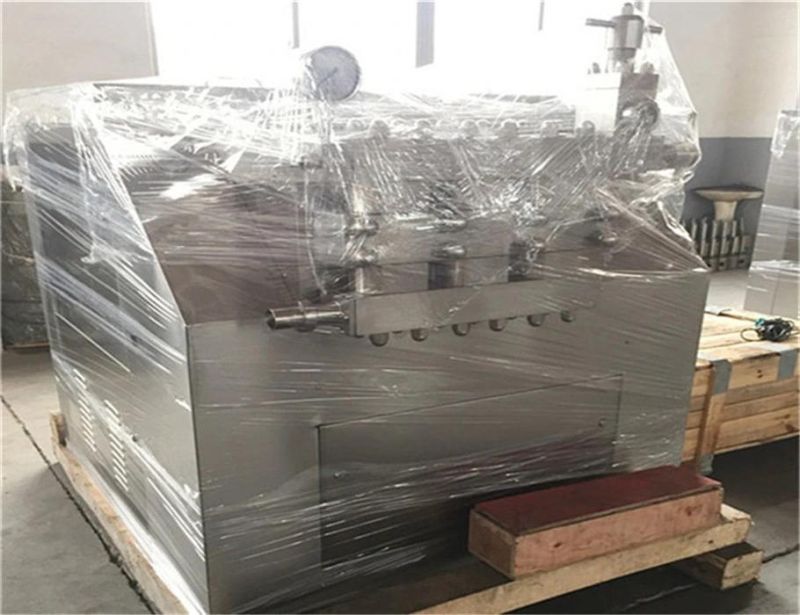

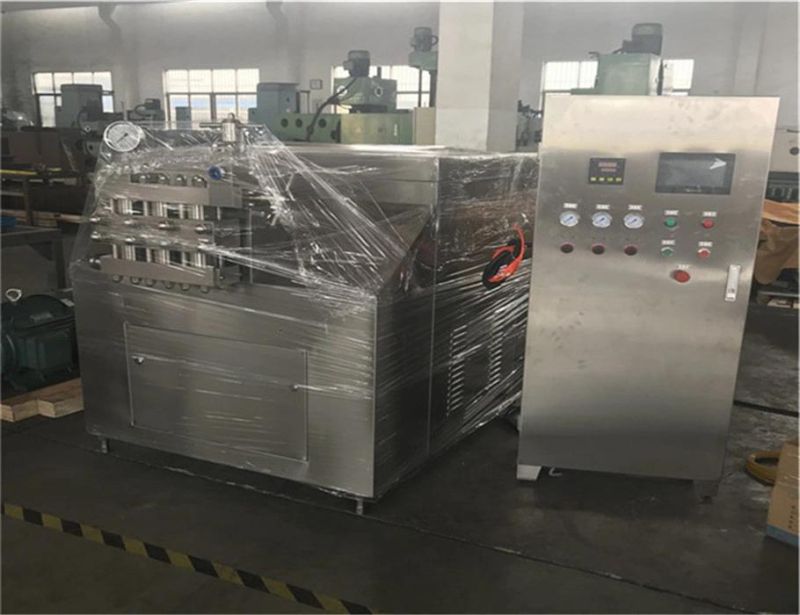

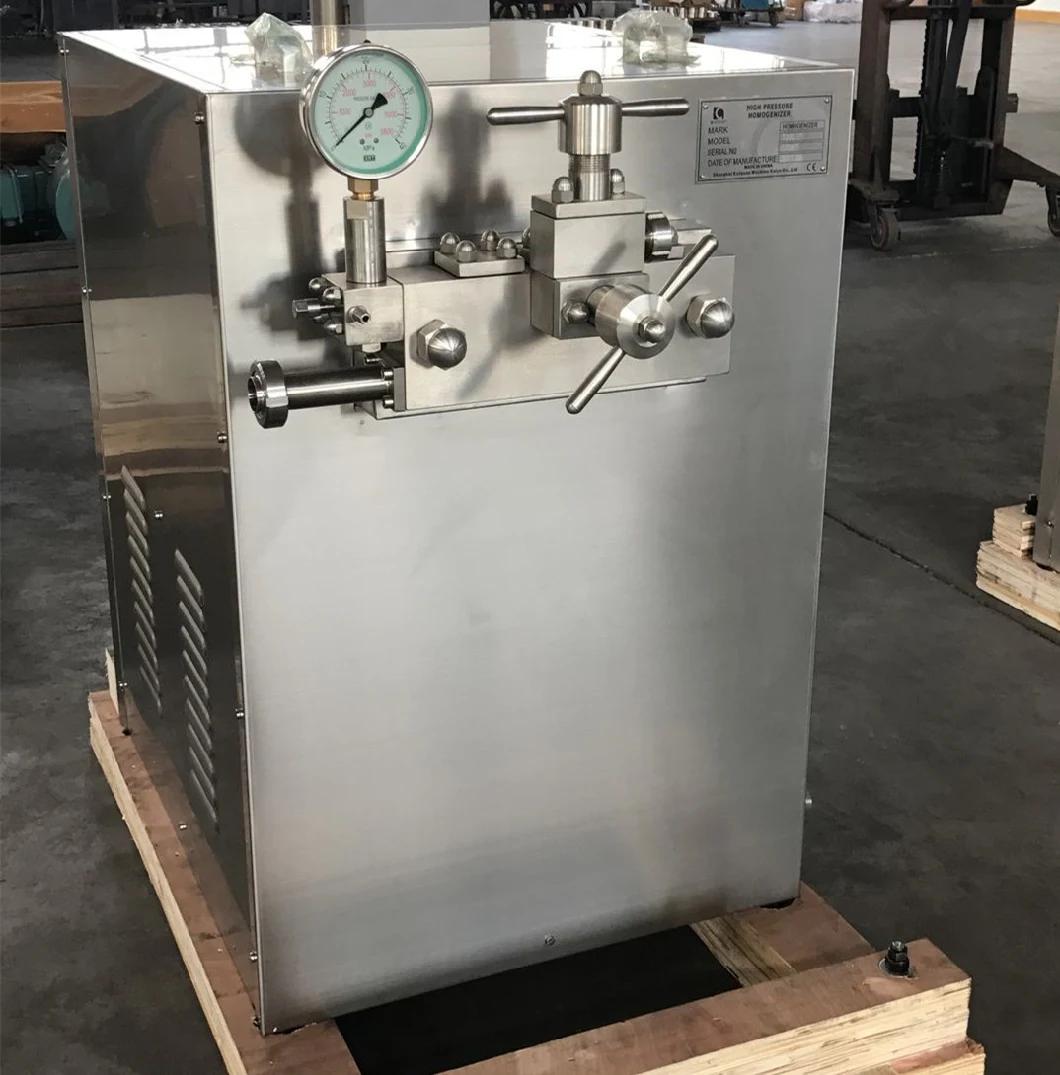

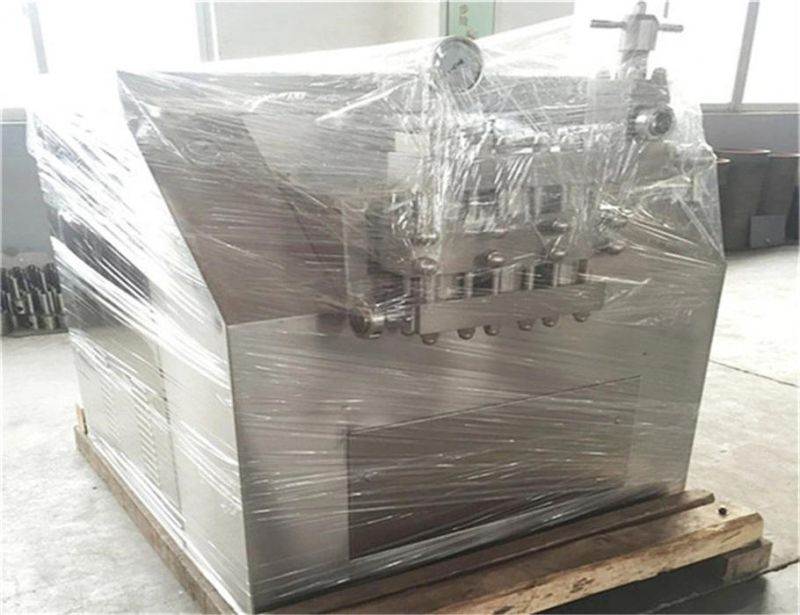

Stainless Steel 2Stage Homogenizer And Pasteurizer For Milk Yogurt Soybean Milk



The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.

The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.


CE Stainless Steel 2Stage Homogenizer And Pasteurizer For Milk Yogurt Soybean Milk
