• Model NO.：GD150
• Forming：Deposite
• Transport Package：Wooden Case
• Specification：GD450
• Trademark：TGMachine
• Origin：Shanghai
• HS Code：84382000
• Production Capacity：50sets,Year

Basic Info.

Model NO. GD150 Forming Deposite Transport Package Wooden Case Specification GD450 Trademark TGMachine Origin Shanghai HS Code 84382000 Production Capacity 50sets/Year

Product Description

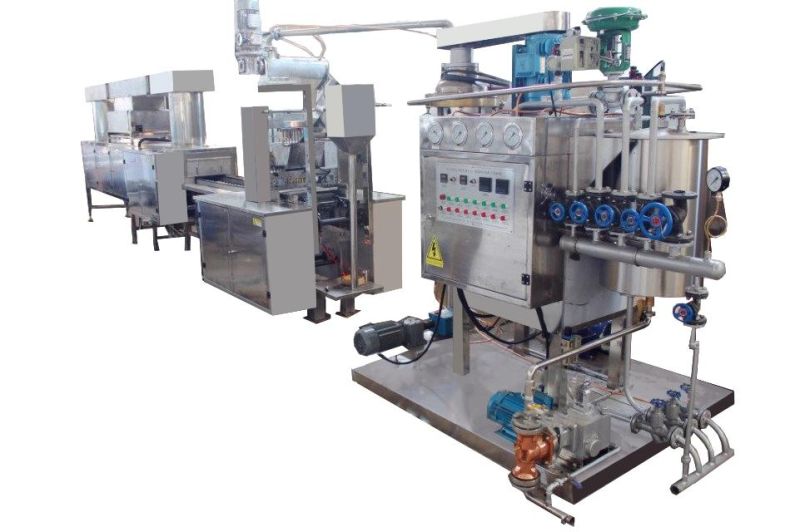

Automatic Hard Candy Depositing Product Line PLC programmed
 GD150/300/450/600 hard candy depositing line is a compact unit which can continuously produce various kinds of hard candies under a strict sanitary condition. It is also an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.

Model	GD150	GD300	GD450	GD600
Output(kg/h)	150	300	450	600
Max candy weight	6g	6g	6g	6g
speed	55~65 n/min	55~65 n/min	55~65 n/min	55~65 n/min
Steam consumption Steam pressure	250kg/h, 0.5~0.8MPa	300kg/h, 0.5~0.8MPa	400kg/h, 0.5~0.8MPa	500kg/h, 0.5~0.8MPa
Compressed air consumption Compressed air pressure	0.2m3/min, 0.4~0.6MPa	0.2m3/min, 0.4~0.6MPa	0.25m3/min, 0.4~0.6MPa	0.25m3/min, 0.4~0.6MPa
Electric power needed	18kW/380V	27kW/380V	34kW/380V	42kW/380V
Total length(m)	15	17	17	20
Gross weight	3500kg	4000 kg	4500 kg	5000 kg


The strong point of the line is as following:
1. PLC /computer process control available;
2.An LED touch panel for easy operating;
3.The standard production capacity from 150 kgs/h to 450kgs/h;
4.The main parts is made of hygienic stainless steel;
5.Optional (mass) flowing controlled by Frequency inverters ;
6.In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid(milk); Dosing pumps      for the automatic injection of colors, flavors and acids;
7.One set of extra chocolate paste injection system for making chocolate-central candies; "two/three-color striped depositing","two or three color double layers depositing", "central filling", "clear"  hard candies and etc. can be made.
 8.Moulds can be made according to the candies samples provided by the    customer
