3000L Commercial Fermentation Tank Conical Fermenter Price
Jinan Chenji International Trade Co., Ltd.- After-sales Service:Whole Life
- Warranty:3 Years
- Condition:New
- Customized:Customized
- Voltage:3 Phase, 380V 50Hz , 220V 60Hz
- Composition:Beer Brewery Equipment
Base Info
- Model NO.:CJ-3000
- Processing Material:Wheat, Malt, Barley
- Process:Ferment
- Polishing:Less Than 0.4 μm
- Dimension:Customized
- Power:15-72 Kw
- Insulation:50-100 Polyurethane
- Combination Method:Mash,Lauter Tun, Kettle,Whirlpool Tank
- Water Consumption:3.5m3,T
- Heating Way:Electric Heating,Steam Heating,Direct Fire Heating
- Control System:PLC
- Degree of Automation:Semi-Automatic,Fully Automatic
- Washing:360 Degree Spray Ball
- Manway:Top or Side
- Application:Restaurants, Bars, Hotels, Brewery
- out Size:Custom Made
- Certification:CE ISO UL
- Transport Package:Wooden Case or Steel Frame
- Specification:100L~3000L
- Trademark:CHENJI
- Origin:Jinan, China
- HS Code:8438400000
- Production Capacity:500 Sets Per Year
Description
With Germany technology and automatic welding, Specification: Tri-clamp 25/32/38/51
Manual butter-fly valve, Pneumatic butterfly valve, solenoid valve could be choose.

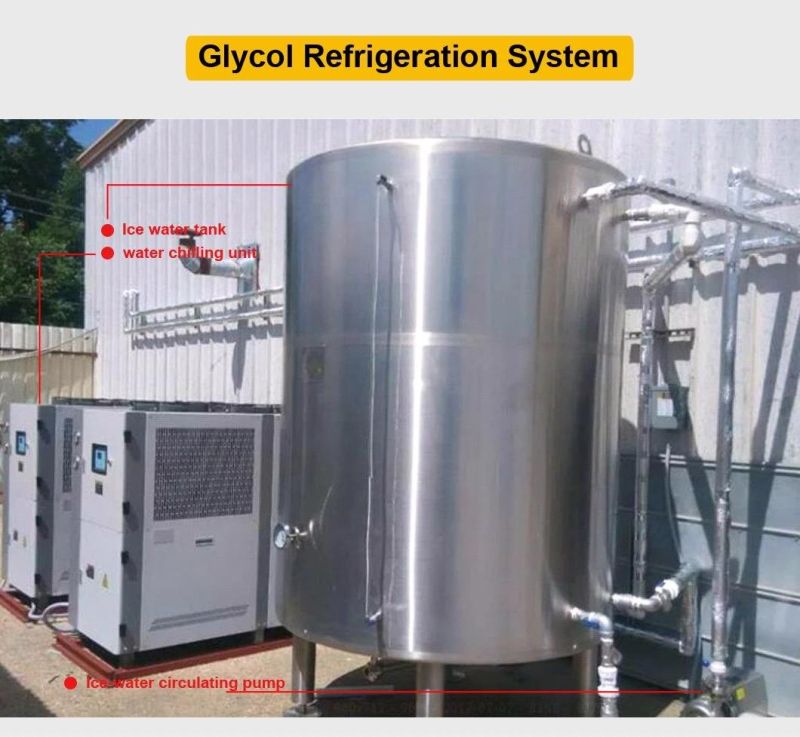

Ice water tanks, cold water tanks, stainless steel plate heat exchangers, refrigerators, refrigeration pipelines, pipe fittings and valves and control systems, of which the refrigeration unit is the core part, and the compressor unit is refrigerated with liquid ammonia, which are respectively used for tap water heat exchange and direct fermentation , Sake cans reduce the temperature of beer. The refrigerating machine adopts imported compressor, which is safe to operate and has a low failure rate, which solves the user's worries. The system pipelines are all made of sanitary and seamless steel pipe welding and fusion. Freon runs in the pipe to cool down, and high-quality polyurethane insulation pipes are used for pipelines. Thermal insulation effectively reduces heat loss.
The refrigeration system is used to cool down the saccharified wort and fermentation. The optimized design of the refrigeration system directly determines the lower energy loss in the operation of the equipment. The refrigerator we use is safe to operate and has low failure. The ice water tank is insulated with polyurethane, and the pipeline is insulated with polyethylene, which effectively reduces cold loss. The equipment cooling system is used to cool down the saccharification wort and fermentation, and is a major energy-consuming system that composes the beer equipment. The optimized configuration of the refrigeration system directly determines the lower capacity loss during equipment operation.

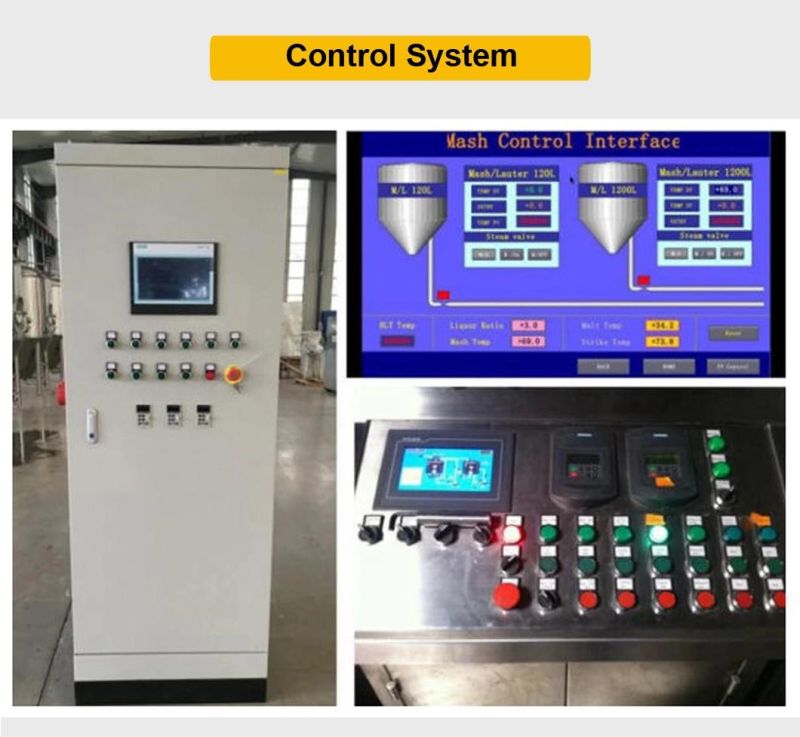

The craft beer equipment control system is the core part of the entire brewing process, including: malt crushing, saccharification, fermentation, cooling, temperature control, pressure control, refrigeration and other important systems and the overall control of other auxiliary control systems, which can realize partial control Or comprehensive PLC automatic control.
The control system adopts the beer intelligent PLC control system and intelligent control system independently developed and patented by the company. It is composed of Siemens programmable controller PLC, industrial computer, automatic control components, power distribution cabinet, and operation console. It can also control the material flow manually on the operation console. It can be controlled automatically or manually according to customer requirements.
This system adopts the upper and lower levels of computer control, adopts the Siemens STEP7 series programmable controller that was widely used internationally in the 1990s, and combines with the high-reliability industrial computer to form a powerful control system. Industrial computer real-time display, storage, query, control or modification of each process parameter to make the entire equipment in the best state; the lower control level is composed of SIMATIC STEP7-300PLC
In this system, various signals include: liquid level switch, valve position, motor, pump and other switching signals, as well as temperature and other analog signals, all enter the PLC. The PLC automatically completes the various switches according to the program set by the process requirements. The output signal completes the control of actuators such as butterfly valves, solenoid valves, pumps, reducers, etc., and completes the technological process. The communication between the upper computer and the lower computer adopts the DIN standard PROFIBUS-DP bus, which can be easily connected with other control systems for unified management.
of a small brewery can be equipped with different types of cleaning systems according to the scale of the equipment. There are two modes of CIP cleaning workshop and simple disinfection device for you to choose.
1. The CIP cleaning workshop is suitable for large-scale and large-volume factories. It is generally composed of lye tank, acid tank, aseptic water tank and disinfection tank. The tank body is made of stainless steel welding. The system has the characteristics of compact structure, convenient installation and maintenance, and can effectively control the tank container. Production equipment such as pipelines and pipelines are cleaned in situ. The entire cleaning process runs in closed production equipment, tank containers and pipelines, which greatly reduces the chance of secondary pollution and has a small footprint, saves operating time and improves efficiency. ; Save labor and ensure safe operation; save water, steam and other energy, reduce the amount of detergent production equipment can achieve large-scale, high level of automation to extend the service life of production equipment.
2. Small-scale production factories can also use simple CIP disinfection devices, including alkali tanks, sterilization water tanks and sanitary cleaning pumps. This device can fix the alkali tank, sterilization water tank, cleaning pump, pipe fittings and valves on a small cart, or it can be customized for you according to the scale of the equipment. The operation is flexible and simple, and it can be used in the cleaning and disinfection of various types of small brewery equipment, so that it can achieve the characteristics of thorough disinfection and no dead ends. At the same time, the equipment can also be equipped with manual, semi-automatic and fully automatic operation according to different customer requirements.
