Sanitary Air Control Shut-off and Diverter Valve
Donjoy Technology Co., Ltd.- Application：Pet Food, Chocolate, Ice Cream, Fruit, Dairy, Beverage

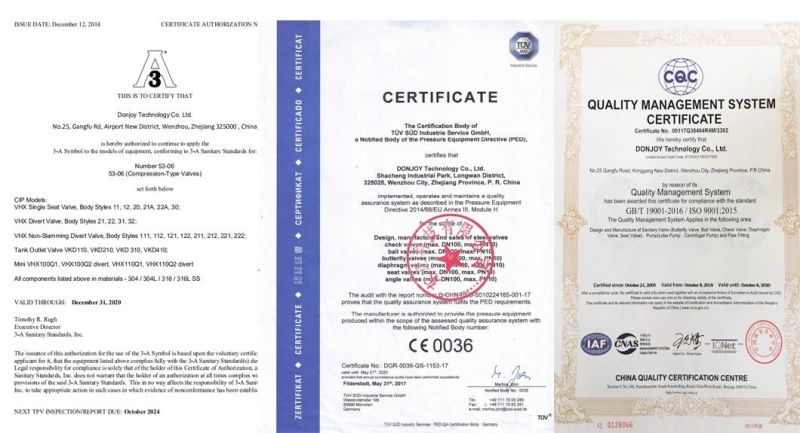

- Certification：CE, ISO9001
- Operation：by Handle or Actuator
- Polish：Internal 0.4 Micrometer,External Sandblasting
- Gasket：EPDM,PTFE,Silicone,Viton,FPM
- Connection Type：Weld,Clamp,Thread,Flange
Base Info
- Max Pressure：10bar
- Product Name：3A Certified Sanitary Shut-off and Diverter Valve
- Transport Package：Carton,Plywood Case
- Specification：CE, 3A, FDA, ISO
- Trademark：DONJOY
- Origin：Wenzhou, Zhejiang, China
- HS Code：8481802990
- Production Capacity：100, 000PCS
Description
3A Certified Sanitary Shutoff Divert Valve for Food Beverage Brewery
Design Features
1.Unique design, sterile, no dead angle
2.Compact and robust design, 360° adjustable body.
3.Normally closed (NC) as the default, the NC and NO function are interchangeable by rotating 180° of the cylinder.
4.Easy assembly/disassembly by loosening clamp in middle of the valve body
5.Hygienic design according to 3A standard
6.Manual handwheel, pneumatic actuator are interchangeable.

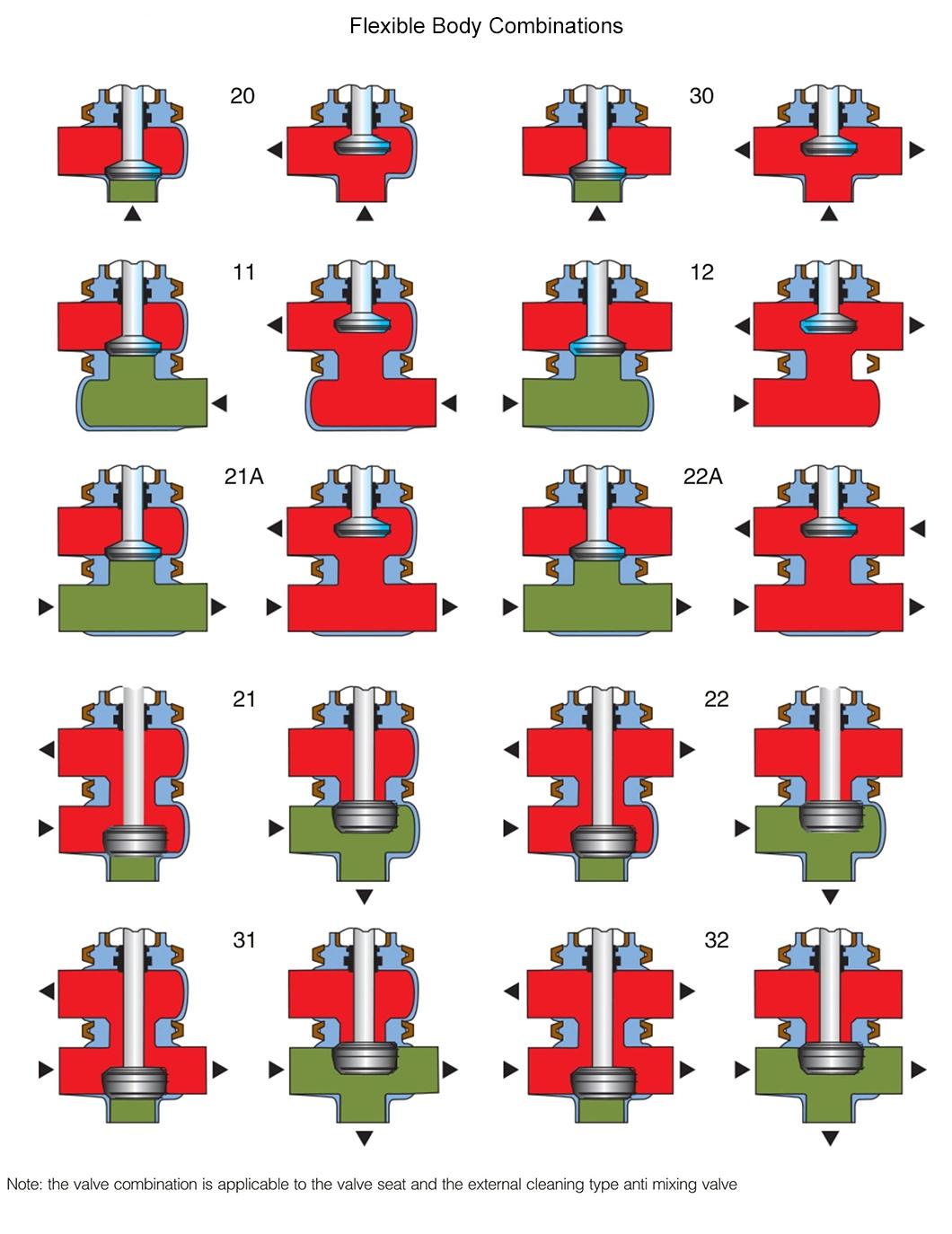

7.A wide selection of different body combinations.
8.100% hydraulic tested / 100% inspected

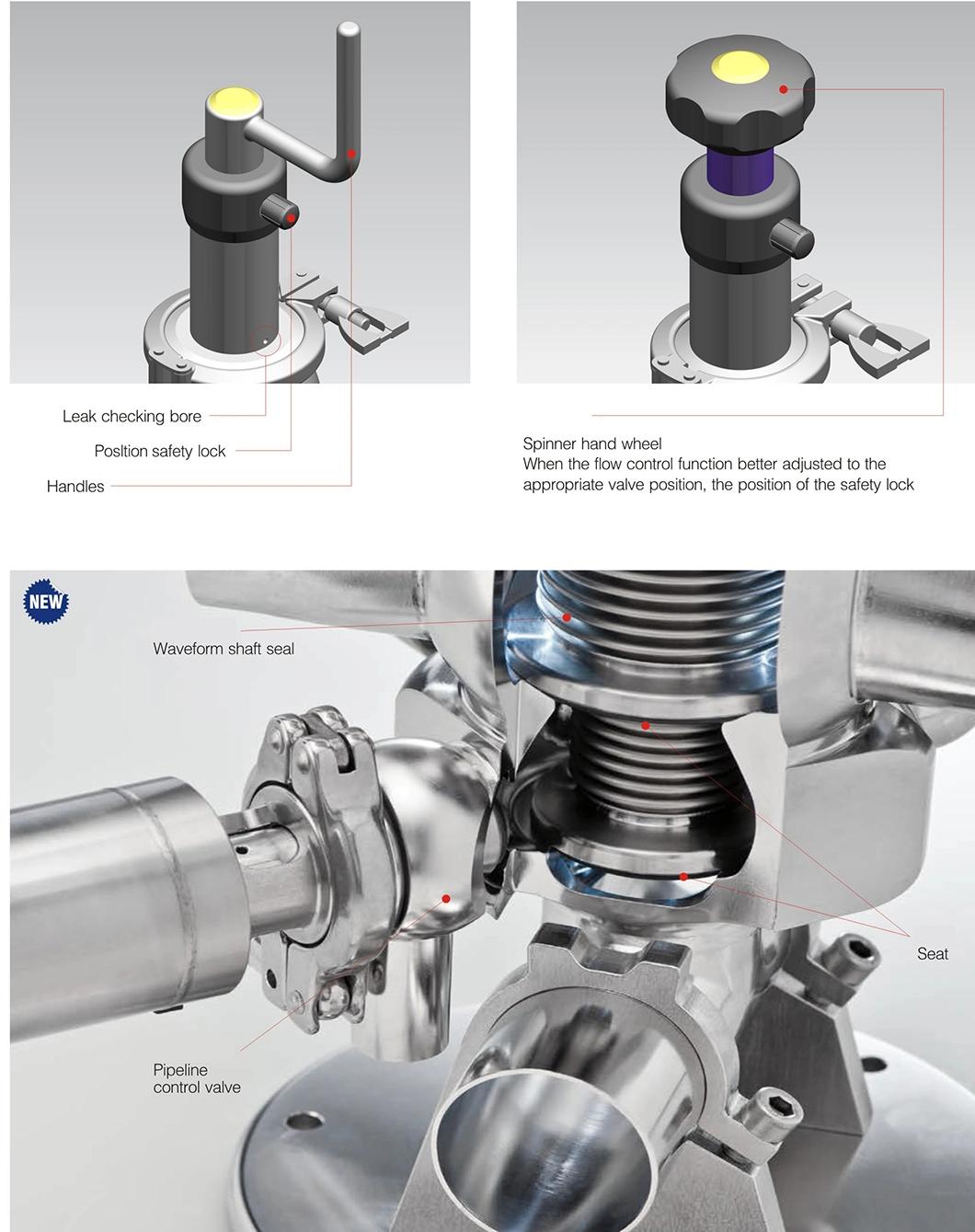

Handles:Stainless steel handwheel,Fine-tuning handwheel

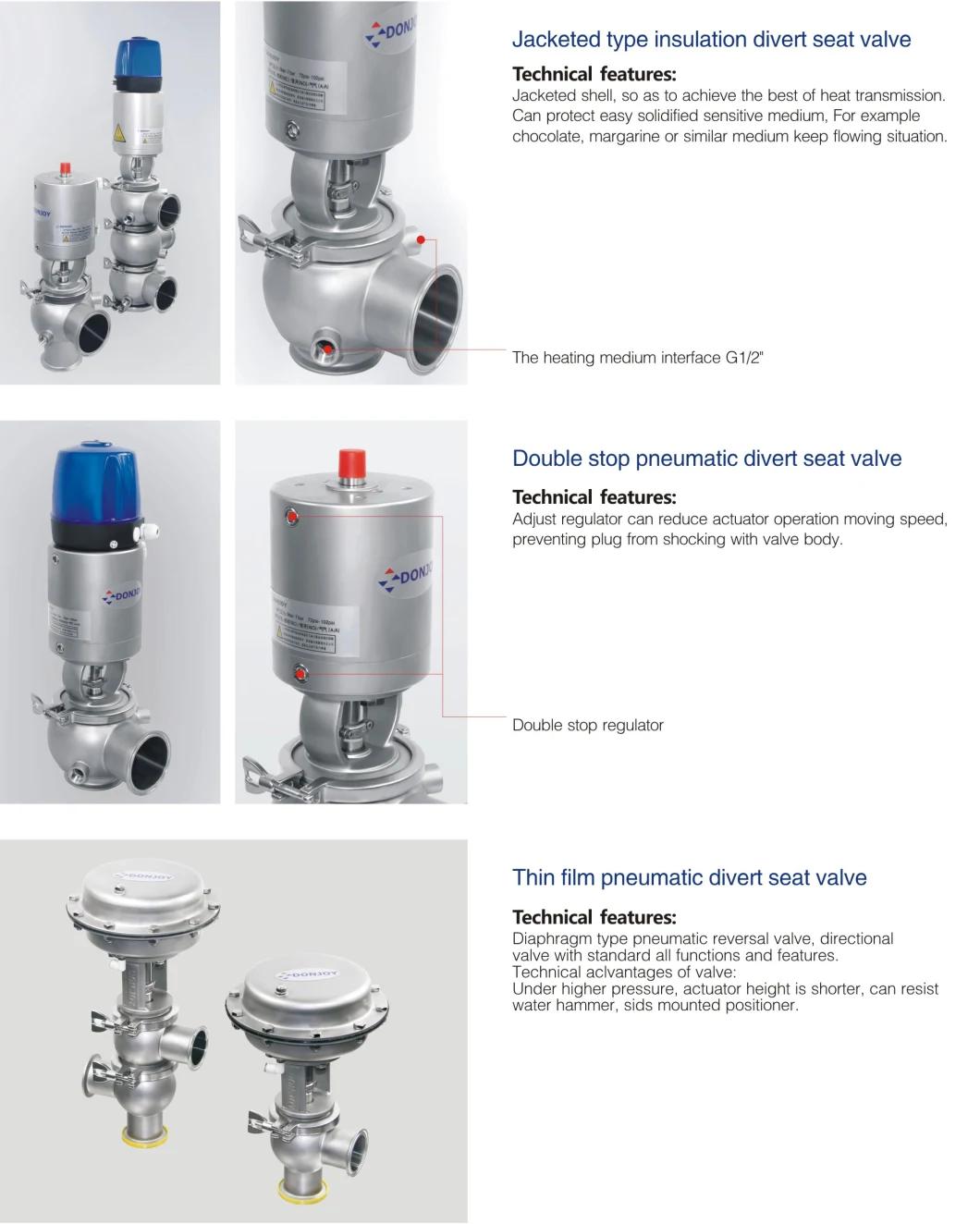

Actuators:Stainless steel actuator,

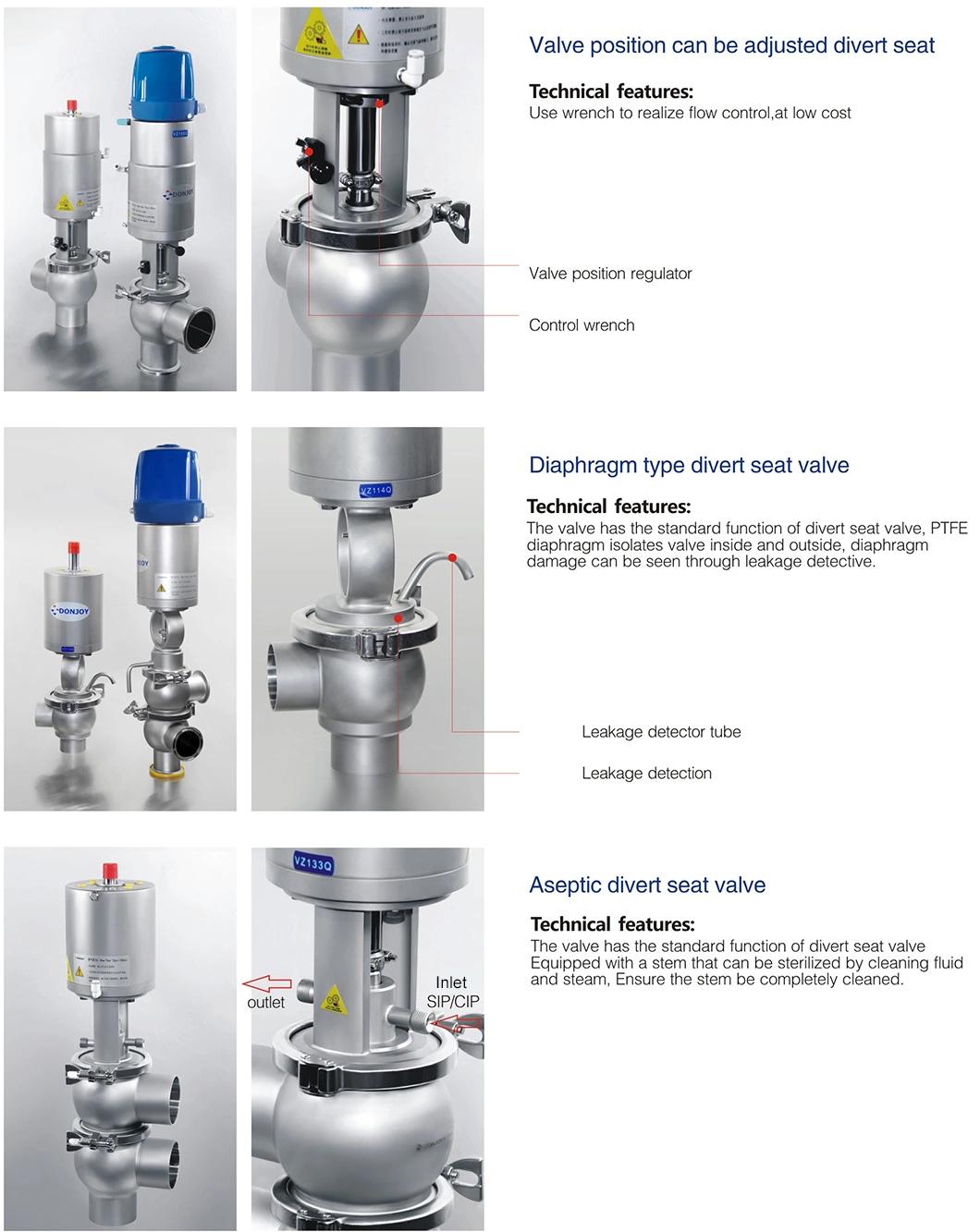

Units for intelligent control and indication:Proximity Switches (position sensor)
Stroke Limiter
C-top control
IL-top control (Positioner)
Diaphragm Actuator

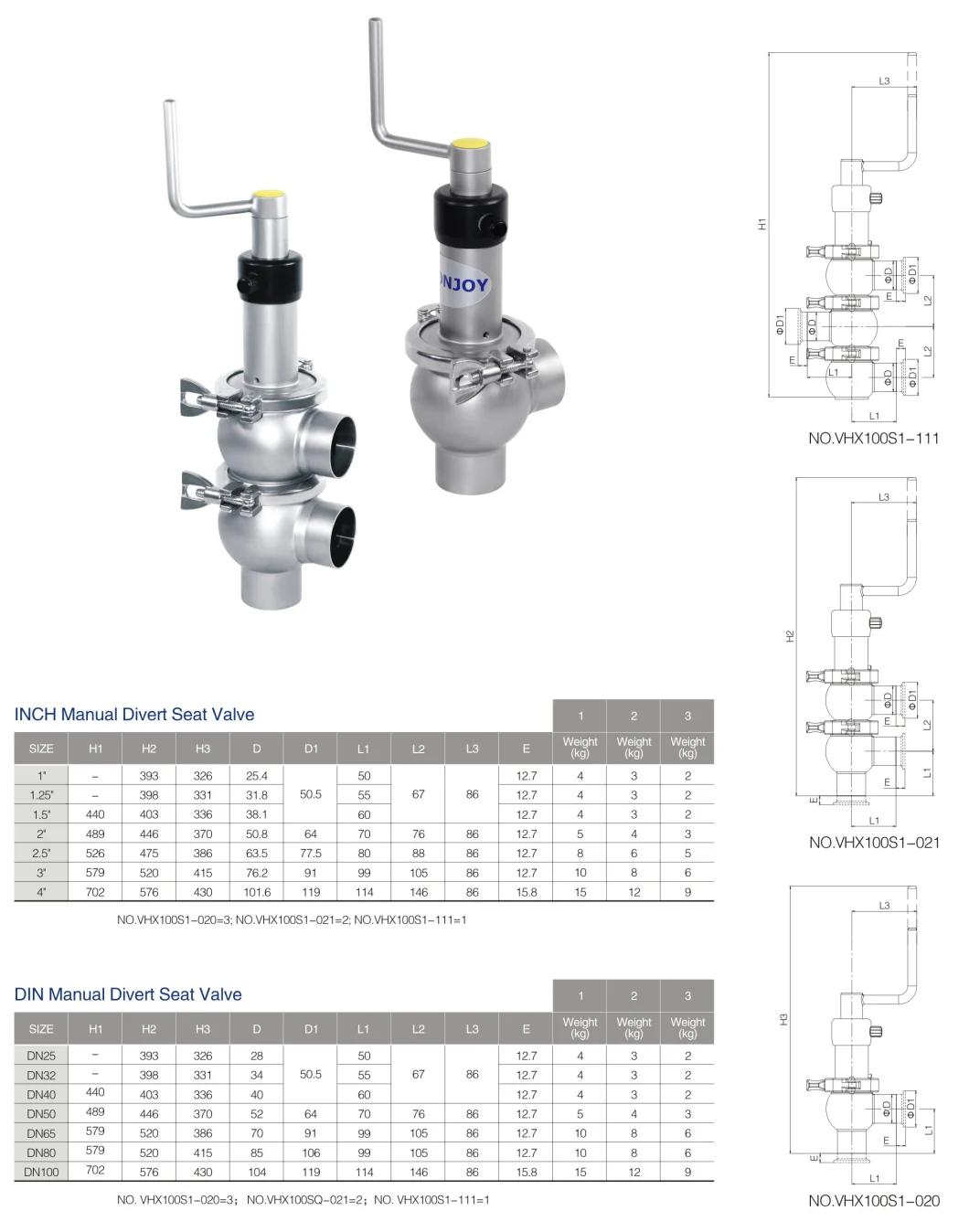

Reference: SV-5DSMC
Sizes available: 1"-4" (DN25-DN100)
End connection: butt-welded, tri-clamp
Body material: AISI 304, or AISI 316L

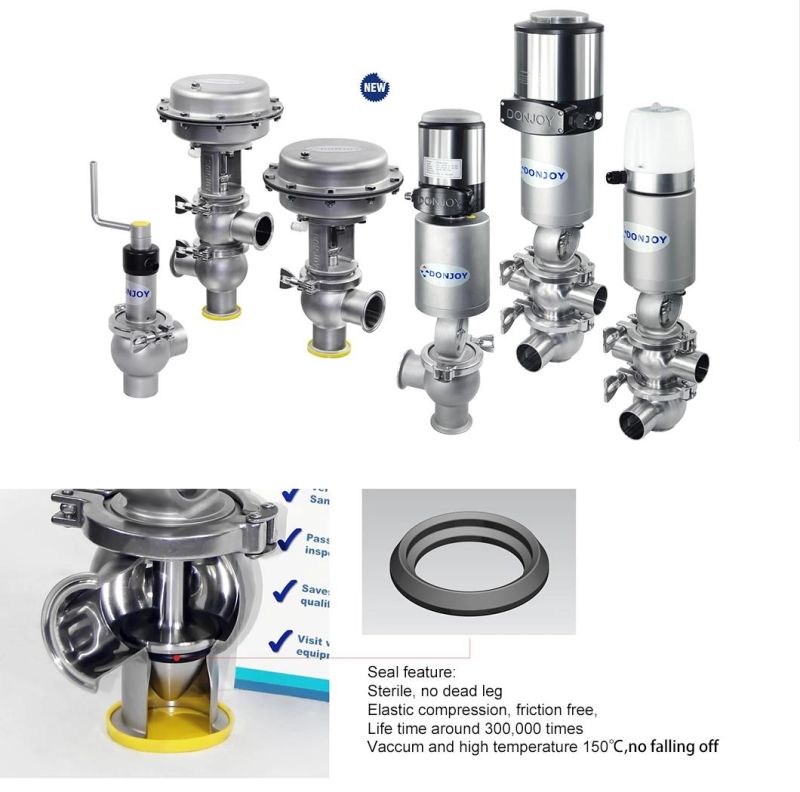

Seat material: EPDM, FDA177.2600
Max. working pressure: 145psi (10bar)
Temperature range: 14°F to 248°F (-10ºC to 120ºC, EPDM)
Operation: stainless steel handwheel, fine-tuning handwheel
Internal treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Connection:
Clamped, welded and threaded,flanged etc.
Packaging Details:
Bubble pack for each valve.
Outside packing is by carton or plywood case.
