• Model NO.：TSXG-30
• Material：304 Stainless Steel
• Color：Silver
• Contol System：Hand Control
• Name：Rotary Washing Machine
• Feature：Easy Operation
• Water Spray：High Pressure Spray System
• Usage：Vegetable and Fruit Washing
• Function：Washing Sterilizing
• Transport Package：According to Customer Requirement
• Specification：3000*1450*2100mm
• Trademark：AMBITIOUS
• Origin：China
• HS Code：8438600000
• Production Capacity：100pieces,Year

Basic Info.

Model NO. TSXG-30 Material 304 Stainless Steel Color Silver Contol System Hand Control Name Rotary Washing Machine Feature Easy Operation Water Spray High Pressure Spray System Usage Vegetable and Fruit Washing Function Washing Sterilizing Transport Package According to Customer Requirement Specification 3000*1450*2100mm Trademark AMBITIOUS Origin China HS Code 8438600000 Production Capacity 100pieces/Year

Product Description

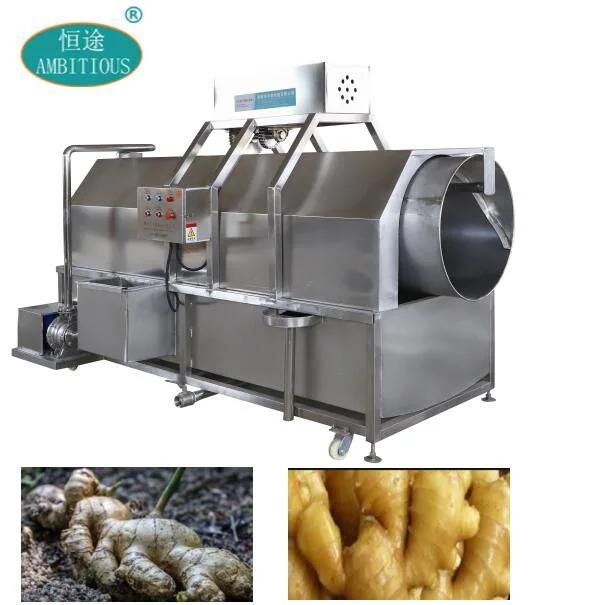

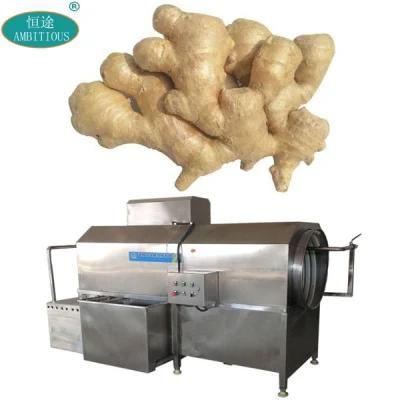

1.- Automatic Ginger Rotary Washing Machine

Structure of Automatic Ginger Rotary Washing Machine:

Rotary washing machine is composed of frame, transmission reducer, conveying hollow screw, rotary drum, spray pipe, water collecting device, high pressure nozzle and others.


Working principle of rotary washing machine:

When working, the reducer turns the transmission shaft through the chain, and then drives the drive chain on the outer surface of the drum through the power sprocket on the transmission shaft, thus rotating the drum. After the raw materials enter the drum, they are rolled and cleaned under the action of the drum and high-pressure spray water. Moreover, the hollow screw can delivery the material conveniently and evenly.

The sewage flows into the sump through the mesh on the surface of the drum, which is similar to the discharge port of the rhizome cleaning machine. When the sewage accumulates to a certain height in the sump, it will overflow the sump and flow to the curved network of water filtration.
At this time, the water will enter the water tank through the mesh of the filter screen, the floating dirt will slide out of the filter screen, and the precipitated dirt will stay at the bottom of the sump for discharge, the water filtered by the filter screen will be transported to the spray pipe under the action of the water pump, so that the water can be recycled.

 2.- Applications of Automatic Ginger Rotary Washing Machine

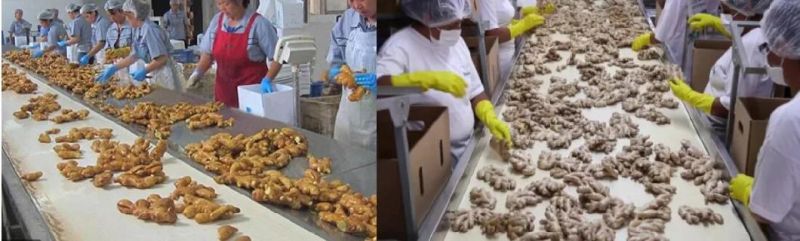

Washing the ginger, fresh potatoes, fruits, raddish, and so on.



3.- Technical Index of Automatic Ginger Rotary Washing Machine


No.	Item	Value
1	Model	TSXG-30
2	Overall Dimensions	2300*1450*2100mm
3	The Voltage	308V/50HZ
4	Power	2.2KW
5	Effective dimensions	2800*800mm
6	Output	300-500KGS/Hour



4.- Packaging and Delivery

Packaging	With Wrapping film and in wooden case, or according to the customer needs.
Delivery Time	20-30 Working days.
Shipping Type	By sea, railway, etc.



5. - Introduction of Our Company

Zhucheng Tianshun Machinery Co.,Ltd. has grown into a large, specialized food machinery manufacturing enterprise which integrates R & D and manufacturing. Currently has more than 100 employees, the division of labor is professionalization and specific, there are technical department, after-sales service department, domestic marketing department, international business department, etc. The company has all kinds of welding equipment, machining equipment to meet the needs of different customers.


Main products: Food machinery and complete production lines, includes:

Vegetables&fruits cutting machines,
Peeling&washing machines,
Frying equipment,
Fruit drying machine,
Air drying machinery,
Blanching&cooking machine,
Food flavoring machine,
Food starching machine,
Vacuum packing machine,
Donuts machine,
Complete production line, potato chips production line, french fries production line, plantain chips production line.


All of them can be designed semi-automatic and full automatic, and widely used for processing varieties of vegetable, fruits, fish, seafood, etc. Some of them have pass the CE certificate. All of them could be customized, and we also provide and design individual machines for customers.
