• Model NO.：PQFB
• Braking System：Dynamic Braking
• Moc：Stainless Steel
• Transport Package：Poly Film and Wood Carton Packing
• Specification：GMP
• Trademark：Huada
• Origin：China
• HS Code：8421199090
• Production Capacity：50 Sets,Month

Basic Info.

Model NO. PQFB Braking System Dynamic Braking Moc Stainless Steel Transport Package Poly Film and Wood Carton Packing Specification GMP Trademark Huada Origin China HS Code 8421199090 Production Capacity 50 Sets/Month

Product Description

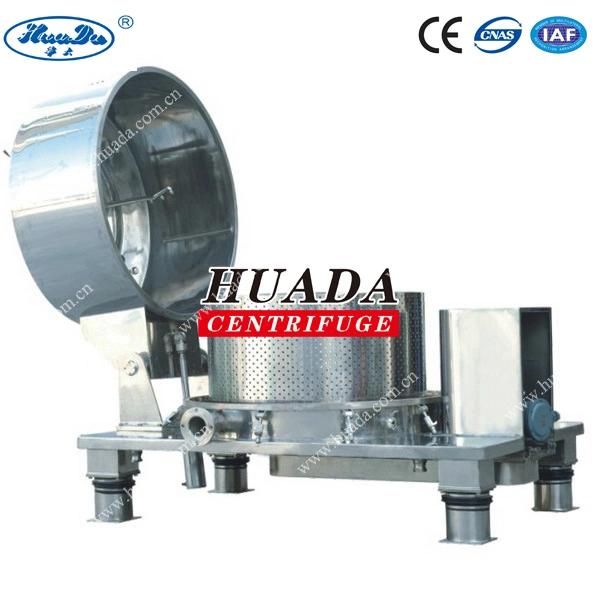

PQSB Platform Base Top Discahrge Food Centrifuge
_________________________________________________________________________________Product Description

Manual Top Discharge Centrifuge in Production Video:

http://huada-centrifuge.en.made-in-china.com



Once the materials to be separated enter the fast-spinning basket, it will be filtrated by the filter liner under the centrifugal force. The liquid flows out through the liquid outlet, but solids deposit on the internal wall of the basket. Once the solid cake reaches the rate capacity, feeding stops. Wash the solids cake, and then drain out the washing water. Finally stop the machine. The solid cake is discharged manually and move to next batch.

 Main features

1,With full-turnover cover design and polished surface leaves no residual heel. The case, fixing parts and basket are made of stainless steel. It is easy to clean the gap between the case and the basket.
2,Platform base design lowers the center of gravity and requires minimum installation space. The platform base can be used for operation platform.
3,Liquid-damping vibration isolators, simplify the routine maintenance.
4,Full-turnover hinged cover, feeding pipe, washing pipe, observation glass and light. Automatic CIP system (optional) cleans the internal surface of the case, the basket and liquid slot to meet the clean requirement in accordance with GMP standards.
5,Wide range of applications. No damage to the particle shape.
6,Inverter start-up, smooth starting, adjustable relative centrifugal force. Tightness structure with silicone rubber or fluoroelastomers seals. Nitrogen protection system (optional) is for anti-explosion applied to poisonous, flammable and explosive environment.
7,It can be configured with manual, hydraulic and a variety of forms of flip.

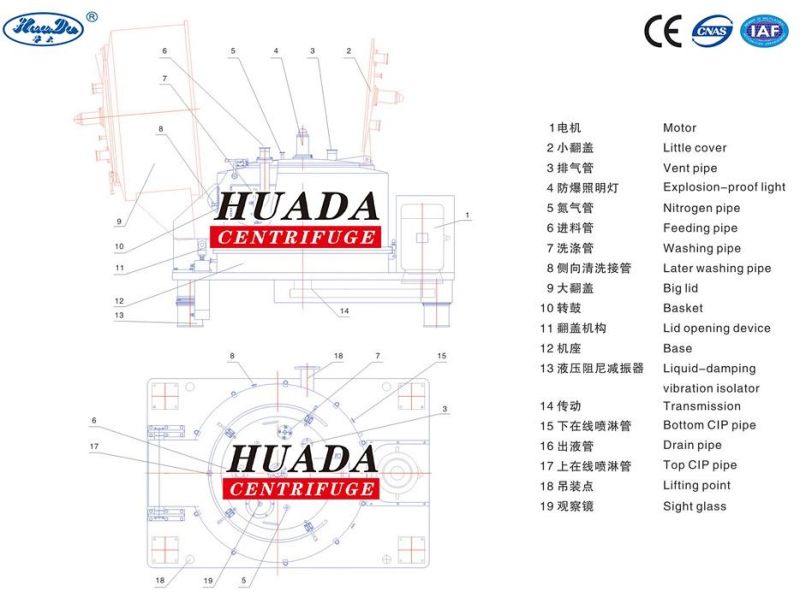

Configuration

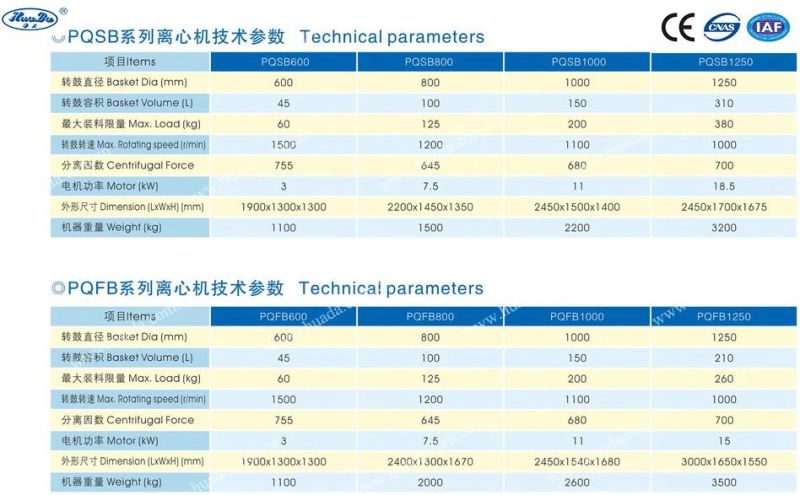

 Parameters

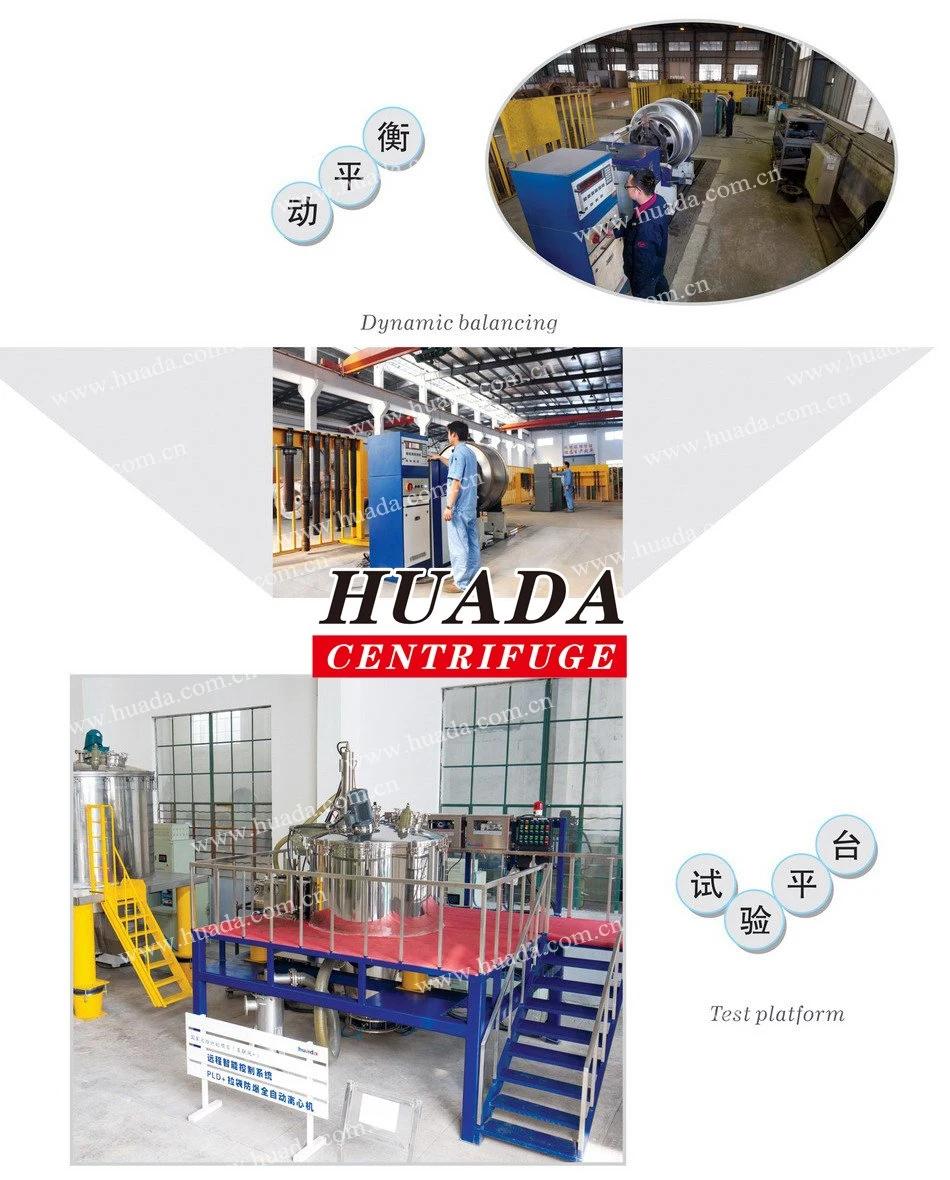

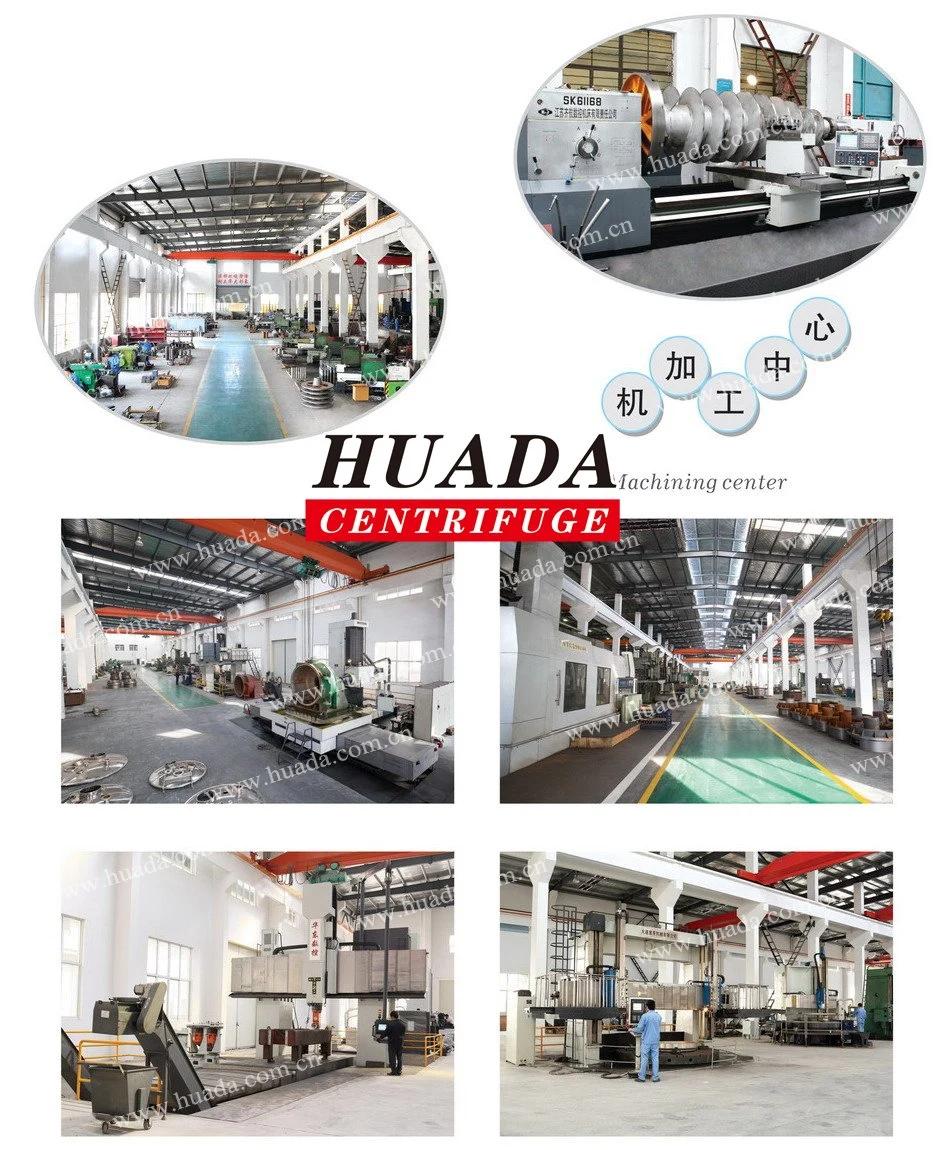

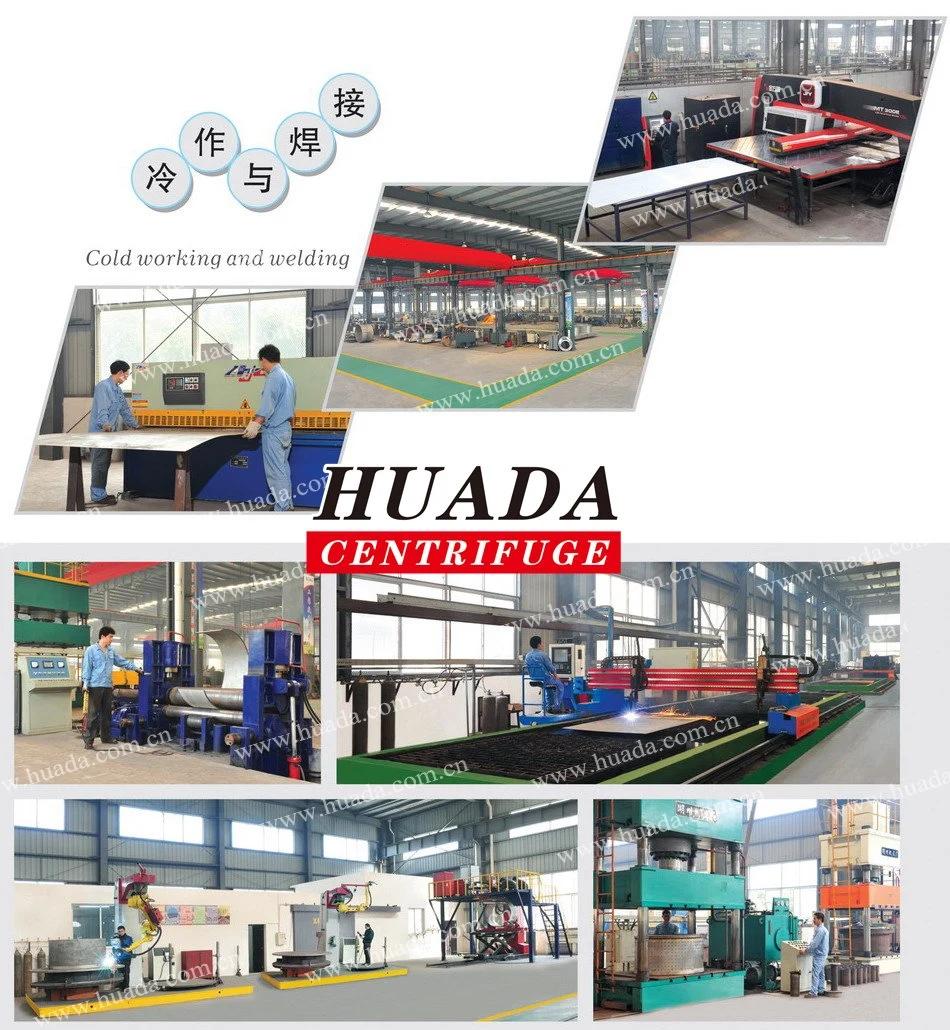

 Production site
