• Model NO.：TSZD-40
• Application：Chips
• Customized：Customized
• Material：Food Grade Stainless Steel
• Basket：Circular
• Heating Method：Electric Heating
• Power：113kw
• Heating Time：25-45minutes
• Oil Capacity：550L
• Applications：Chips,Snack Foods
• Transport Package：According to Customer Requirements
• Specification：4000*1680*1900mm
• Trademark：AMBITIOUS
• Origin：China
• HS Code：843860000
• Production Capacity：200pieces,Year

Basic Info.

Model NO. TSZD-40 Application Chips Customized Customized Material Food Grade Stainless Steel Basket Circular Heating Method Electric Heating Power 113kw Heating Time 25-45minutes Oil Capacity 550L Applications Chips,Snack Foods Transport Package According to Customer Requirements Specification 4000*1680*1900mm Trademark AMBITIOUS Origin China HS Code 843860000 Production Capacity 200pieces/Year

Product Description

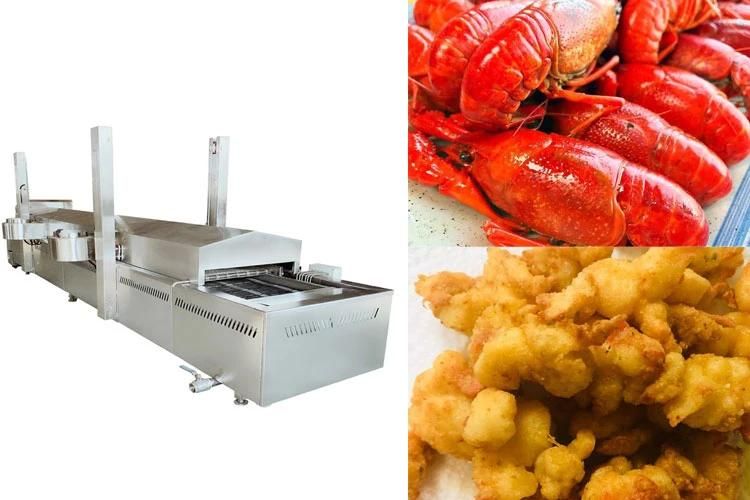

Automatic Continuous Fryer Machinery Conveyor Belt Crayfish Frying Machine



 1. -Machine Introduction

Automatic Continuous Frying Machine is made of food grade stainless steel, consists of lifting system, conveying system, gas heating system, blowdown system, oil circulation system, smoke exhaust system and electric control system.


Features&Advantages of the continuous fryer:

1)Frying machine is suitable for continuous food production with high output.

2)The products are layered between upper and lower mesh belt so as to avoid
floating when they are fried in frying oil.

3)The transmission system of the frying machine is designed as frequency
stepless speed regulation, this can help the operator to control the frying
time freely.

4)The equipment is equipped with automatic lifting system, help the mesh belt
to be cleaned more easily.

5)Automatic scraping system can continuously take away the oil residue produced
in the frying process from the bottom, this can keep the frying oil clean and
extend the service life of frying oil.

6)Multi group temperature control system, can save more electricity consumption.

7)Unique temperature control panel, make operating easy, simple and safe.

The conveyor belt can be customized according to the size of the nuts.


We provide the following frying equipment:
Potato chips frying machine;
French fries frying machine;
Walnut frying machine;
Fish frying machine;
Tofu frying machine;
Beans frying machine;
Chicken nuggets frying machine;
Chicken feet frying machine;
Peanut frying machine;
Porkskin frying machine;
Onion rings frying machine;
Samosa frying machine;
Eggplant frying machine;
Namkeen frying machine.





Features:
1. The frying basket will automatically turn out of the pan and return to the pan, and the oil can be drained automatically during the pan, and the draining time can be adjusted.
2. The heating method adopts stainless steel electric heating tube.
3. Choose DN50 large-diameter ball valve, and the cone-shaped bottom of the pot discharges completely and is not easy to be blocked and is easy to clean.
4. The discharge port of the frying basket is equipped with a material receiving device to ensure that the material is completely poured out.
5. Automatic temperature control electrical appliances are equipped with emergency stop, short circuit, overload, and grounding functions. The pot body fiber cotton keeps warm to prevent scalding.



2. -Technical Data


Model	TSZD-40
Structure	Deep Frying Oil
Overall size	4000*1680*1900mm
Effective size	2800*520*90mm
Working oil capacity	550L
Voltage/frequency	380V/50HZ
Total power	103KW

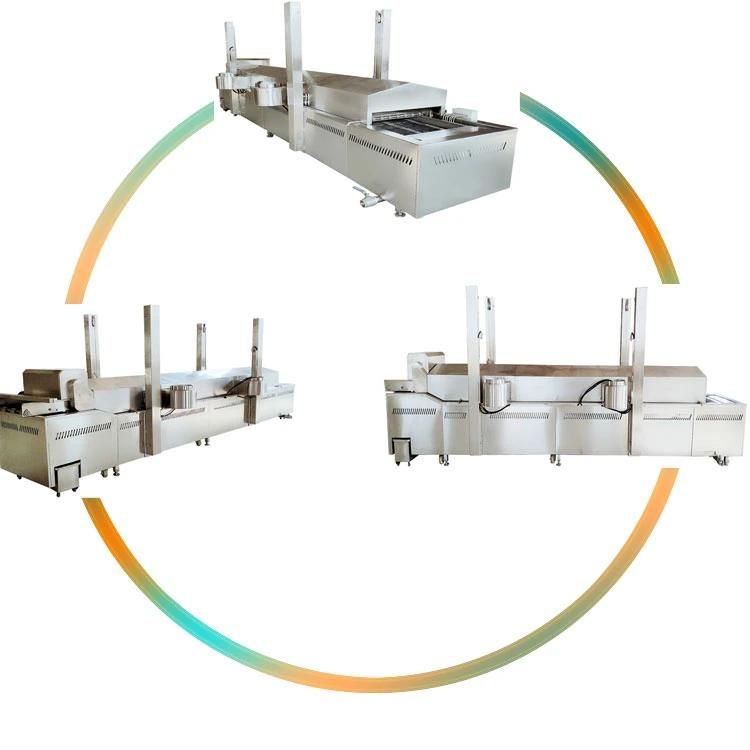

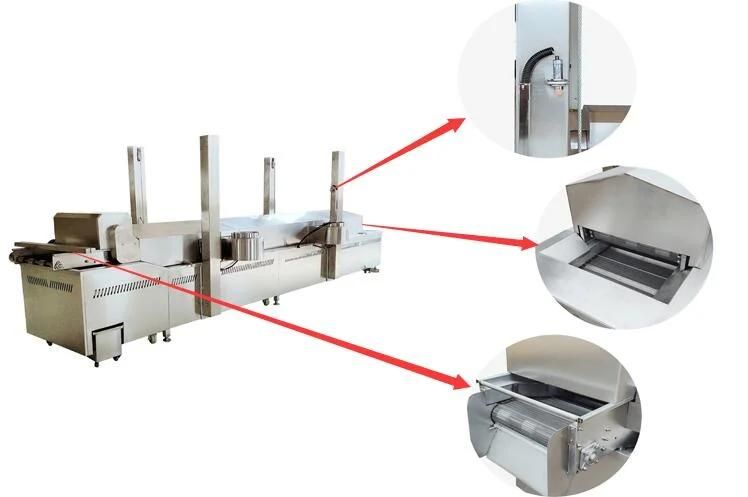

3. -Details




4. -Suitable For Products

In addition to deep-frying farsan, groundnuts,fish ball, tofu, onion, plantain chips, pork skin, port, prawn cracker, this frying machine can also be used for frying nuts such as almonds, sunflower seeds, broad beans, green beans, chicken, fish, chips,
and other snack foods, etc.

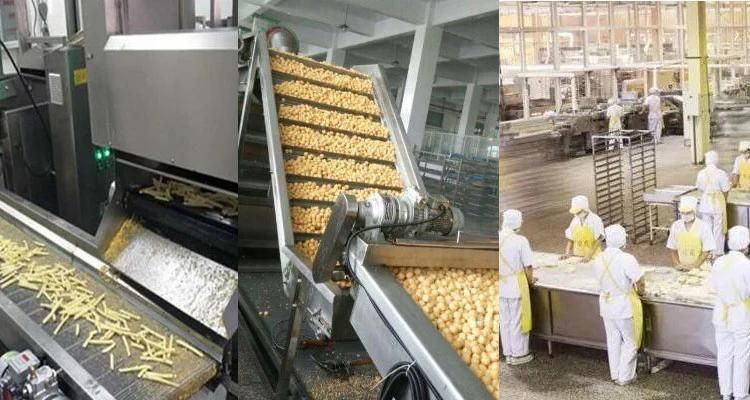

5. -Using Scene

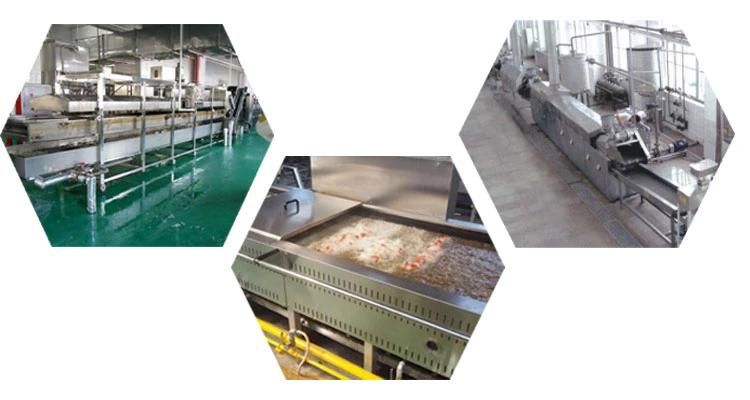

6. -Applications

The equipment is suitable for canteens, central kitchens, fast food restaurants, meat food factories, snack food factories.



7. -Company Profile

Zhucheng Tianshun Machinery Co., Ltd. is a modern food machinery manufacturer integrating R&D, manufacturing, marketing and after-sales.

Main products including food processing machinery, including:

Vegetable/fruits washing machines;
Vegetable peeling machines;
Frying machines;
Coating&blender equipment;
Flavouring machines;
Blancher;
Hot/cool air drying machines;
Vacuum packaging machines;
Vegetable/fruits cutter;
Pasteurizer equipment;
Vacuum fryer;
Freeze dryer;
Liquid nitrogen freezer;
Complete production lines,potato chips/french fries production line,plantain chips line,vegetable/fruits processing line,etc.

They are mainly used for processing vegetable, fruits, pickled foods, chicken, meat, seafood, and so on. All of the products could be customized produce in individual or a complete line.




8. -Our Clients



9. -Packing And Shipment




10. -FAQ


Q1.Could we visit your factory to check the machine carefully and closely?

A:Welcome to our facotry,will provide machines testing service,face-face discussing,turnkey project design solution.


Q2.How long is your machine's guarantee time?

A:1 year without normal wear parts,machine itself life guaranteed.


Q3.If we have very special request for the complete production line,could you help me to do the design?

A:Experienced mechanical designer customized-design provided.


Q4.If we show you our layout of factory,can you help to design the whole process line?

A:Layout design service provided after received customer's factory layout size.


Q5.If we have samples of new products,can you help to analysis and design the machine?

A:Yes,our technical department can help to analysis,design and test the new products based on the specific requirements you provided.
