• Model NO.：rice milling machine
• Press Series：Fourth
• Condition：New
• Customized：Customized
• Capacity：According to Customers′ Need
• Size：According to Capacity
• Factory Visiting：Yes
• Machine Test：Supported
• Transport Package：Seaworthy Wood Case
• Specification：CE, ISO, SGS, CCC
• Trademark：hnly
• Origin：Jiaozuo of Henan Province
• HS Code：8437800000
• Production Capacity：800 Sets,Year

Basic Info.

Model NO. rice milling machine Press Series Fourth Condition New Customized Customized Capacity According to Customers′ Need Size According to Capacity Factory Visiting Yes Machine Test Supported Transport Package Seaworthy Wood Case Specification CE, ISO, SGS, CCC Trademark hnly Origin Jiaozuo of Henan Province HS Code 8437800000 Production Capacity 800 Sets/Year

Product Description

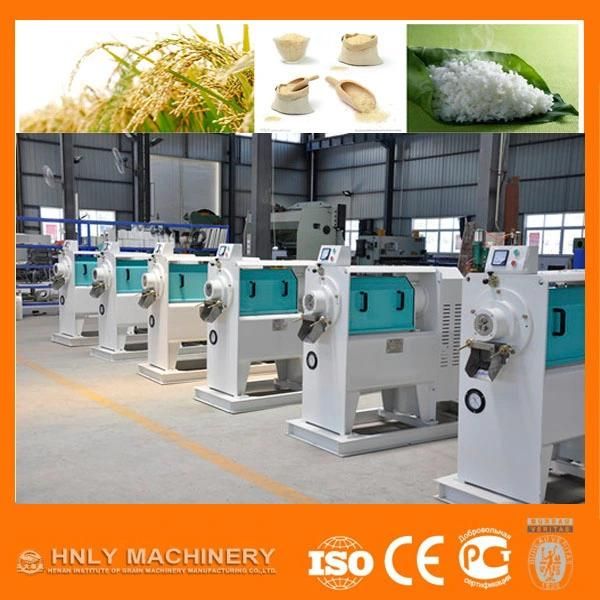

Factory Offer Best Price Complete Set Rice Milling Machine,flour milling machine
Modern rice milling processes consist of:

Stage	Function
Pre-cleaning	Removing all impurities and unfilled grains from the paddy
Husking	Removing the husk from the paddy
Husk aspiration	Separating the husk from the brown rice/unhusked paddy
Paddy separation	Separating the unhusked paddy from the brown rice
De-stoning	Separating small stones from the brown rice
Whitening	Removing all or part of the branlayer and germ from the brown rice
Polishing	Improving the appearance of milled rice by removing remaining ran particles And by polishing the exterior of the milled kernel
Sifting	Separating small impurities or chips from the milled rice
Length grading	Separating small and large brokens from the head rice
Blending	Mix head rice with predetermined amount of brokens, as required by the Customer
Weighing and bagging	Preparing milled rice for transport to the customer

Flow diagram of a modern rice mill:
The flow diagram below represents the configuration and flow in a typical modern rice mill.
1 - paddy is dumped in the intake pit feeding the pre-cleaner
2 - pre-cleaned paddy moves to the rubber roll husker:
3 - mixture of brown rice and unhusked paddy moves to the separator
4 - unhusked paddy is separated and returned to the rubber roll husker
5 - brown rice moves to the destoner
6 - de-stoned, brown rice moves to the 1st stage (abrasive) whitener
7 - partially milled rice moves to the 2nd stage (friction) whitener
8 - milled rice moves to the sifter
9a - (for simple rice mill) ungraded, milled rice moves to bagging station
9b - (for more sophisticated mill) milled rice moves to the polisher1
10 - Polished rice, will move to length grader
11 - Head rice moves to head rice bin
12 - Brokens moves to brokens bin
13 - Pre-selected amount of head rice and brokens move to blending station
14 - Custom-made blend of head rice and brokens moves to bagging station
15 - Bagged Rice moves to the market
A - straw, chaff and empty grains are removed
B - husk removed by the aspirator
C - small stones, mudd balls etc. Removed by de-stoner
D - Coarse (from 1st whitener) and fine (from 2nd whitener) bran removed from the rice grainduring the whitening process
E - Small brokens/brewer's rice removed by the sifter

Packaging
Packaging: All machines covered by plastic film firstly and then packed in wooden case to best protect the machine during long time transportation.



Shipping
Shipping: All machines will be sent by sea, if you need other kind of transportation, please inform us in advance. And all machines would be shipped in 7 days after the receipt of payment. Before and after shipping, we will take photos of machines and send photos to client.



Our Services
1. One year quality warranty for the machine and spare parts
2. Overseas engineers service for installation
3. Whole-life after-sales service and free consultation
4. Customized requirements available
5. Technician guide at the site.
6.24Hr online service




Company Information
1. About usHenan Institute Of Grain Machinery Manufacturing Co., Ltd. Is established driven by the academy of Henan University of Technology. As a large joint-stock enterprise integrating technology, manufacture and sales, our company is specializing in the production of grain and oil machinery, agricultural and sideline machinery. Cooperating with Henan Mechanical Design and Research Institute and Henna University of Technology (Former Zhengzhou Grain College), Henan Institute Of Grain Machinery Manufacturing Co., Ltd. Has carried out the research and application of oil machinery, food machinery, grain machinery, construction machinery, and feed machinery, etc.
We provide a turnkey project of our machinery, including special design, installation, commissioning and training workers.


2. Why choose us
---Advanced equipments, good quality
---Professional skills, all-related services
---High quality and efficiency technology
---Complete production line, quick delivery
---The biggest grain and oil machine manufacturer and exporter in China
---Exporting to more than 30 countries and regions




FAQ:
1. Q: Are you the factory?
A: Yes, We are a professional manufacturer for several years.

2. Q: Where is your factory located?
A: Our factory is located in Jiaozuo, Henan Province.

3. Q: How about the INSTALLATION?
A: Engineers available to service machinery overseas, including installation, commission and training, etc.

4. Q: Can your company accept the customized product?
A: Yes, OEM &ODM service is available. We can make the products according to your size, design, color, It will be better if you can send us the product pictures for our reference.

5. Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.

Any questions, please don't hesitate to contact us!
