• Model NO.：GY-500
• Trademark：Genyond
• Origin：China

Basic Info.

Model NO. GY-500 Trademark Genyond Origin China

Product Description

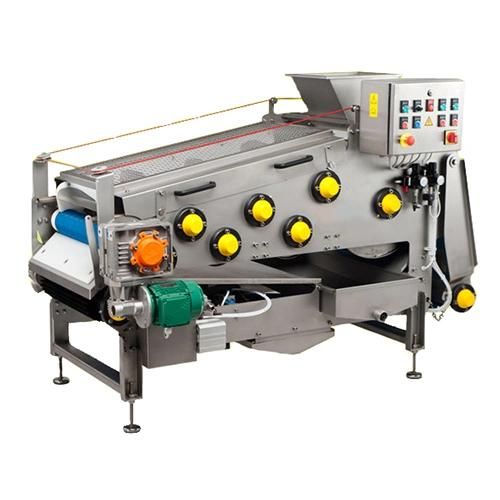

GY-500 Belt Type Juice Extractor


Application:
This equipment is suitable for the juice extraction industry of Chinese medicine, berries, pome and various fruits and vegetables. This equipment is very suitable for universities, research institutes and laboratories of enterprises and institutions as well as various fruit juice production enterprises.

Features:

1. High efficiency of equipment use: This equipment is independently developed, designed, manufactured, installed, and debugged by our company. It has made a qualitative change on the basis of the existing belt juicer, both in terms of structure and pressing method. Changes were made. The original belt-type juicer generally has a juice yield of 35%-50%, while our company's belt-type juicer has a juice yield of 70%-80%, which greatly improves its juice yield and can bring huge economic benefits to the production enterprise. interest.
2. Easy to clean equipment and materials: This equipment uses a four-bar linkage and high-pressure nozzle to continuously clean the filter bag of the equipment. First, it is connected with high-pressure cleaning water and sprayed evenly on the filter bag through the high-pressure nozzle, and then the four is driven by the motor. The linkage mechanism causes the nozzle to move back and forth on the filter bag to achieve continuous system cleaning of the filter bag without dead ends. This ensures that the filter bag has no blind holes, thereby ensuring the full operation of the equipment, and greatly improving its juice yield and production efficiency.
3. Stepless setting of pressing force: The basic working principle of this device is to achieve a predetermined pressure by tightening the airbag by high-pressure air. The high-pressure air is transmitted to the airbag cylinder through the pressure regulating valve to achieve the tightening of the tensioner. Because the pressure of our input air source can be displayed on the pressure gauge, we can adjust the pressure regulating valve according to the different squeezed materials to achieve different squeezing effects and realize its infinite setting of the squeezing force.
4. Automatically adjust the deviation device: This device uses the cylinder to adjust the roller with the deviation device to achieve the function of automatically correcting the deviation. This function can automatically ensure that the press filter bag is always in a normal working state, without the participation of external forces such as manual labor. This device plays a vital role in the operation of the entire equipment.

Specification(GY-500):
1. Total power of equipment: 0.93KW.
2. Main motor power: 0.75KW
3. Motor power for cleaning filter bag: 0.18KW
4. Equipment working voltage: 380V
5. Compressed air pressure: 6.5KPa
6. Main body material: SUS304
7. Some materials: PTFE
8. Cross-sectional area of feeding port: 1155cm2
9. Width of press filter bag: 480mm
10. Interlayer working pressure: 0.3MPa;
11. Number of rotating shafts of the whole machine: 11
12. Bearing model: UCFC206
13. Number of bearings: 20
14. Cylinder model: ACQ100*60B
15. Number of cylinders: 1
16. Airbag cylinder model: M31102
17. Number of airbag cylinders: 1
18. Machine processing capacity: 500L/h
19. Outer core size: 1800*800*900mm

Equipment configuration list and control system:

No.	Item	Specification
1	Active reduction motor	Power: 0.75KW Voltage: 380V  Reduction ratio: 200
2	Clean reduction motor	Power: 0.18KW Voltage: 380V  Reduction ratio: 40
3	Cylinder	ACP100*60B
4	Mechanical valve	TH-5-1/4B
5	Bearing	UCFC206
6	Airbag cylinder	M31102
7	Air cleaner	GFR30008AJC3
