• Model NO.：50L-6000L
• Transport Package：Wood Box
• Specification：50L-10000L
• Trademark：Tianlong
• Origin：Wenzhou, China
• Production Capacity：1000 Sets Per Month

NO.SpecificationConical angleInner dia/ overall height mmCorrespond17BBL FST60°1000-2418/1000-25208HL FST210BBL FST60°1000-2900/1100-2720/1200-2400/1200-258012HL FST315BBL FST60°950-3955/1100-3745/1200-3170/1300-3100/1400-2680/1400-279017HL FST420BBL FST60°1200-4105/1300-3490/1350-3665/1400-3170/1500-334034HL FST5
 30BBL FST60°1500-4905/1600-3860/1700-362535HL FST80°1700-3370 105°1700-3090 640BBL FST60°1700-4255/1800-3960/1800-4050/1900-3580/1900-3860/2000-344046HL FST750BBL FST60°1700-4855/1800-4620/1900-436058HL FST860BBL FST60°1800-5150/1900-4860/2000-4660/2100-458070HL FST90°2100-3750 980BBL FST60°2000-5580/2100-533593HL FST90°2200-4400 10100BBL FST60°2100-6140116BBL FST65°2300-5250 75°2200-5540 70°2300-5060 11105BBL FST60°2100-6300/2400-5180139HL FST75°2100-5895/2400-5000 12120BBL FST60°2100-7000/2200-6400/2200-6600/2700-5400139HL FST90°2100-6380

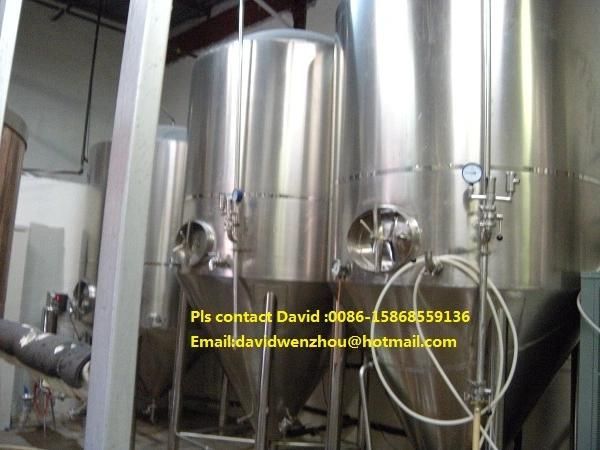

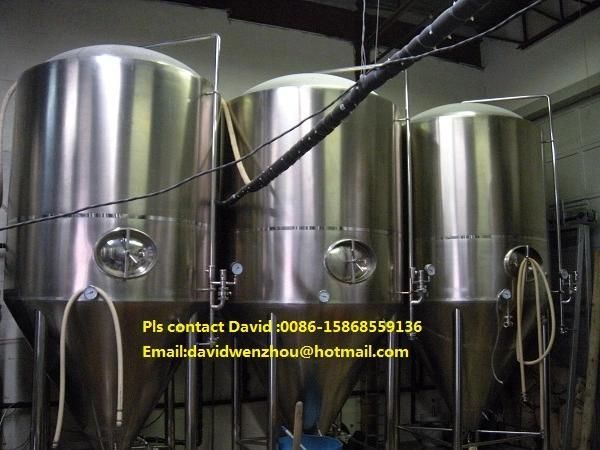

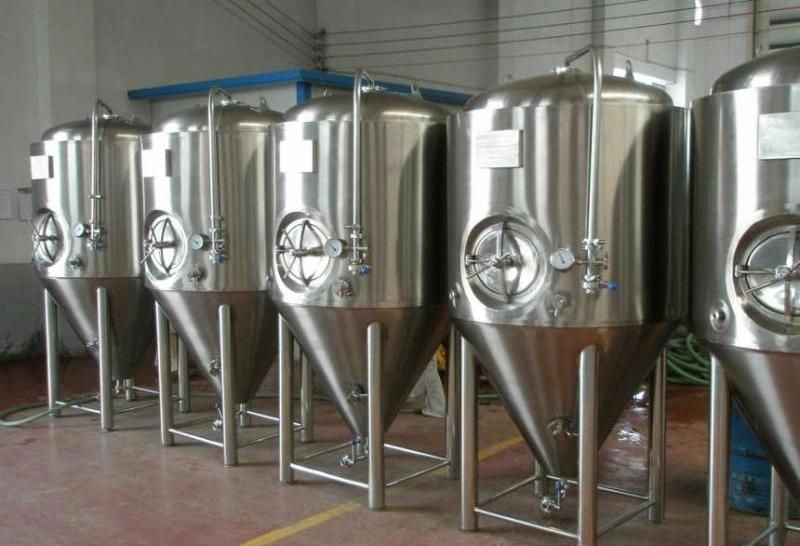

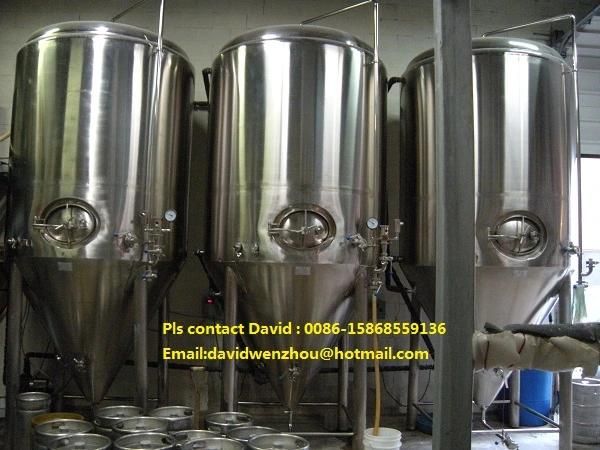

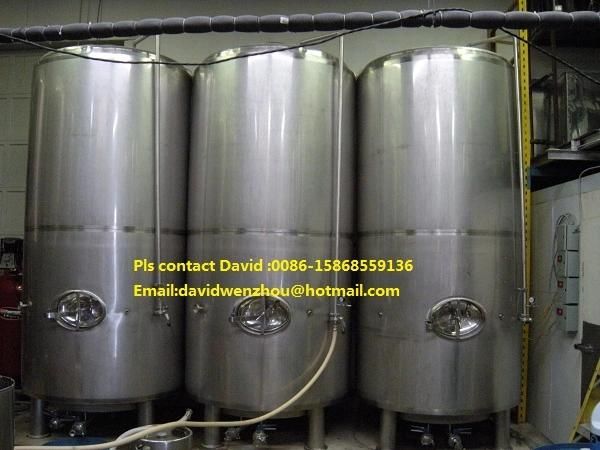

Our stainless steel beer tank including stainless steel conical beer fermenter and brigh beer tank.

These tanks from 50L up to 20000L. And we could make modifications on our standard beer tank according to customers requirement.



Features of  pressure beer tank

Interior Shell: SUS304 full welded; TH=3mm

Exterior Shell:SUS304 full welded; TH=2mm

100% TIG welding with pure argon gas shield

Interior Finish: Overall polishing to 0.4-0.6 μm without dead corner

Insulation: Polyurethane; TH=80mm

Jacket: Dimpled plate on cone and side

Dish top and bottom

manway on top or on the side

Carbonation port with stone (Option)

Mechanical relief valve 2 bar on CIP arm

3 or 4pcs completely SUS304 heavy duty legs with leveling pad and legs support

Complete valves, fittings and all parts

Details contact David  phone 0086-15868559136
