• Model NO.：KQ Series
• Voltage：All
• Customized：Customized
• Name & Description：CE Certificate Concial Stainless Steel Mixing Blen
• Stainless Steel Degree：Stainless Steel 304 ,316
• Agitator Speed：36rpm, 48rpm, 960rpm
• Heating and Mixing Tank：for Heating and Mixing Liquid, Liquid and Powder
• Name：Jacketed Tank Price
• Size：50L to 10000L
• Heating：Electric ,Steam,Gas
• Wall：Double ,Jacketed
• Certification：CE & ISO
• Orign：Shanghai China
• Packing：Wooden Box
• Motor Brand：Siemens ,ABB ,China Brand
• Delivery：10-15 Days
• Cleaning：CIP Spray Ball
• MOQ：1set
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai China
• HS Code：8479820090
• Production Capacity：200L To3000L

Basic Info.

Model NO. KQ Series Voltage All Customized Customized Name & Description CE Certificate Concial Stainless Steel Mixing Blen Stainless Steel Degree Stainless Steel 304 /316 Agitator Speed 36rpm, 48rpm, 960rpm Heating and Mixing Tank for Heating and Mixing Liquid, Liquid and Powder Name Jacketed Tank Price Size 50L to 10000L Heating Electric /Steam/Gas Wall Double /Jacketed Certification CE & ISO Orign Shanghai China Packing Wooden Box Motor Brand Siemens /ABB /China Brand Delivery 10-15 Days Cleaning CIP Spray Ball MOQ 1set Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai China HS Code 8479820090 Production Capacity 200L To3000L

Product Description

2000L 4000L Stainless Steel High Speed Homogenizing Agitator Tank  Price
Steam Heating Tank Mixing Tank Ice Cream Tank Maturation Tank

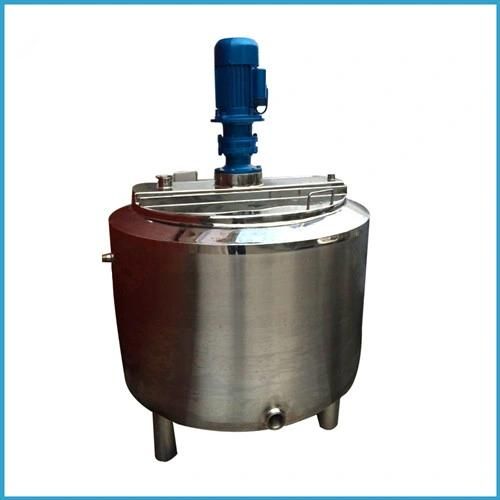

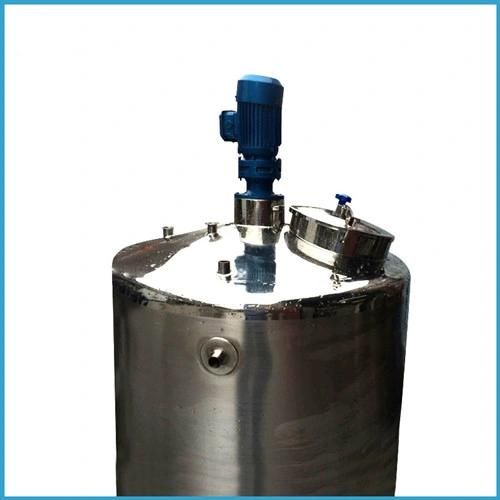

CE Certificate Concial Stainless Steel Mixing Blending Tank For Food Industrial




Three-layered cooling and heating tank is mainly used for storing, mixing and heating liquid. It's the ideal mixing, heating and cooling equipment for chemical, food and beverage factory and pharmacy industry.
We can design the products according to your special request.
OEM is welcome too.

1

Sugar mixing tank

TankCapacity(L)	200, SS304	300, SS304	500, SS304	1000, SS304
REV	36r/min	36r/min	36r/min	36r/min
Electric motor of the agitator	0.55KW, 380V, 50Hz	0.75KW, 380V, 50Hz	0.75KW, 380V, 50Hz	1.1KW, 380V, 50Hz
Heating Area(M2)	0.9	1.1	1.9	4.5
Material Input/output(DN mm)	38	38	38	50
OUTSIDE DEMENSION(L*W*H)mm	900*900*1600	1000*1000*1500	1100*1100*1700	1400*1400*1750
GROSS WEIGHT(KGS)	150	200	300	450

Steam vessel 500 litres

Material: SS304
* Type: With Jacket and insulation
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
*PU INSULATION WALL: 50mm
* Outer shell thickness: 1.5 mm
* Appearance: Ellipsoidal head top and down manhole and pipe will be as the picture you sent to us
* Accessories:
(1) Manhole covers
(2) Charging/discharging hole at the bottom,
(3) CIP Cleaning ball
(4) Steam heating tube

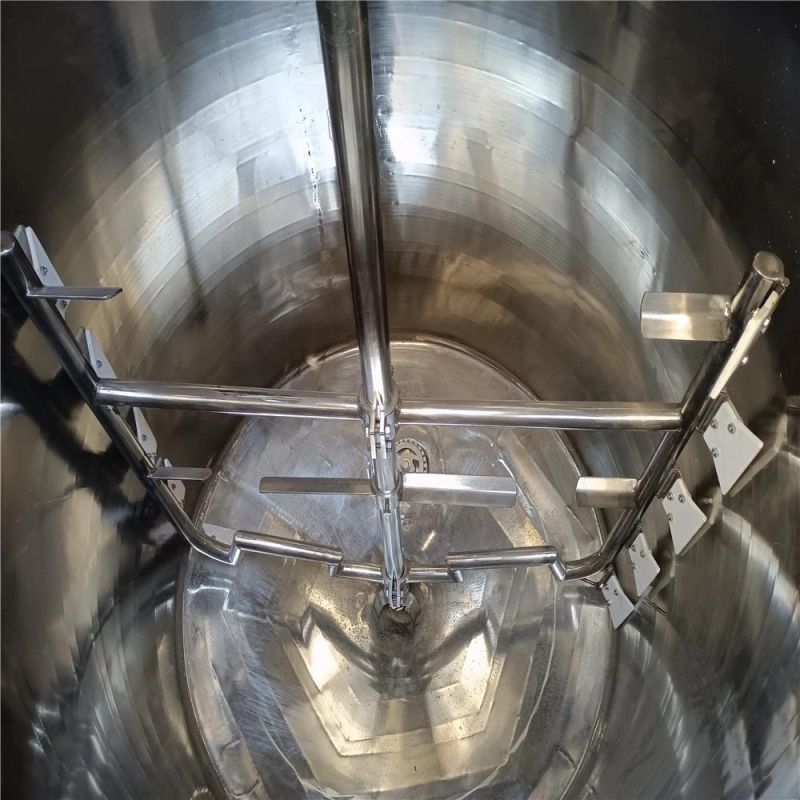

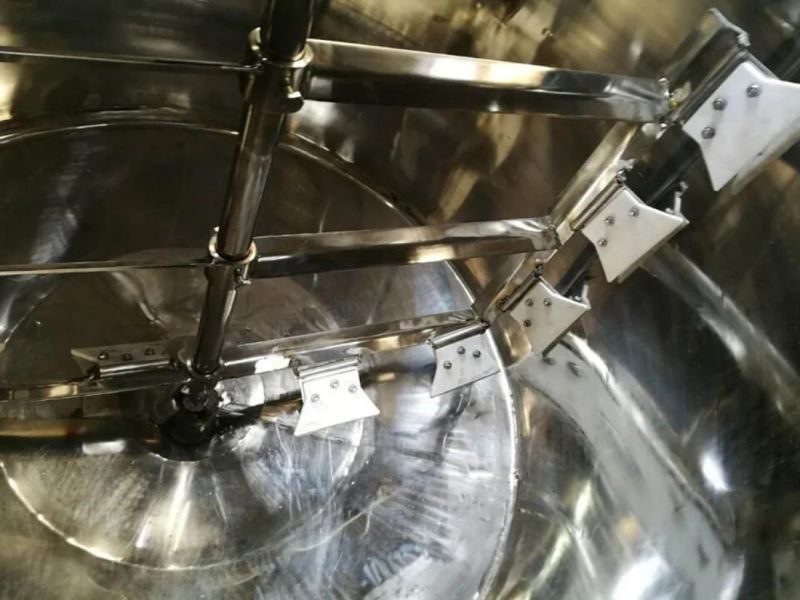

(5) Rack & blender etc.
(6) the electric motor
Agitator blending tank
1. More than 10 years experience
2. Capacity: 100-5000L
3. Manufacturer
4. Custom-made solution

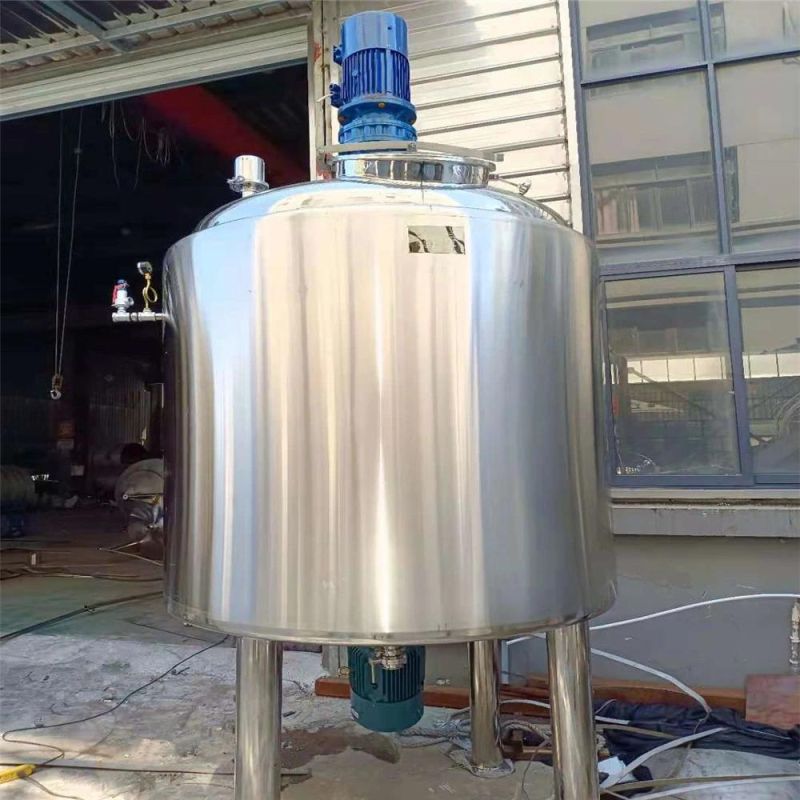

Steam heating chemical agitator tank blending tank
PME Multi-function Blending Reactive Mixer/ vacuum homogenizer mixer





Product Name: Steam Heating Tank Mixing Tank Ice Cream Tank Maturation Tank
Vertical mixer, Blending tank, Mixing vessel
Applicable range:
1. Used as liquid storage tank, liquid composing tank, temporary storage tank and liquid blending tank etc.
2. Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Structure characteristics
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Configuration of tank
1. Quick open manhole.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly.
6. Thermometer (According to customer requirements ).
7. Ladder (According to customer requirements).
8. Side blender.
9. Liquid level meter and lever controller (According to customer requirements).
10. Eddy-proof board.

CE Certificate Concial Stainless Steel Mixing Blending Tank For Food Industrial
It can be made according to special requirements of customers.
2000L 4000L Stainless Steel High Speed Homogenizing Agitator Tank  Price.
