• Model NO.：WY-500
• Capacity：200L-10t
• Material：Stainless Steel 304 , 316
• Tank Structure：Tri-Wall , 3 Layer
• Isolation Material：Poly Urethane Foma , Rock Wool
• Way of Discharge：Drainage From Side , Bottom
• Tank Top：with Hinged Lid , Manhoe
• Transport Package：Wooden Case
• Origin：Wenzhou China

Basic Info.

Model NO. WY-500 Capacity 200L-10t Material Stainless Steel 304 / 316 Tank Structure Tri-Wall / 3 Layer Isolation Material Poly Urethane Foma / Rock Wool Way of Discharge Drainage From Side / Bottom Tank Top with Hinged Lid / Manhoe Transport Package Wooden Case Origin Wenzhou China

Product Description

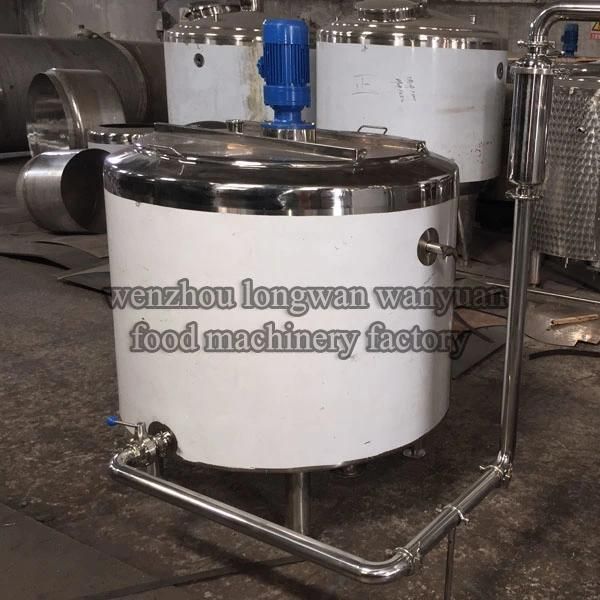

500L low temperature batch pasteurizer for yogurt and milk and ice cream
Fresh milk batch pasteurizer / juice pasteurization tank
1. Cheese milk pasteurizer fresh milk pasteurizer
2. Continuous pasteurizer
3. Pasteurizer temperature 65 to 95 degree

Offer 300L pasteurizer for milk, cheese and other dairy product. Pasteurizer temperature can be controled from 65 degree C to 95degree. As a manufacture, wenzhou longwan wanyuan food machinery factory can offer you not only 300L pasteurizer, we can also produce 500L batch pasteurizer for you fruit paste, tomato puree production.


Wenzhou wanyuan food machinery factory- - Batch pasteurizer/pasteurization tank

Here below is batch pasteurizer(pasteurization tank) specifications:

cooling and heating tank with scraper agitator or with paddle mixer

Effective  Volumn(L)	Dimension of  Tank(mm*mm)	Total Height (mm)	Diamension  of inlet&outlet (mm)	Heat   preservation  layer(mm)
500	840*1000	2250	38	60
600	920*1000	2300	38	60
700	990*1000	2300	38	60
800	950*1220	2500	38	60
900	1010*1220	2500	38	60
1000	1060*1220	2550	51	60
1500	1160*1500	2850	51	60
2000	1340*1500	2900	51	60
3000	1410*2000	3400	51	60
4000	1620*2000	3450	51	60
5000	1810*2000	3500	51	60
6000	1980*2000	3550	51	60
7000	1930*2440	4000	51	60
