• Model NO.：TSXK-60
• Origin：China
• HS Code：8438600000
• Production Capacity：1000pieces,Year

Basic Info.

Model NO. TSXK-60 Origin China HS Code 8438600000 Production Capacity 1000pieces/Year

Product Description

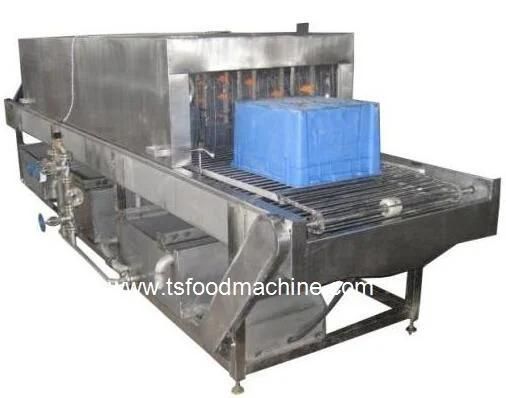

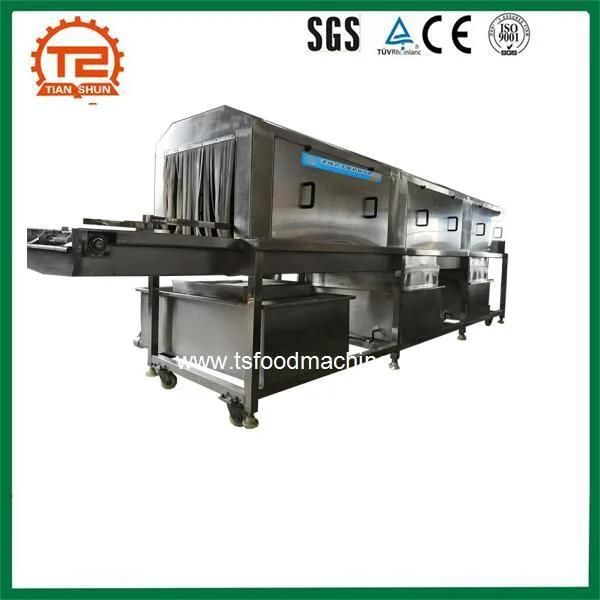

1.-Best Price Crate Washer Plastic Crate Washing Machine

Crate Washer Plastic Crate Washing Machine is composed of reducer, water pump, cylinder, bracket, roller, spray pipe, hopper, cover, water tank, valve, drive shaft, motor frame, electric control switch and other components.

The principle of the basket washing machine:

The washing machine works with three phase asynchronous motor, when the trays/crates are put on the guide rail, the high pressure sprinkler in the water tank sprays the cleaning fluid, to remove the impurities in the trays/crates, then the impurities fall into the water tank together with the cleaning liquid.


The principle of equipment:
1. The machine works with high pressure spray as the washing method. The main cleaning agent is about 80 centigrade hot water.

2. Washing system: Hot alkaline water section, hot water spray section, room temperature water spray section, disinfectant water spray section, drying section.The disinfection water spray section and drying section can be allocated according to customer requirements.

3. All circulating water tanks adopt the horizontal stainless steel centrifugal pump, which spray cycle water to wash the materials from the upper and lower, left and right four directions at the same time.




2.-Applications of Crate Washer Plastic Crate Washing Machine

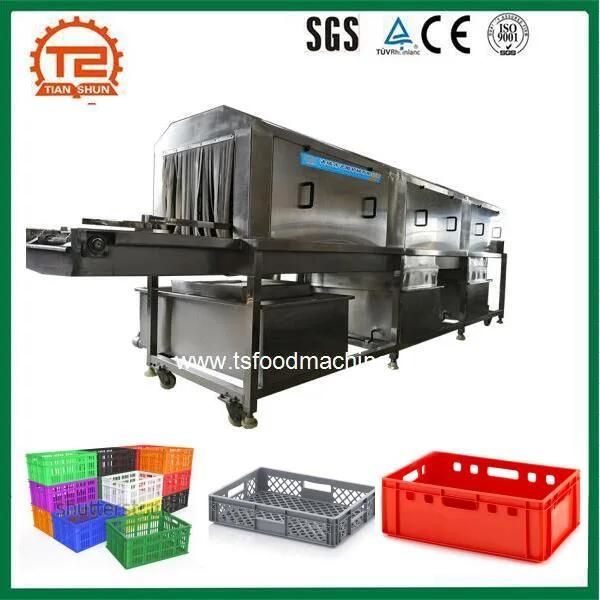

For cleaning and sterilizing all kinds of turnover basket,dishes,boxes and so on.





3.-Technical Index of Crate Washer Plastic Crate Washing Machine



No.	Item	Value
1	Model	TSXK-60
2	Heating method	Electric heating
3	Sterilization temperature	100 ºC Max
4	Cleaning time(min)	1-10
5	Outline Dimension(mm)	5500*1500*1600
6	Effective Size(mm)	4500*800*600
7	Available Size for Basket(mm)	300-600 Width




4.-Packaging and Delivery

Packaging	With Wrapping film and in wooden case, or according to the customer needs.
Delivery Time	10-15 Working days.
Shipping Type	By sea, railway, etc.





5. -Company Information

Zhucheng Tianshun Machinery Co.,Ltd. has grown into a large, specialized food machinery manufacturing enterprise which integrates R & D and manufacturing. Currently has more than 100 employees, the division of labor is professionalization and specific, there are technical department, after-sales service department, domestic marketing department, international business department, etc. The company has all kinds of welding equipment, machining equipment to meet the needs of different customers.


Main products: Food machinery and complete production lines, including:

Vegetables&fruits cutting machines,
Peeling&washing machines,
Frying equipment,
Air drying machinery,
Blanching&cooking machine,
Food flavoring machine,
Food coating machine,
Vacuum packing machine.

All of them can be designed semi-automatic and full automatic, and widely used for processing varieties of vegetable, fruits, fish, seafood, etc. Some of them have pass the CE certificate. All of them could be customized, and we also provide and design individual machines for customers.
