Combined Oil Mill With Screw conveyor and filter
Henan VIC Machinery Co., Ltd.- After-sales Service:online
- Warranty:1 year
- Type:Efficient Fine Filter Oil Press
- Application:All
- Voltage:380V
- Appearance:Horizontal
Base Info
- Model NO.:6YL-100TF
- Press Materials:All Oil Seeds
- Press Series:Second
- Condition:New
- Customized:Customized
- Feature:with Conveyor and filter
- Stucture:Double Filtering System
- Delivery Time:5days
- Capacity:400-500 KG,H
- Power:18.5+1.5kw
- Transport Package:Wooden Box
- Specification:CE
- Trademark:VIC
- Origin:China
- HS Code:847920000
- Production Capacity:3000PCS,Year
Description
Basic Info.
Model NO. 6YL-100TF Press Materials All Oil Seeds Press Series Second Condition New Customized Customized Feature with Conveyor and filter Stucture Double Filtering System Delivery Time 5days Capacity 400-500 KG/H Power 18.5+1.5kw Transport Package Wooden Box Specification CE Trademark VIC Origin China HS Code 847920000 Production Capacity 3000PCS/YearProduct Description

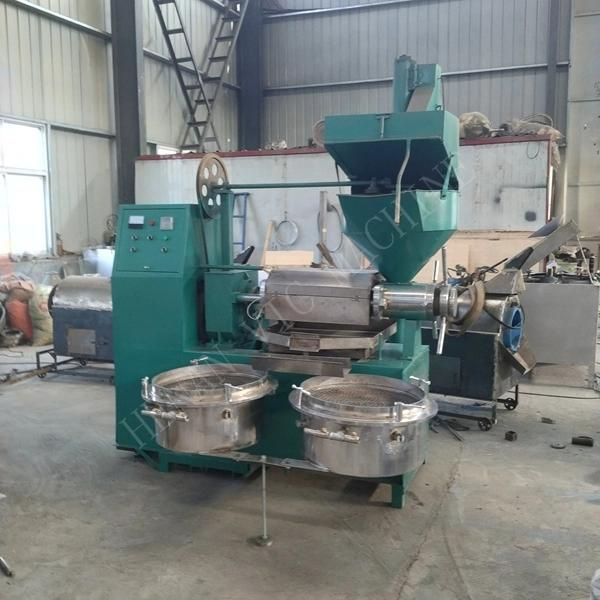

Combined Oil Mill With Screw ConveyerApplication:
6YL-160TF auto conveying oilpress is produced according to customer's requirement about pressing and conveying combined together. This equipment can match with different model screw oil press, it can transport different oilseeds such as rapeseeds, peanut, soybean, sunflowerseeds, teaseeds etc , also can save labor and time with easy operation, the oil seeds is with high oil output rate and high quality oil, its especially suitable for continuous working of small and medium oil factory.
Flow chart:
Feeding materials--- materials into oilpress---filtering---final product
Technical data:
Model | Capacity (kg/h) | Power(kw) | Size(mm) | Weight(KG) |
6YL-80TF | 100-150 | 5.5kw+0.75kw | 1600x1100x1500 | 600 |
6YL-100TF | 200-250 | 7.5kw+0.75kw | 1970x1375x1700 | 1200 |
6YL-120TF | 300-350 | 11kw+1.1kw | 2150x1500x1800 | 1750 |
6YL-160TF | 400-500 | 18.5kw+1.5kw | 2350x1650x1930 | 2100 |
The electric cooker can be matched with the integrated oil press machine to pre-roast the raw materials, then directly conveyed into the oil press machine, this way will increase the oil extraction rate.

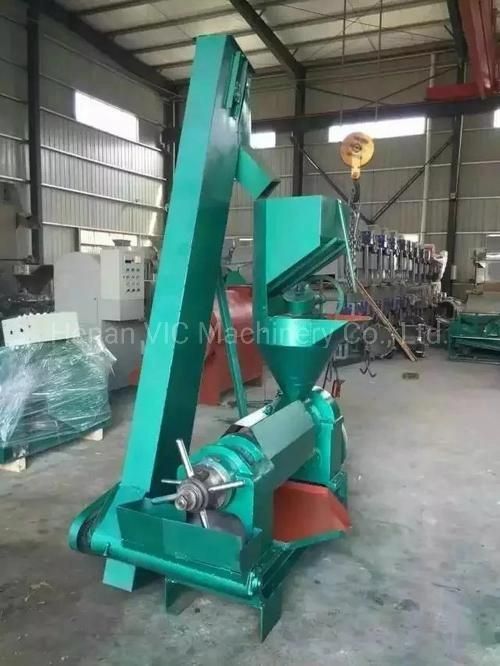

More pictures:

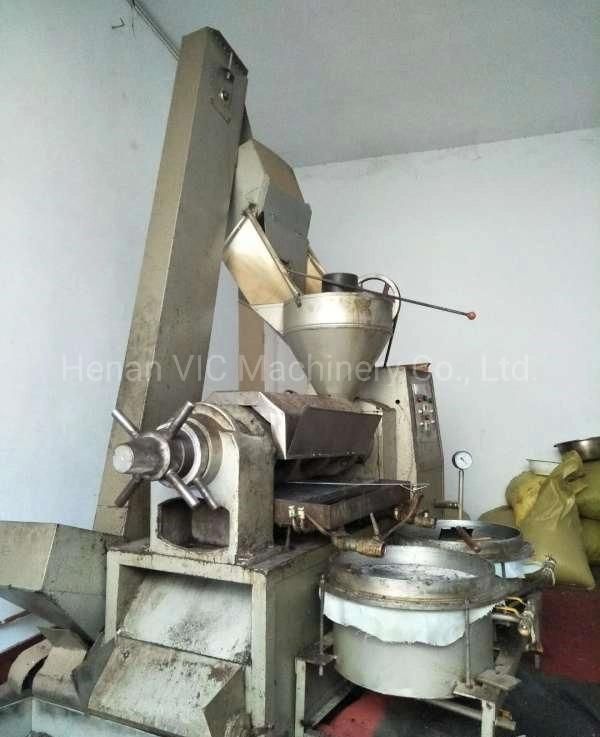

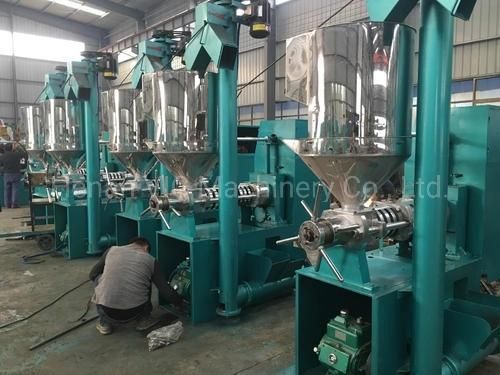

Customer use site

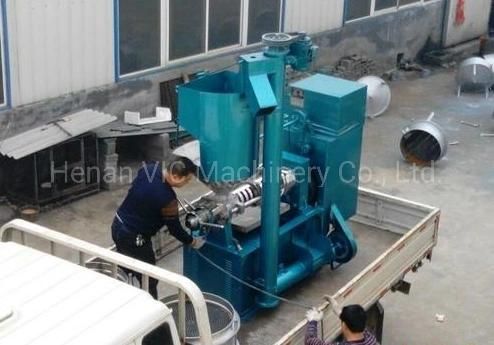

Deliver

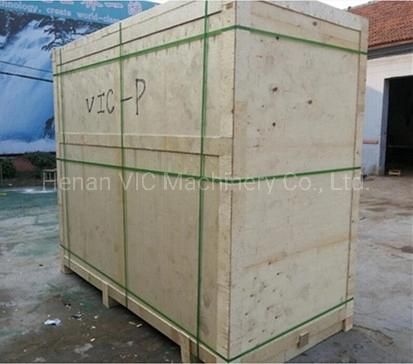

Package

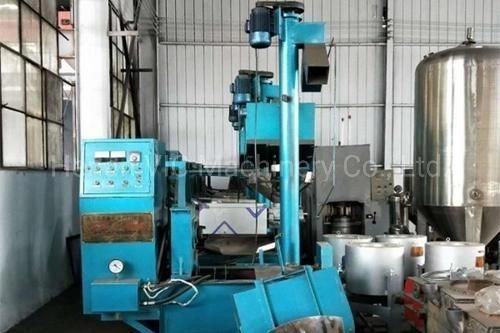

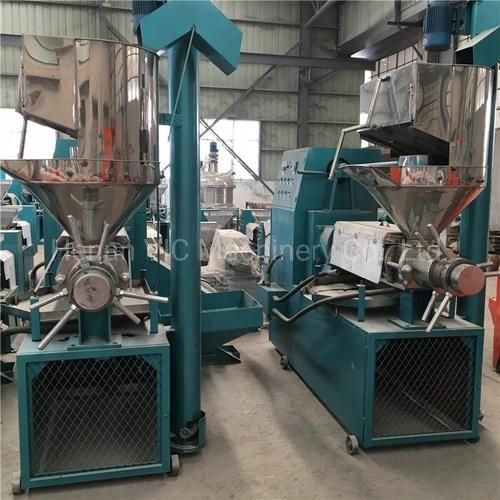

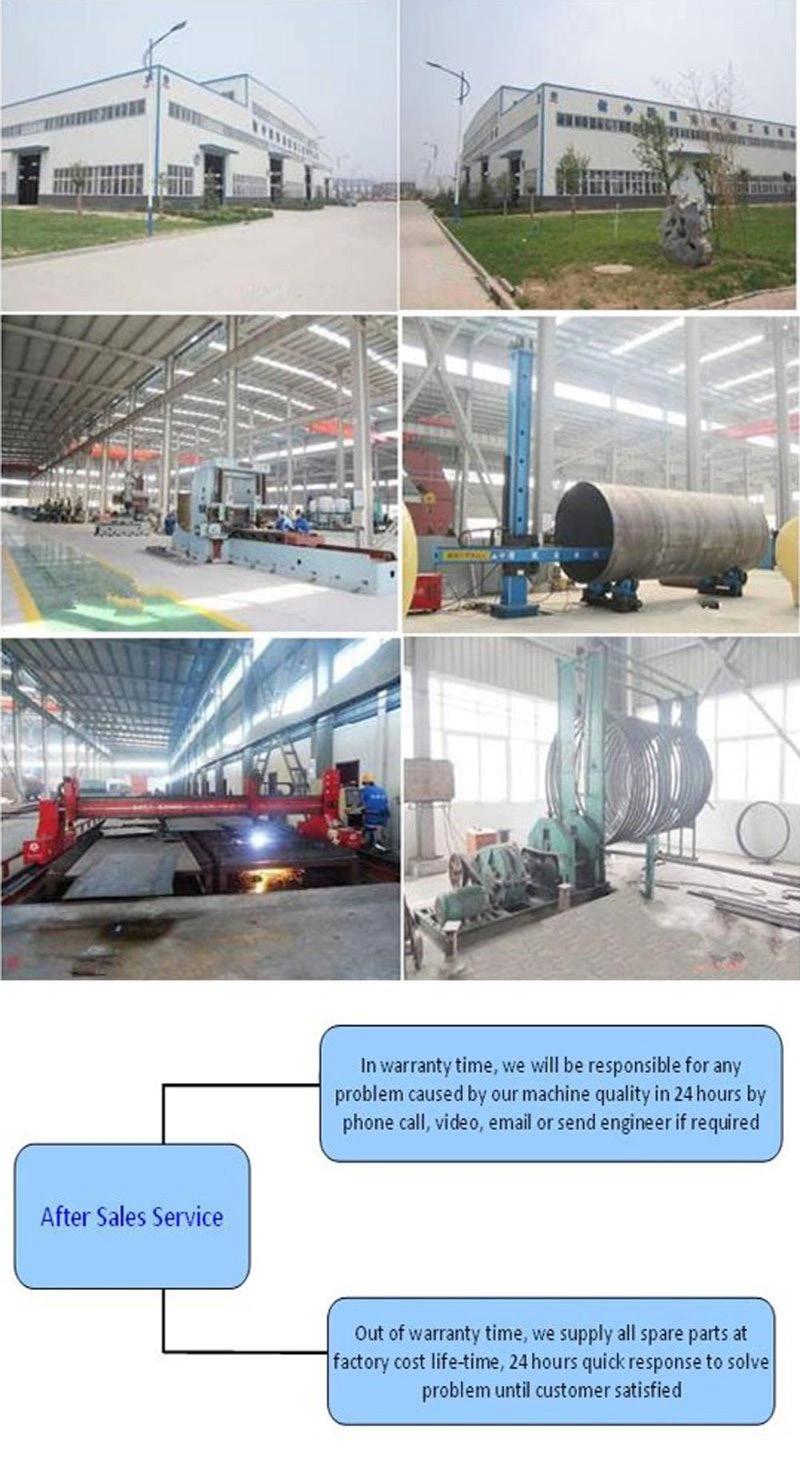

Our factory
