• Gearbox：Sew Brand or Chinese Famous Brand Guotai
• Air Cylinder：Airtac Brand
• Motor：Delta Brand or Chinese Famous Brand or Sew
• Capacity：100-1000kg,H
• Voltage：220-380V,50-60Hz
• Conveyor：400mm,600mm,800mm,1000mm
• Key Selling Points：Long Service Life
• Inverter：Siemens,Schneider
• Machinery Function：N: Press The Dough, Cookies Forming, Bake
• Transport Package：Wooden Cases
• Specification：According to your customized
• Trademark：Skywin
• Origin：Guangdong
• HS Code：8438100010
• Production Capacity：10 Sets,Year

Basic Info.

Gearbox Sew Brand or Chinese Famous Brand Guotai Air Cylinder Airtac Brand Motor Delta Brand or Chinese Famous Brand or Sew Capacity 100-1000kg/H Voltage 220-380V/50-60Hz Conveyor 400mm/600mm/800mm/1000mm Key Selling Points Long Service Life Inverter Siemens/Schneider Machinery Function N: Press The Dough, Cookies Forming, Bake Transport Package Wooden Cases Specification According to your customized Trademark Skywin Origin Guangdong HS Code 8438100010 Production Capacity 10 Sets/Year

Product Description

Products Description
1. Skywin Model 400/600/800/1000/1200/1500 mm, capacity from 100-1500 kg/hr.
2. It is widely available for making all kinds of Cookie(Wire cut Cookie, Deposit cookie, Two color Cookie, There colors Cookie, Center Filling Cookie, Sandwich cream Cookie)
3. Different shape biscuit just need to change the mold, we also can design mold for you according to your requirement.
3.It is made by stainless steel , PLC control ,full automatic ,save labor ,easy to operation ,high quality ,reasonable price to win customer reply and reputation ,we sale oversea
 4.The 400 mm is the smallest one ,for tray type ,it must be baked by rotary oven ,others are connect with tunnel oven.

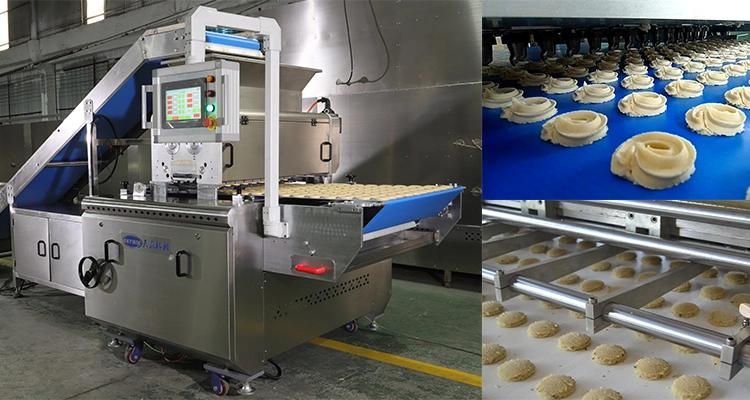

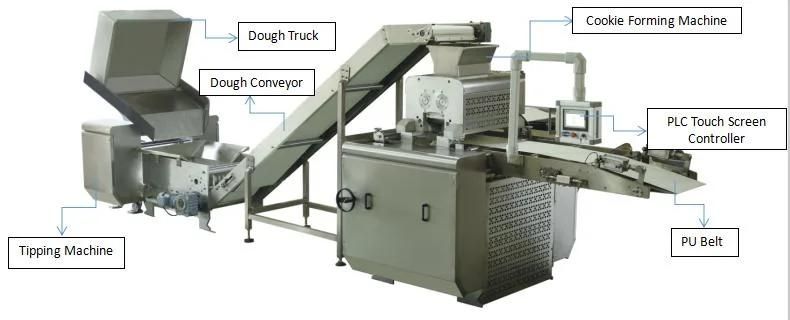

Machine Component:
1.Siemens Brand PLC & Touch Screen Controlled system,
2.Siemens Brand Electric components or Scheider Brand,
3.Chinese Famous Quality Brand GUOTAI Motors&Gearbox;
4.AirTAC brand Penumatic cylinder for belt tension and deflecting adjustment
5.Cotton and PU conveyor belt 1.5-1.8mm
6.Wire mesh belt V type
7.Plates covered hard chrome, thickness 18mm
8.Stainless steel thickness 1.5-2mm





Brand	Skywin	Article	SKY-400/600/800/1000/1200
Warranty	1 Year	Certification	ISO9001/CE
Dimension(L*W*H)	1900 x 1300 x 1600mm	Voltage	380V/220/50HZ
Feeding roller diameter	160mm, with groove	Material	304# stainless steel
Capacity	Wire Cut 800-900kg per hour	Control	Siemens Brand PLC& Touch Screen System
Oven belt width	400mm-1100mm	Producing speed	Cut 90-110times/min, Deposit 50-60times/min
Port	Shunde,China	Payment Terms	L/C,T/T

Model	Length of oven	Output capacity
400mm working width	16-40m	50-300kgs
600mm working width	50m	500-620kgs
800mm working width	50-60m	750-1000kgs
1000mm working width	50-60m	850-1200kgs

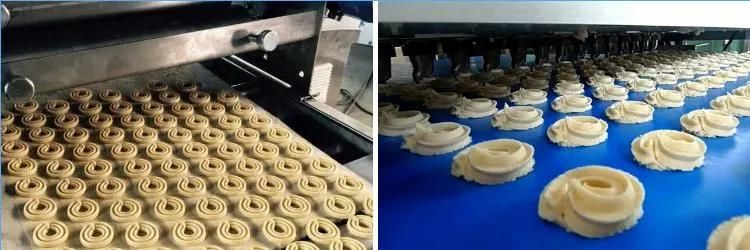

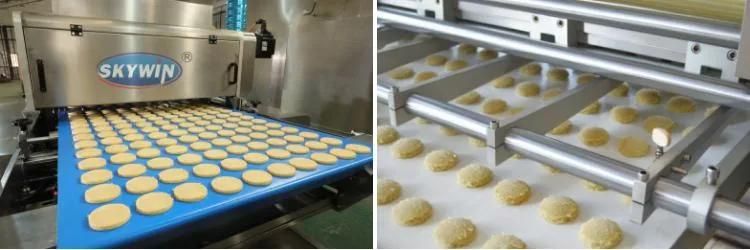

 Wire Cut Cookies Forming

Deposit Cookies Forming

Main Features:

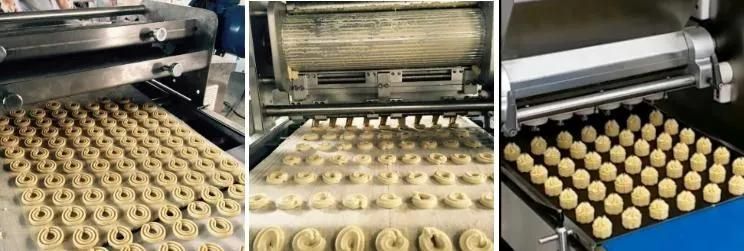

1.Cookies biscuits forming Machine by wire-cut, dropping and dropping with rotation PU conveyor belt, thickness 0.8mm, deflection and tension adjust by air cylinder.2.Air cylinder use famous brand, Gearbox use Chinese famous brand GUOTAI,Feeding and forming use Servo motor, Delta brand.
3.The nozzle is 7pcs (400MM),depositor about 30 times/min,cutter about 40 times/min
4.Hot wind circulation for color biscuit and good taste
5.Low energy cost(save 5% energy),high output(99.99%output).
6.Optional English or other languages screen display, easy and simple operation.
7.The section where the material contact is stainless steel as the body of machine is optional and all out machine have passed the CE Standard.
8.Our biscuit production line has standard line and high-end line for option,the high-end line is fully automated and high output,and all raw materials are the best.

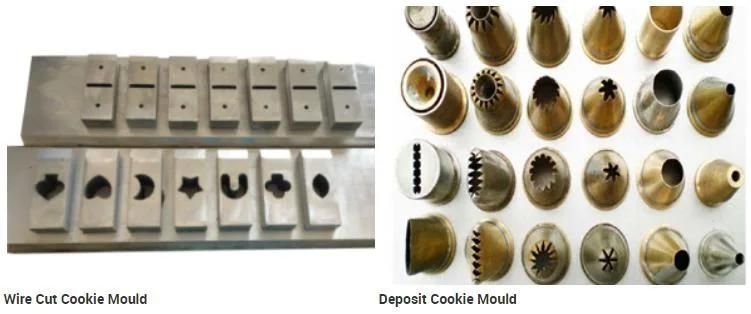

Any mould can be customized and you just only need to change the mold to change the biscuit shape or some type .


We also can  provide recipe!!!


Our regular packaging is multilayer packing, safe transport, shipping by sea:
Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).
Step 2: The plastic cushion packing machine (prevent bump).
Step 3: Plastic film packaging  (to prevent ventilation).
Step 4: Wooden case / frame packaging (easy to transport).
Step 5: Tie the bandage outside of the wooden case (reinforcement overall).
If any special requirements, we will pack it as requested.


FAQ
Q:Are you manufacturer?
A: Yes, we are factory specialized in Biscuit Making Machine, and have group of 30 years experienced engineers, advanced processing equipment.

Q: Why choose us?
A: We are China leading snack food machinery supplier.
Best quality & best service with competitive price.
Engineers available to service machinery overseas.
Machine has One year warranty and whole life after sales service.
Training how to install and use the machine.
Energy saving and manpower saving help you cost less.

Q: Is there a variety of language options for your operating system?
A: We use PLC controller system, it has Russian, English, Chinese, Korean, Arabic and other languages.

Q:How long is your biscuit line?
A:we can design the biscuit line according to the layout of your workshop.

Q: How can we make sure about the machine quality after we put the order?
A:Before delivery, we will send you the pictures and videos for you to check the quality, and also youcan arrange for quality checking by yourself or by your contacts in the third party inspection organization .
