• Customized：Customized
• Application：Popping Boba
• Power：~6.5kw,380V
• Depositng Speed：20~25times,Mins
• Products Weight：0.8g~1.5g
• Temperature and Humidity：<25c, 45~55% Humidity
• Compressed Air Require：0.2m 3 ,Min, 0.4~0.6MPa
• Transport Package：Wooden Case
• Specification：300KG,Hr
• Trademark：SHANGHAI SHINWEI MACHINERY
• Origin：Shanghai
• HS Code：84382000
• Production Capacity：up to 300kg,Hr, About 198nos Ball Each Deposit

Basic Info.

Application Popping Boba Customized Customized Power ~6.5kw/380V Depositng Speed 20~25times/Mins Products Weight 0.8g~1.5g Temperature and Humidity <25c, 45~55% Humidity Compressed Air Require 0.2m 3 /Min, 0.4~0.6MPa Transport Package Wooden Case Specification 300KG/Hr Trademark SHANGHAI SHINWEI MACHINERY Origin Shanghai HS Code 84382000 Production Capacity up to 300kg/Hr, About 198nos Ball Each Deposit

Product Description

Product Description

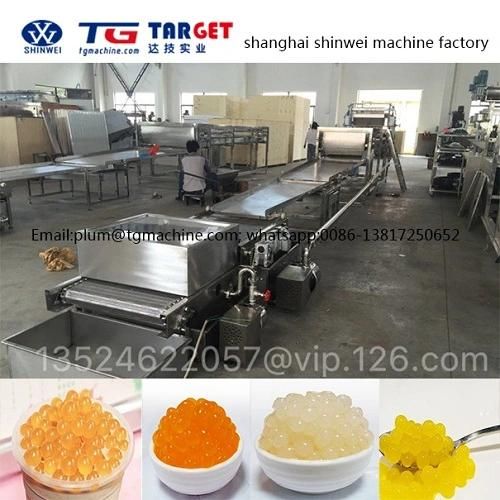

CBZ200 Automatic Popping boba Juice filling Boba machine line

1.Capacity:Up to 300kg/h
(According to the popping bobas size,about 198 nos ball each deposit)
2.Jelly weight:0.8g~1.5g
3.Depositng speed:20~25times/mins
4.Power:~6.5kW/380V
5.Temperature and humidity: <25C, 45~55% humidity.
6.Compressed air requirement: 0.2M 3 /min, 0.4~0.6MPa
7.Size: 9250x1700x 1780mm (According to the workshop, it can be adjusted)

Equipment List:
1. Colloid Mill machine
2. Jacket Cooking tank with Mixer
3. Cooling tank with Mixer
4. Tipping Cooking tank
5. Gear Pump with Piping and valves
6. Filling materials Depositor
7. Forming Solution holding and Circling System
8. Slipping plate
9. Filtering system
10. COllecting Vessel
11. Solution recycling system
12. PLC Control Cabinet.





Packaging & Shipping

Wooden packing
1.Product production is completed, by the quality inspection department to check
2.After inspection qualified, clean for whole machine
3.Packing: a. Inside the machine put desiccant b. Add 6 cm thick foam plate around the machine, Then, winding stretch film for reinforcement, and combined with bubble wrap c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4.Container:according to different products for reinforcement



Our Services

After-sale service for abroad customers
1. Free training of machine installation, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will support customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installation and adjustment
