• Model NO.：YZYX130-9wk
• Condition：New
• Customized：Customized
• Weight：900kgs
• Dimension(L*W*H)：1950*742*1500mm
• Power(W)：15 Kw
• Daily Processing Capacity：8ton,24h
• Electricity：380V 50Hz
• Input：300kgs,Hr
• Input of a Day：8ton
• Spare Parts：Free
• Delivery：20 Days
• Packing：Wooden Box
• Warranty：1 Year
• Oil Plants：Peanut Sunflower Rapeseed Walnut
• Heating System：Includes
• Motor：Option
• Brand：Guangxin
• Transport Package：Fumigated Wooden Box or as Customer′s Request
• Specification：ISO BV SGS
• Trademark：GUANGXIN
• Origin：Sichuan, China
• HS Code：8479200
• Production Capacity：400 PCS,Month

Basic Info.

Model NO. YZYX130-9wk Condition New Customized Customized Weight 900kgs Dimension(L*W*H) 1950*742*1500mm Power(W) 15 Kw Daily Processing Capacity 8ton/24h Electricity 380V 50Hz Input 300kgs/Hr Input of a Day 8ton Spare Parts Free Delivery 20 Days Packing Wooden Box Warranty 1 Year Oil Plants Peanut Sunflower Rapeseed Walnut Heating System Includes Motor Option Brand Guangxin Transport Package Fumigated Wooden Box or as Customer′s Request Specification ISO BV SGS Trademark GUANGXIN Origin Sichuan, China HS Code 8479200 Production Capacity 400 PCS/Month

Product Description

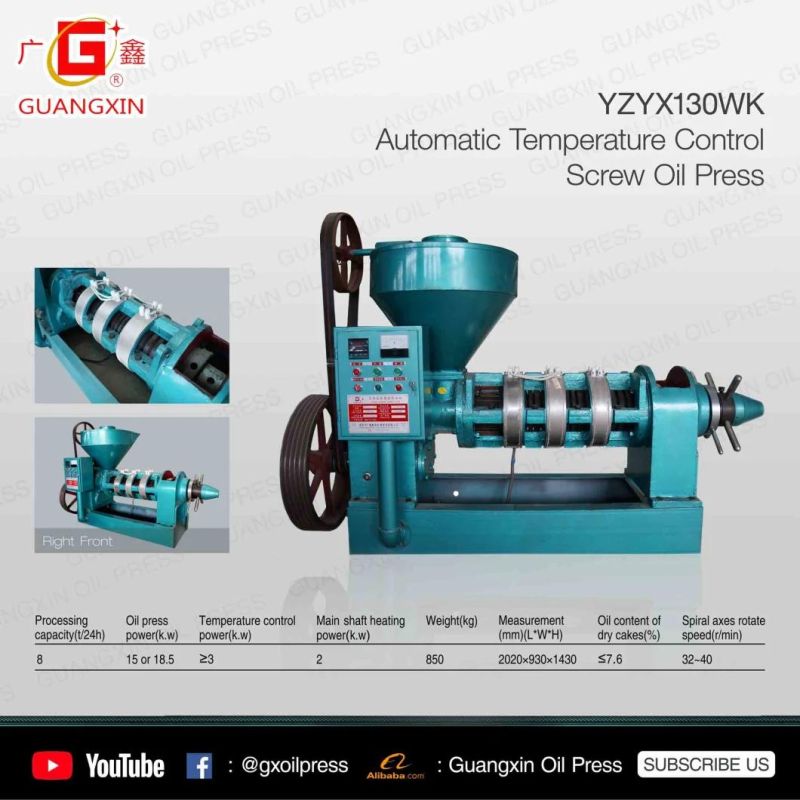

YZYX130 -9 WK Characteristics:

1.3-step squeezing, suitable for oil plants with heavy fiber or shells, or the cakes need to be used as fodder, such as peanut, sesame, corn germ, tung seed, tea seed, palm kernel and any other any nuts.
2. Length of press cage is 75cm.
3. Oil content of dry cake is 6.5%.
4.3 phase electricity or diesel generator driving.
5.120 series single oil press has 2-step, 3step and 4-step for choosing.





OUTSTANDING ADVANTAGE:

1. Healthy! Physical squeezing craft maximally keeps the nutrients such as the protein, fatty acids and minerals, etc.

2. High working efficiency! The spiral squeezing structure can achieve high oil output, thus the oil content of the residue cake is low.

3. Long durability! Long durability: All the parts are made of the most suitable material and treated with refined crafts, such as cemented quenching and tempering to increase the hardness, consequently the durability.

4. High economic efficiency! The wearing parts on the machine such as the squeeze loop, squeeze spiral and squeeze bar are designed to be dismountable. When they are out of service period, users only need to replace them and no need to displace the whole machine.


Quality Standard
Conform to JB/T9793· 1-1999 of the People's Republic of China & ISO9001: 2015



It is suitable for:

1. Many oil plants, such as rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds and palm kernel, etc.
2. Medium and small oil refinery, oil mill and private oil squeezing workshop.
3. Performs well both in cold pressing and hot pressing.


Guangxin Oil Press After-Sale Service:

1. We supply spare all year around.
2. We supply technical solutions and helps for buyers at any time.



Packaging &delivery details:

1. Packaging: Fumigated wooden box packing or as per customer's requests.
2. Delivery: 10-20 day after order confirm
