• Model NO.：240
• Material：Stainless Steel
• Voltage：220V,50Hz,60Hz
• Power：2.5kw
• Transport Package：Carton with Pallet
• Specification：CE; ISO9001: 2000
• Trademark：SPACE
• Origin：Zhejiang, China (Mainland)
• HS Code：8418699020
• Production Capacity：10000 Sets,Month

Basic Info.

Model NO. 240 Material Stainless Steel Voltage 220V/50Hz/60Hz Power 2.5kw Transport Package Carton with Pallet Specification CE; ISO9001: 2000 Trademark SPACE Origin Zhejiang, China (Mainland) HS Code 8418699020 Production Capacity 10000 Sets/Month

Product Description

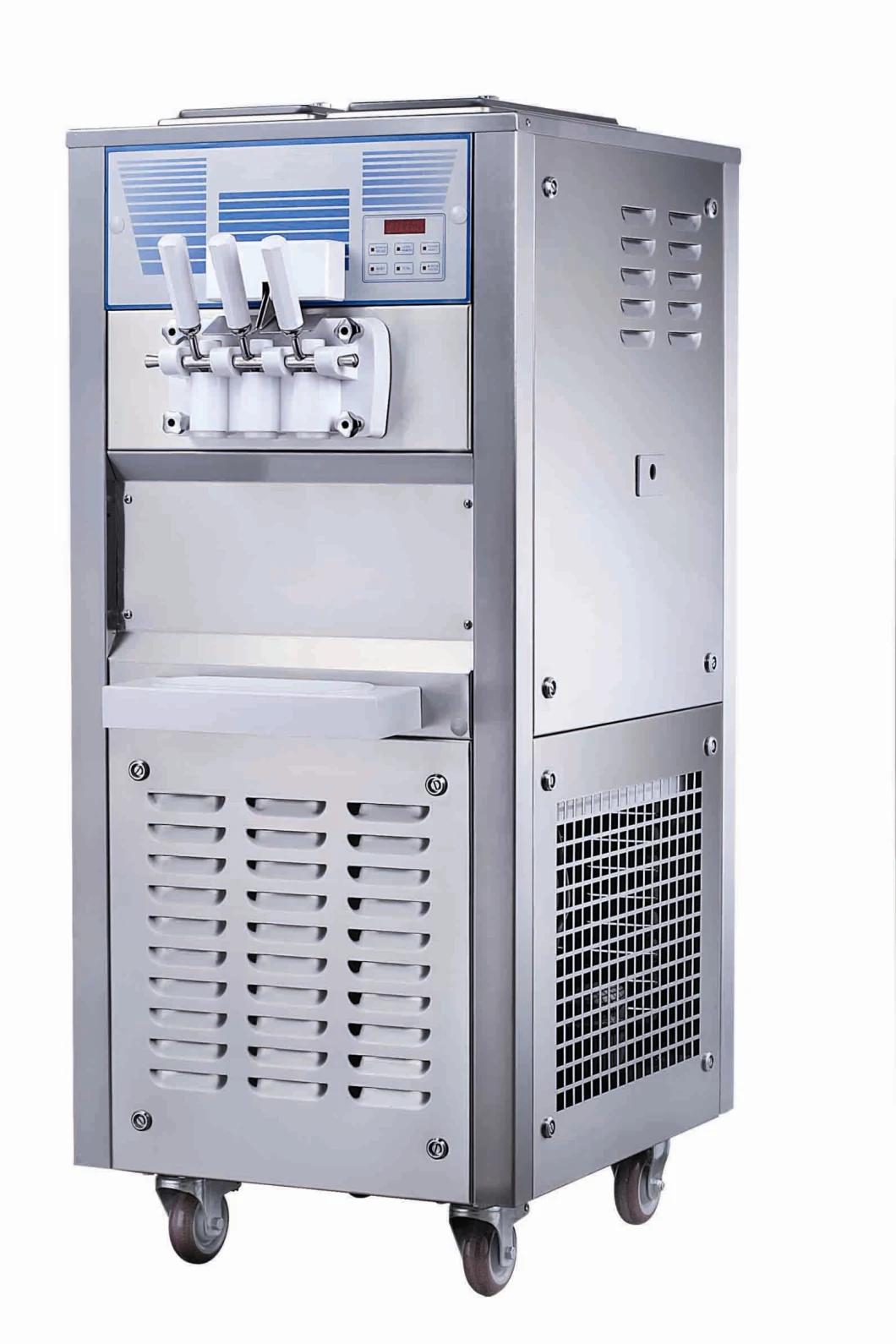

Soft Serve Ice Cream and Frozen Yogurt Machine 240






Specifications
Voltage: 220V/240V-50Hz Power: 2.5 KW
Net weight: 190kg Gross weight: 210kg
Machine size: 550X650X1340mm Packing size: 650X780X1520 mm
Quantity for20": 27 sets Quantity for 40": 54 sets

* Floor Model
* Gravity feed
* Twin flavours + one mixed
* 2X 1.7 Liters Cylinder
* 2X12.5Liters Hopper
* Capacity: 40 Liters/H
* Stainless Steel Panels
* Touch button control panel

Capacity

40 Liters/H, 300 cones/hour (100ml/cone)
(Capacity varies depending on condition of mix and environment)
Product Offering

Offer all popular soft serve variations from low or non-fat ice cream to custards, yogurt and sorbet.
Freezing Cylinder
Two, 2× 1.7 liters

Mix Hopper
Two, 2× 12.5 liters
Separate hopper refrigeration (Pre-cooling) maintains mix temperature below 5oC
Refrigeration System

Main refrigeration:
One compressor: 4700 BTU/hr. R404A
Separate hopper refrigeration (Pre-cooling. ):
One compressor: 420 BTU/hr. R134A
(BTU may vary depending on compressor used. )
Beater Motor
One, 1.8 HP

Hardness Indicator
Displays hardness status of the refrigerated product to ensure product quality.
Standby
During long no-use periods, the standby feature maintains safe product temperature in the mix hoppers and freezing cylinders.
Electronic Controls
The microprocessor controls automatically regulate refrigeration by monitoring product temperature and viscosity to maintain consistent quality.

Air Cooled
Required clearance: Minimum 152mm (6") on both sides. Unit rear must be placed against a wall to prevent recirculation of hot air. Minimum air clearances must be met to assure adequate air flow for optimum performance.

Options:
1. Manufactured upon request, not available in stock
2. Ice cream cone&cup dispenser
3. Power Supply: 220V/60Hz
4. Local specific plugs of power supply wire.
5. Cover of dispenser door
