• Model NO.：HDF
• Condition：New
• Customized：Customized
• Processing：Corn Flour Mealie Mill Fine Maize Flour Grits Mi
• Final Products：Maize Flour, Maize Meal, Grits
• Working Life：30years
• Noise：Less Than 85dB
• Cleaning：Cleaning Machines
• Dampering：Double Floor Damper
• Milling：Roller Mill
• Packing Section：2-5kg, 10-25kg, 50kg Bags
• Pipes：Steel Stainless Pipes
• Roller Mill：Automatic Roller Mill
• Transport Package：Container
• Specification：HDF
• Trademark：HDF maize flour milling machine
• Origin：China
• HS Code：84370000
• Production Capacity：8 Sets,Month

Basic Info.

Model NO. HDF Condition New Customized Customized Processing Corn Flour Mealie Mill Fine Maize Flour Grits Mi Final Products Maize Flour, Maize Meal, Grits Working Life 30years Noise Less Than 85dB Cleaning Cleaning Machines Dampering Double Floor Damper Milling Roller Mill Packing Section 2-5kg, 10-25kg, 50kg Bags Pipes Steel Stainless Pipes Roller Mill Automatic Roller Mill Transport Package Container Specification HDF Trademark HDF maize flour milling machine Origin China HS Code 84370000 Production Capacity 8 Sets/Month

Product Description

Corn Flour Mealie Mill   Fine Maize Flour Grits Milling Machine

1. Factory manufacturer for doing 10-500t/day corn flour , maize meal, grits and bran.
2. Advanced in technology, easy control, auto-operation
3. High capacity, low consumption.
4.24h online and after- sale-service.
5. International branch: South Africa, Congo, Zambia

Type	Capacity	Flour extraction	power	Workshop	Container(ft)
6FYDT-5T	5t/24h	Fine flour 75-85%	15kw	10m/5m/5m	20*1
6FYDT-8T	8t/24h	Fine flour 75-85%	23kw	10m/5m/5m	20*1
6FYDT-12T	12t/24h	Fine flour 75-85%	55kw	16m/6m/5m	40*1
6FYDT-15T	15t/24h	Fine flour 75-85%	80kw	18m/5m/5m	40*2
6FYDT-24T	24t/24h	Fine flour 75-85%	95kw	18m/5m/5m	40*2
6FYDT-30T	30t/24h	Fine flour 75-85%	95kw	26m/8m/5m	40*2
6FYDT-50T	50t/24h	Fine flour 75-85%	135kw	27m/9m/7.5m	40*2
6FYDT-100T	100t/24h	Fine flour 75-85%	240kw	30m/9m/10m	20*1 40*4



6FYDT-120T	120t/24h	Small grain35-40% flour40-45%	240kw	30m/9m/10m	40*4
6FYDT-150T	150t/24h	Small grain35-40% flour40-45%	300kw
6FYDT-300T	300t/24h	Small grain35-40% flour40-45%	560kw

The Main Machine is: Maize cleaner; Moinsture damper, degerminator, aspirator, roller mill, plansifter, auto packing machine.
The Feature of each machine.

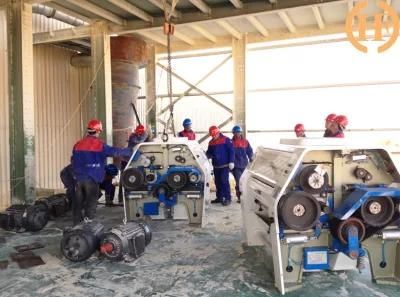

1. Roller Mills
1)The partitioned paneling and swing-out feed module guarantee ideal access to the feeding and grinding rolls. This makes residue-free cleaning possible;
2) a pulse generator automatically adjust the feed material at the entrance doo;
3) bearing SKF;
4) temperature monitor (option).
2. Roller: Two different alloys with a mixing ratio allow the perfect balance to be achieved between hardness and roughness.
3. Plansifter
1) Material: High-strength alloy steel;
2)up and down sifter circles with steel plate overall by bending;
3)Transmission system using spring force component institutions;
4)Sieve frames of wood coated with synthetic resin, without backwire;
5)All the inside walls as well as the doors are provided with high-grade insulation;
6)Vertical and horizontal clamping system.
4. Degerminator: Dry degermination with low fat content. Combined with Europe, Asia and Africa Technology. Multi-faceted sieve tube design, the screen. The high-quality stainless steel nitriding treatment.
5. Gravity grading sifter: Combined globoidal and Plane sifting form, different weight nature classification
6. Dampener: Stainless steel. Bi-directional screw, Prevent free water, an intensive Intermixing(maize).
7. Bucket elevator and conveyor with reducer, High-quality carbon steel painting, stainless steel(option).
8. PIPE: Stainless steel.
9. Moisture bin and store bin: Stainless steel (for maize ).
10. Plant Control System:
Option 1: Mimic board, auto-control; CCTV surveillance system;
Option 2: PLC control system with CCTV surveillance system realize Seamless integration.
11. Electronic parts: Siemens/Delixi.

project  which we have done	country
150T/24h corn flour mill	zambia

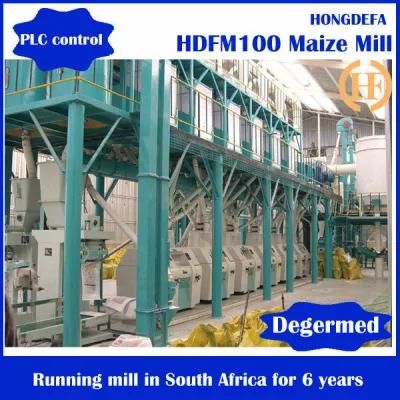

500T/24h corn flour mill	South Africa
