• Capacity：100-10000L
• Transport Package：Wooden Case
• Origin：China
• Production Capacity：50 PCS Per Month

Basic Info.

Capacity 100-10000L Transport Package Wooden Case Origin China Production Capacity 50 PCS Per Month

Product Description

Product introduction

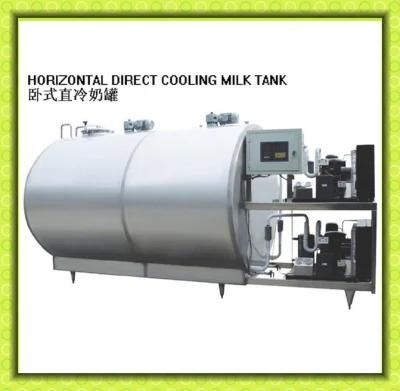

The equipment imported European and American refrigeration compressors, automatic microcomputer control system, so that raw milk rapidly to the desired temperature (4~5 ºC) and maintain a constant temperature to prevent bacterial growth, keep the raw milk is Grade A status. Equipped with safety protection system, the compressor is not easily damaged. Polyurethane foam insulation, good insulation properties. The overall use of high-quality stainless steel SUS304, with automatic cleaning device and a stirring device. Refrigerant R-404a and R22 optional.
Purpose and Structure

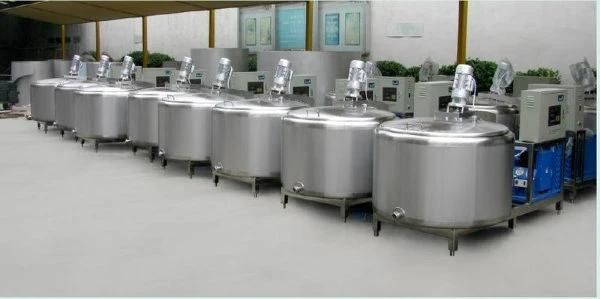

Direct cooling refrigeration and cooling tanks for the storage of fresh milk, goat's milk or other liquid materials; For pasture, milk station, dairy plants, food plants, beverage plants and pharmaceutical industry is the best cooling and storage equipment. This equipment consists of tank, mixer, refrigeration units, electrical control box , pump, materials groove, etc.Tank made of stainless steel, precision polishing after, uneasy to accumulate dirt, corrosion-resistant, easy to clean.
Installation Instruction
Easy installation, we will debug it before delivery. It can be used directly while the power is turned on. If uneven ground can also adjust the front foot bolt to make it stable.
Main model list

Model	Volume	Power	Stirring speed	Heat-insulating property	Dimension(mm)
GY-1000	1000L	4.1kw	36r/min	≤1ºC/4h	2800*1150*1600
GY-2000	2000L	6.2kw	36r/min	≤1ºC/4h	3450*1550*1850
GY-3000	3000L	7.5kw	36r/min	≤1ºC/4h	3700*1750*1950
GY-4000	4000L	10.6kw	36r/min	≤1ºC/4h	4000*2000*2100
GY-5000	5000L	11.5kw	36r/min	≤1ºC/6h	4200*2050*2200
GY-6000	6000L	12.8kw	36r/min	≤1ºC/6h	4350*2250*2250
GY-8000	8000L	14.5kw	36r/min	≤1ºC/6h	5000*2300*2650
GY-10000	10000L	16.8kw	36r/min	≤1ºC/6h	5500*2550*2850
