• Model NO.：TSJZ-L1
• Material：Food Grade Stainless Steel
• Frying Temperature：0-300 Degrees Celsius
• Automatic：Full
• Output：300-600kgs,Hour
• Voltage：380V,50Hz
• Power：50-100kw
• Type：Complete Line
• Working Type：Continuous
• Transport Package：According to Customer Requirement
• Specification：Customized
• Trademark：Ambitious
• Origin：China
• HS Code：8438600000
• Production Capacity：20sets,Year

Basic Info.

Model NO. TSJZ-L1 Material Food Grade Stainless Steel Frying Temperature 0-300 Degrees Celsius Automatic Full Output 300-600kgs/Hour Voltage 380V/50Hz Power 50-100kw Type Complete Line Working Type Continuous Transport Package According to Customer Requirement Specification Customized Trademark Ambitious Origin China HS Code 8438600000 Production Capacity 20sets/Year

Product Description

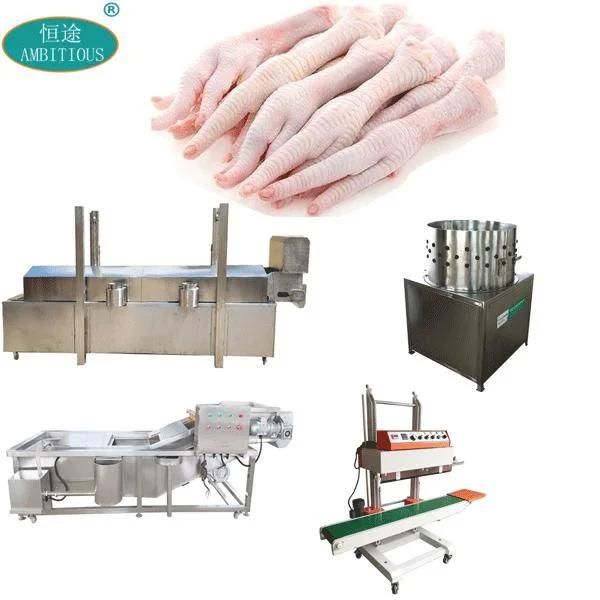

1.- Chicken Feet Scalding Peeling Washing Automatic Chicken Feet Processing Machine
 1. BlanchingBlanching machine can blanch the chicken feet before the skin peeling process.Blanching time and temperature automatic control, the whole blanching process is safe,efficient and low cost,saves water and energy.
It is made of 304 stainless steel. The mesh belt conveyor is driven by stepless speed motor. The temperature could be adjusted by the PLC control system.

The machine works with steam or electricity,can pre cook the raw chicken feet for easy to be skin removed.
 2. PeelingChicken feet peeling machine is usually used for removing the yellow skin of chicken feet(claw).The motor drives the swing plate to rotate so can make the chicken claw spiral in the drum and get the peeling result. It is easy to be operated,has high capacity and complete peeling result while does not damage the chicken claws.
 3. WashingThe chicken feet that need to be washed are put into the water tank, under the action of high-pressure water flow and strong air bubbles, they are entirely dispersed, turned over, washed, and then transferred to the outlet and re-washed by the sprayed water created by the spray water device, and then lastly discharged by the conveyor belt.
 4. DewateringThe vibrating screen can remove most the water on the surface of the chicken paw.
 5. PackingPacked in the plastic bags by the packing/sealing machine, then stored into cold room.





2.-Applications of Chicken Feet Scalding Peeling Washing Automatic Chicken Feet Processing Machine

Mainly for processing chicken feet/paw, includes blanching, peeling, washing, dewatering, packing,etc.
Types: Semi-automatic, full automatic.




3.-Details of Chicken Feet Scalding Peeling Washing Automatic Chicken Feet Processing Machine



Output	500kgs/hr
Factory Layout(Min)	200m2
Electric Required	50KW
Gas Required	N/A
Heating Source	Steam or Electricity
Labor Required	2
Type	Automatic

4.-Production, Packing & Shipment

A).Packing:With wrapped film, or in wooden case.
B).Transportation: Sea containers, train, or other types.








5.-Company Summary

Zhucheng Tianshun Machinery Co.,Ltd. has grown into a large, specialized food machinery manufacturing enterprise which integrates R & D and manufacturing. Currently has more than 100 employees, the division of labor is professionalization and specific, there are technical department, after-sales service department, domestic marketing department, international business department, etc. The company has all kinds of welding equipment, machining equipment to meet the needs of different customers.


Main products: Food machinery and complete production lines, including:

Vegetables&fruits cutting machines,
Peeling&washing machines,
Frying equipment,
Air drying machinery,
Blanching&cooking machine,
Seasoning machine,
Food starching machine,
Vacuum packing machine,
Complete potato chips/french fries production line,plantain chips production line,
Donuts machine.

All of them can be designed semi-automatic and full automatic, and widely used for processing varieties of vegetable, fruits, fish, seafood, etc. Some of them have pass the CE certificate. All of them could be customized, and we also provide and design individual machines for customers.
