• Model NO.：LFM
• Transport Package：Wooden Packing
• Specification：customized
• Trademark：Longer
• Origin：China
• Production Capacity：100-1000kg,H

Basic Info.

Model NO. LFM Transport Package Wooden Packing Specification customized Trademark Longer Origin China Production Capacity 100-1000kg/H

Product Description

Introduction of chocolate melanger machine
The chocolate melanger machineis the main equipment in the production of chocolate. It is used for fine grinding of chocolate slurry. It has the dual functions of grinding and refining. It is the most ideal equipment for the production of chocolate slurry. It is also suitable for grinding jam, peanut butter, grinding bean flour, oil, Liquid and daily chemical raw materials require fine grinding, the fine grinding time is generally 16-22h, and the average fine particle size can reach 20um.

  Feature Of melanger chocolate machine
1. High fineness of fine grinding: high-strength steel is rotated and finely ground, and the finished product has a fine and uniform particle size, and enjoys 20um silky smoothness.
2. Dehydration, deodorization, economical and efficient: set up an air outlet, slurry heat preservation and grinding, natural gas overflow, moisture removal and degassing, to achieve the purpose of refining, maintaining the natural color and aroma of chocolate, integrating fine grinding and refining.
3. Jacket heat preservation to ensure quality: the cylinder body is composed of a double jacket. Cooling water, hot water or steam can be passed through the jacket. The temperature can be controlled by electric heating. The heat preservation performance is good. The fine grinding barrel is closed design. Health and Safety.
4. Easy to adjust and easy to observe: the contact between the scraper and the inner wall lining strip of the cylinder is tight, which can be realized by the front and back extension of the umbrella adjustment. A graduated scale is installed at the rear end of the main shaft. The reading above shows the front and back expansion and contraction of the umbrella adjuster. The pointer can also be moved by the motor, and the scale indicates the degree of tightness.
5. Stable operation: The rotor is driven by a motor to drive a three-stage helical gear reduction transmission. The helical gear transmission has good meshing performance and more stable transmission. The structure is stable and durable.

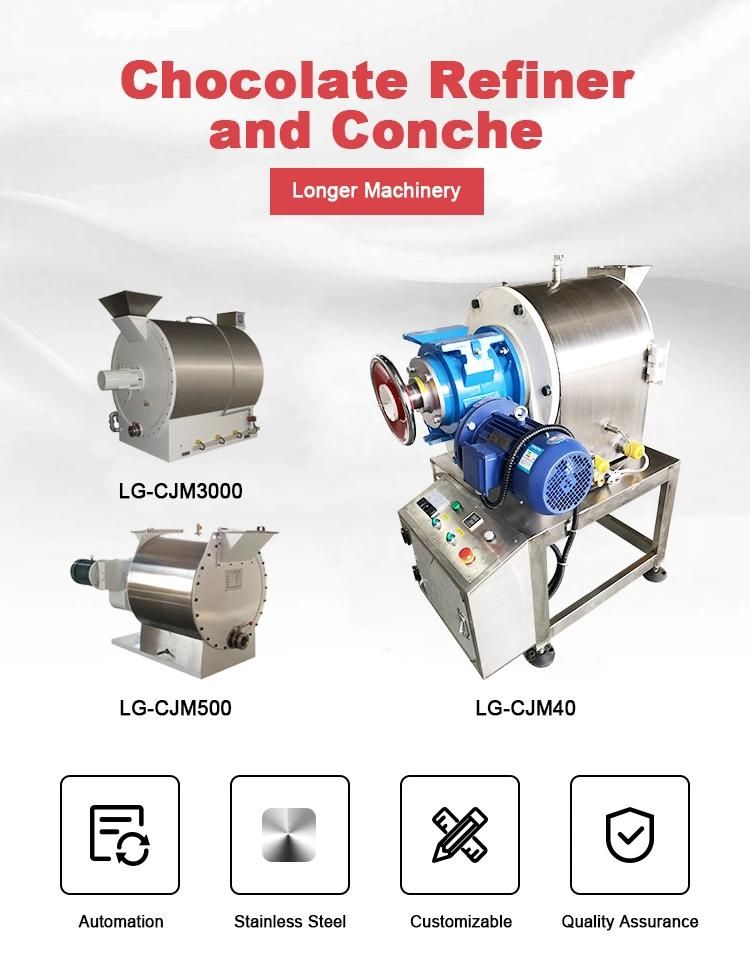

Parameters Of small chocolate conche machine

Model	GG-CJM40	GG-CJM500	GG-CJM1000	GG-CJM2000	GG-CJM3000
Capacity(L)	40	500	1000	2000	3000
Fineness (micron)	20-25	20-25	20-25	20-25	20-25
Refining Time (h)	7-9	12-18	14-20	18-22	18-22
Host Power (Kw)	2.2	15	22	37	55
Heating Power (Kw)	2	7.5	7.5	9	9
Weight (Kg)	360	2800	3500	5300	8500
Dimensions (mm)	1100*800*1100	2500*1080*1370	2780*1330*1800	3320*2000*1950	1200*2000*1950
