• Model NO.：SC-81
• Color：Silver
• N/W：5kg
• Power：220V
• Brand：Sc
• G/W：7kg
• Packing：Carton
• Material：Stainless Steel
• Configuration：1 Tank 1 Basket
• Volts：220V
• Transport Package：Carton,Wooden Case(According to Customer′s Require
• Specification：310*470*330MM
• Trademark：SC
• Origin：Guangzhou
• Production Capacity：3000,Month

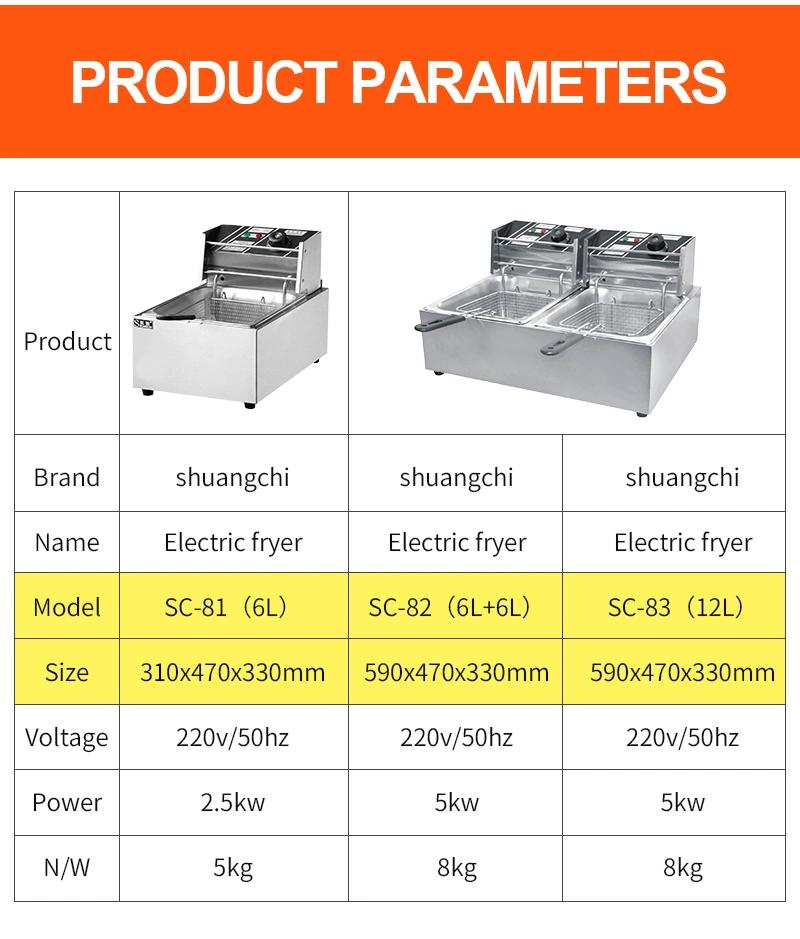

ModelSC-81SC-82Size310*470*330mm590*470*330mmPower2.5KW5KWVolts220v220VN/W5KG8KGconfiguration1 tank 1 basket2 tank 2 basket

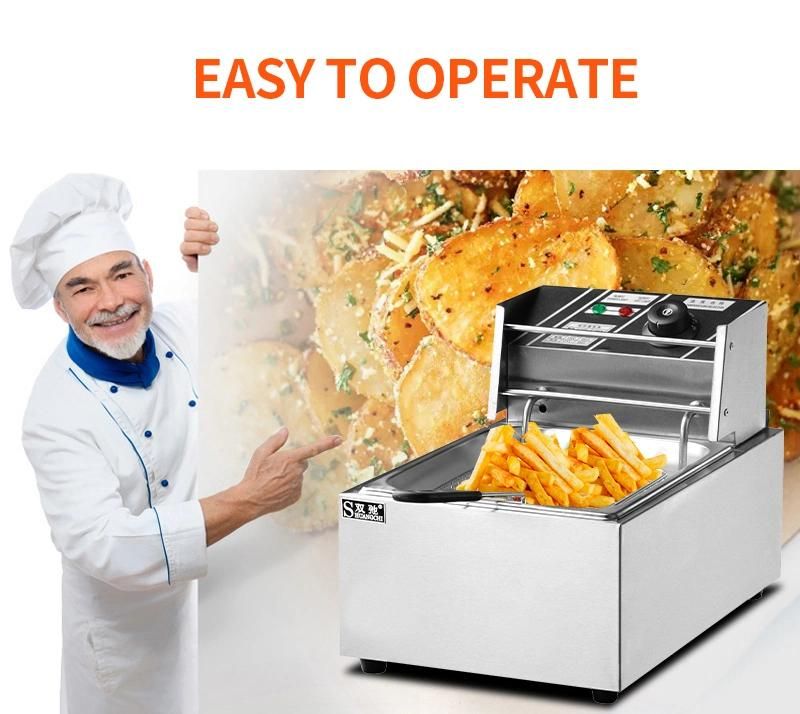

Picture Show:






Instruction
1.Check by installation announcement whether power supply installation an safe.

2.When user uses it,user should keep oil over half oil pot.

3.1)Shut electric power switch K1,red indicator is on, at the same time electricity supplies to oven. Rotate temperature knob clock wise and put red point o the needed degree.At the same time yellow indicator is on and red indicator is off, it shows that electric heating tube stops heating.Temperature of oil begins to rise.

2)When temperature rises to needed degree, thermal-controller will cut electricity automatically, at the same time yellow indicator is off, red indicator is on electricity heating tube stops heating .

3) When temperature lowers a little, thermal-controller will get through electricity automatically, yellow indicator is on, red indicator is off, electricity heating tube works again,and temperature rise.

4)It works in this way repeatedly in order to make sure temperature is certain in a range.

4.Cover is designed for keeping warm and clean.When user put on cover , user should make sure there is no water on it in case of water draws into pot and hot oil splashes.

5.Enclosed special basket is used for frying small piece of food.There is a hanger and a handle on the basket .Put basket in oil when producing. After finishing hang the basket to filter odd oil.

6.After finishing, please rotate temperature knob counter-clockwise to limited position and cut off electricity for safety sake.

7.If user wants to pour oil out of pot, user should do it after temperature of oil lowers to normal. First user takes out of basket and back-plate, then cut off electricity and turnover controlling box(at this moment electric heating tubes in pot are erect) or user takes out controlling box and puts it on a dry place so that user can take out oil pot and clean it.

8.User should clean residue in oil and filth on electric heating tube in a regular time.

9.The back -plate is designed for protecting electric heating tube.Back -plate must be put in oil pot when frying food.


Notice
Every fryer with temperature range from 50-200ºC has a "reset protecting button for over heating"When temperature is higher than the setting one ,protecting button will work to protect machine.When use it again,user should press protecting button to reset,and then user can use it normally.


Delivery: Shipped in 15-20 days after payment (Do not include public holidays)

Payment: Western Union, T/T(30% deposit and 70% before shipment)

Package: 1pcs/carton/polywood



FAQ:
 Q1.What Does Your MOQ Mean?
   MOQ means different products have different minimal order quantity in a certain range.
   We are a factory and generally do wholesales.However, trial order is also acceptable and welcome!

  Q2.What Methods of Payment Are Acceptable?
  1. Telegraphic Transfer (T/T): we accept 30% T/T deposit before production and 70% T/T Balance before shipment. 100% payment for sample orders.
  2. Western Union: we accept 100% payment via the western union.

  Q3.What Is the Cost of Shipping?
  Shipping cost is based on the following elements:
  Number of packages
  Gross Weight
  Package volume
  Destination port

  Q4.How About the Delivery Time?
  1.Some of the products are in stock at our warehouse, generally we need 3~5 days to change the plugs before the delivery.
  2.Regarding to the non-stock products, the lead time 15-25 working days on receipt of your down payment.Also depends on your requirement on the product.

  Q5.Whats the Warranty of Your Product?
 1 year for main parts.and we will send you free quick-wear parts in the package,when ship goods to you

  Q6.Can you provide OEM service?
  Yes,we can .we have more than 10 years of OEM logo experience.



Tips:
1. Please carefully check whether the goods have quality problems. If they are, you have the right not to sign for them.
2.  When there is a strange phone tell you the good are ready and require paying .Please be cautious and avoid deceived.
3.Your satisfaction is the great power for us.
4.We are dedicated to provide 100% customer satisfaction . All productions accept customized. Pls drop us a email if you have any questions.


Our Services
1. Various materials,  colors and logos are available.
2. Own R&D department with specialized & experienced team, enriching your needs.
3. Own factory with Tech Dept and QC Team ensure our best quality.
4. OEM, ODM welcomed;
5. Other Cooperation idea welcomed.

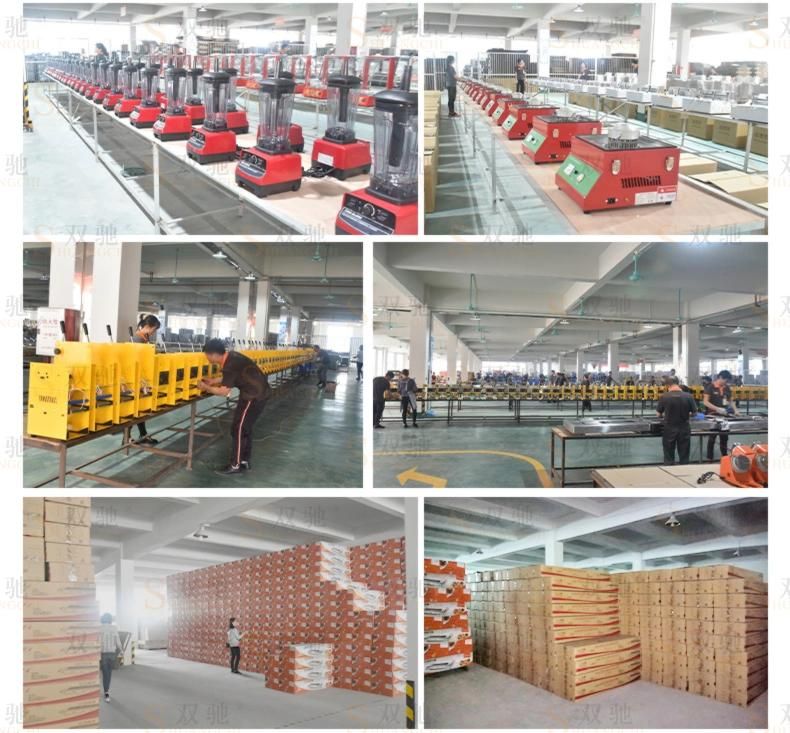

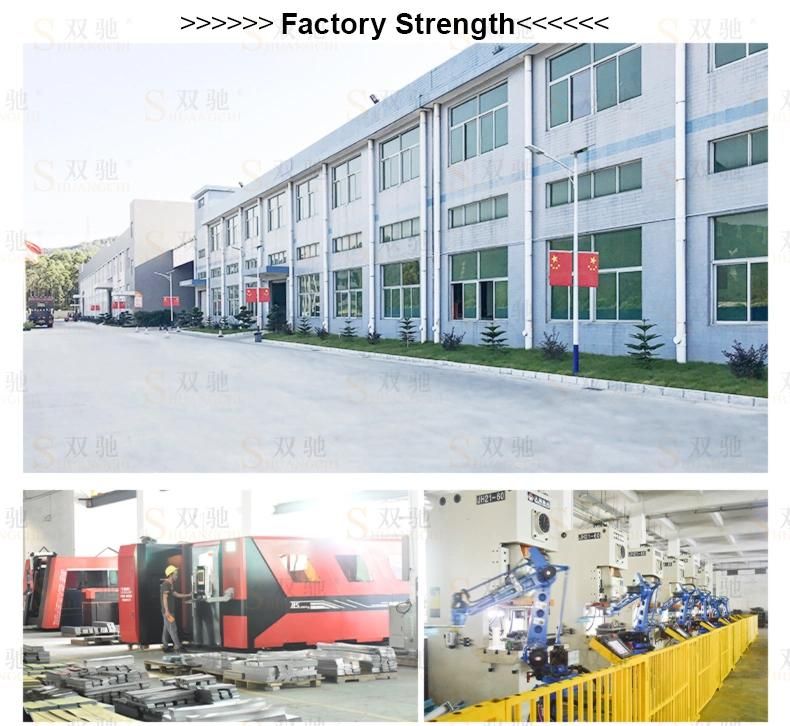

Company Profile :

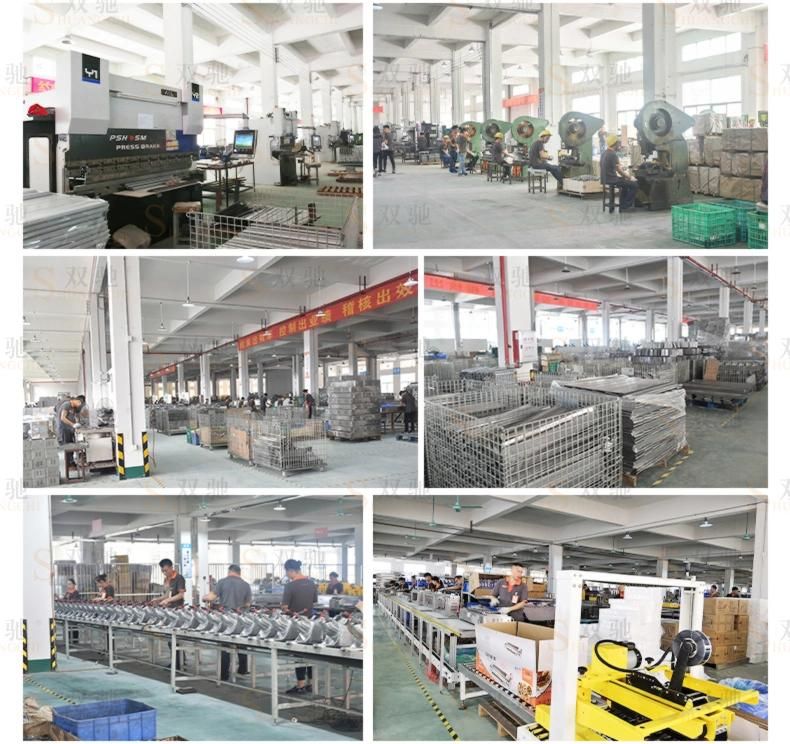

Guangzhou Shuangchi Catering Equipment  Co.,LTD,is located in Huadu Guangzhou,which enjoying the reputation of 'Chinese Catering Equipment Capital'.Our factory covers an area of more than 50000 square meters with superior location.Adjacent to the Guangzhou Baiyun International Airport.The company has a vibrant and dynamic,experienced R&D,design,production,sales in one of the team.At the same time,we won our clients favor and support.We always insist in the spirit of a people-centered design concept,equisite processing technology,has introduced BBQ grill,Soybean Milk Machine,Cotton Candy Machine,Ice Crusher,West snacks equipment and other series.
