• Model NO.：MK150
• Capacity：300kg,H
• Speed：1000PCS,Min
• Power：24kw
• Length：16m
• Gross Weight：7500kg
• Warranty：One Year
• Material：Stainless Steel
• Transport Package：Wooden Case
• Specification：CE
• Trademark：TGmachine
• Origin：China Shanghai
• HS Code：84382000
• Production Capacity：20stes,Year

Basic Info.

Model NO. MK150 Capacity 300kg/H Speed 1000PCS/Min Power 24kw Length 16m Gross Weight 7500kg Warranty One Year Material Stainless Steel Transport Package Wooden Case Specification CE Trademark TGmachine Origin China Shanghai HS Code 84382000 Production Capacity 20stes/Year

Product Description

Automatic central-filled soft milk candy production line
The processing line is an advanced one for making various kinds of soft candies, such as central- filling milk candies, soft candies and etc...It is also an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.



Model	T200
Production capacity   ( kg/h)	300
Rated output speed    (pcs/min)	1000
Weight of each candy     (g)	Shell: 7g(max.)       Central-filling:2g(max)
Steam consumption    (kg/h)  Steam pressure        (Mpa)	400 0.2~0.6
Electric power needed	34kw/380V
Compressed air consumption Compressed air pressure	0. 25m3/min 0.4-0.6 Mpa
Conditions needed for  the cooling system: 1.Room temperature 2. Humidity (%)	20~25 55
Length of the whole line   (m)	16m
Gross weight           ( Kgs)	Approx.8000

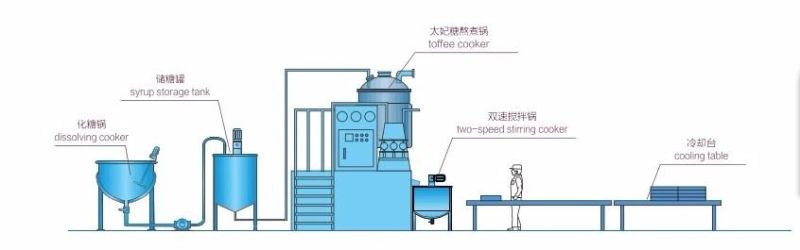

PROCESS FLOWING LAYOUT CHART:
Dissolvingà Transporting à Storage à Continuous cooking and aeratingà Cooling à Drying and aging à Extruding and fillingà Rope sizing à Cooling conveyor à Forming à Swing dischargerà Packing


Wooden packing
1. Product production is completed, by the quality inspection department to check
2. After inspection qualified, clean for whole machine
3. Packing: A. Inside the machine put desiccant b. Add 6 cm thick foam plate around the machine, Then, winding stretch film for reinforcement, and combined with bubble wrap c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4. Container: According to different products for reinforcement


After-sale service for abroad customers.

1. Free training of macine installion, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will surpport customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installion and adjustment

Why choose us?

· Nearly 20 years experiences in food processing machinery production, established in 1982.

· We are manufacturer and wholesale of dough kneading machine

· We adopt environment-friendly materials and technology

· We mainly sell stock in bulk. OEM orders are welcome

· We can accept the mix order
