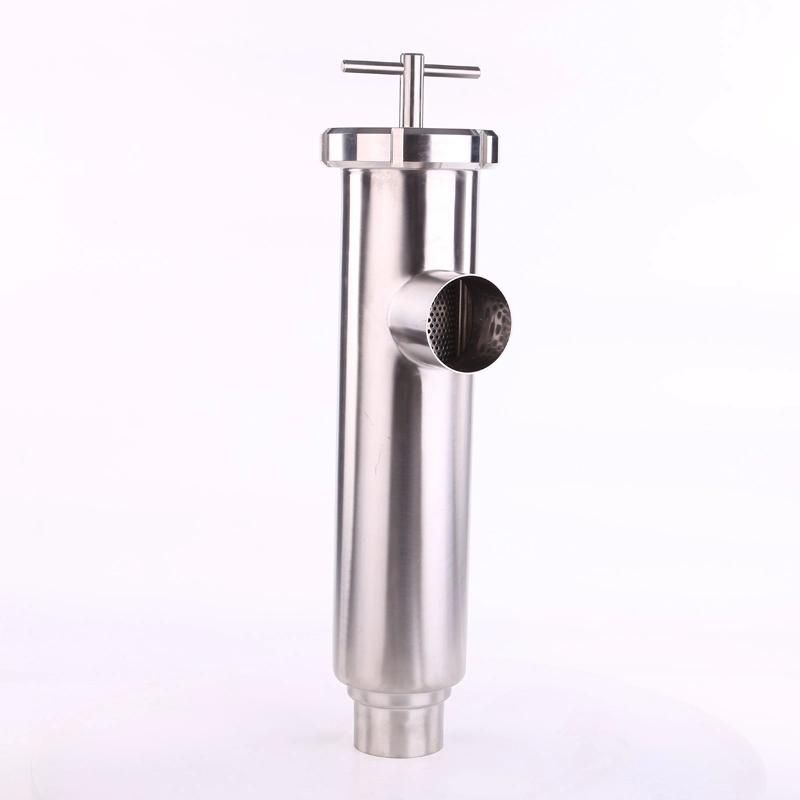

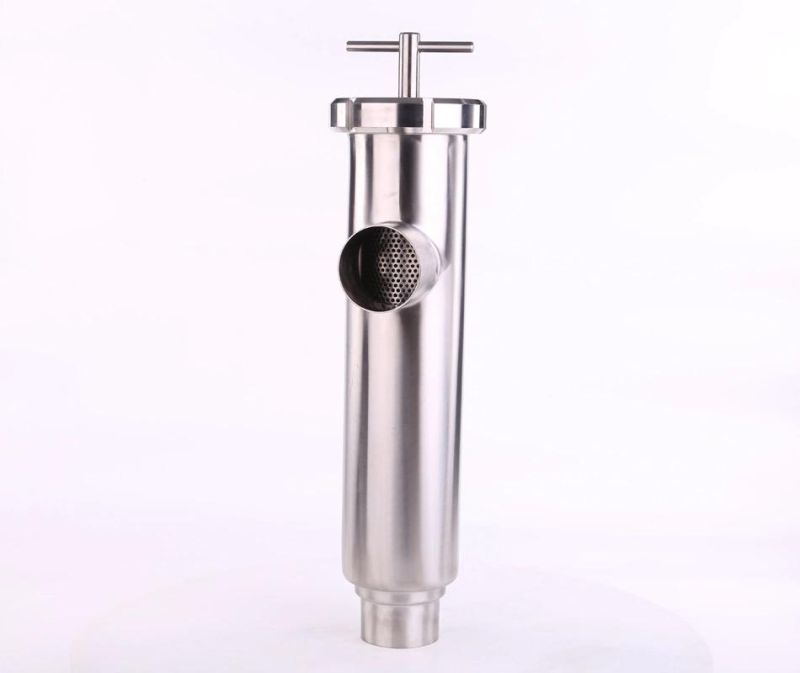

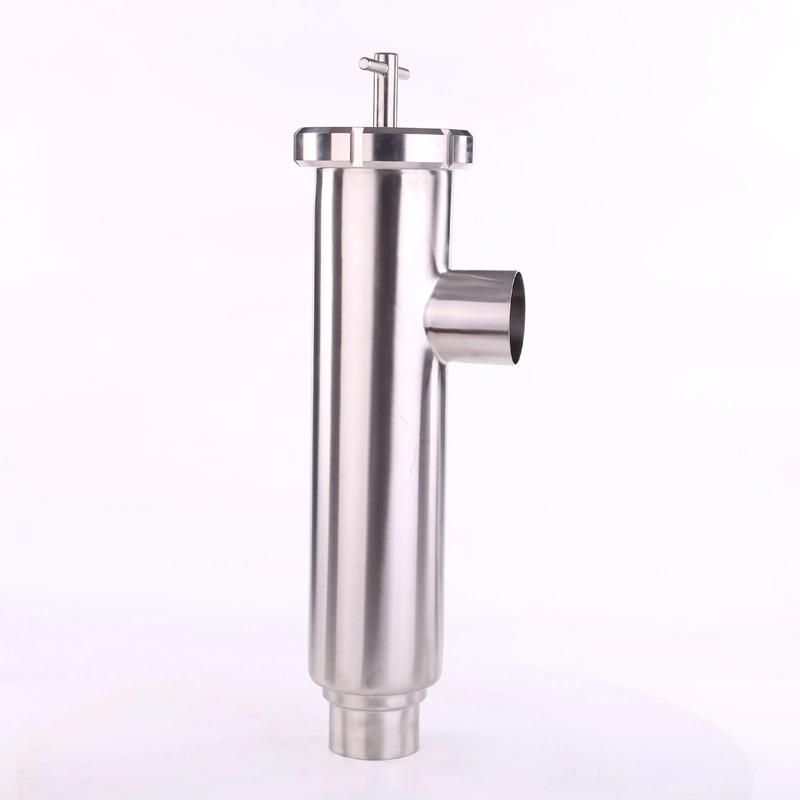

3A/DIN/SMS/ISO/Idf Stainless Steel Sanitary Welded Angle-Type Filter

Wenzhou Longva Light Industrial Machinery Co., Ltd.
  • Processing Material：Animal Raw Materials, Forest Products, Special Agricultural Products, Garden Products, Agronomic Products, Natural Ingredients
  • Application：Pet Food, Chocolate, Ice Cream, Vegetable, Fruit, Dairy, Beverage
  • Customized：Customized
  • Certification：CE, ISO9001
  • Power Source：Manual
  • Automatic Grade：Manual

Base Info

  • Model NO.：Filter
  • Type：Angle Type
  • Place of Origin：Wenzhou,China
  • Material：Stainless Steel 304,316L
  • Connect End：Welding,Clamp,Thread
  • Screen-1：Metal Mesh
  • Screen-2：Perforated Plate
  • Transport Package：Plastic Bags, Carton, Plywood Case
  • Specification：3A, DIN, SMS, ISO, IDF
  • Trademark：Longva
  • Origin：Wenzhou, China
  • HS Code：7307230000
  • Production Capacity：8000PCS,Month

Description

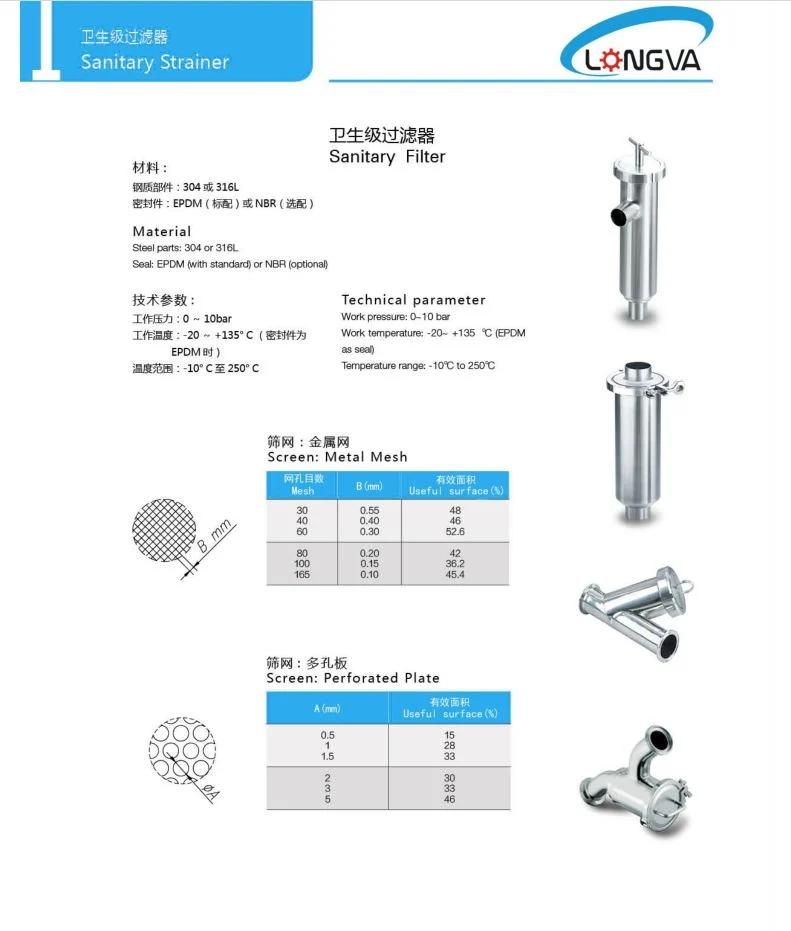

Material304/316LSealEPDM(with standard) or NBR(optional)Work pressure0~10barWork temperature-20~+135°C(EPDM as seal)Temperature-10°C to 250°CTypeAngleConnect end:Welding, clamp, threaded

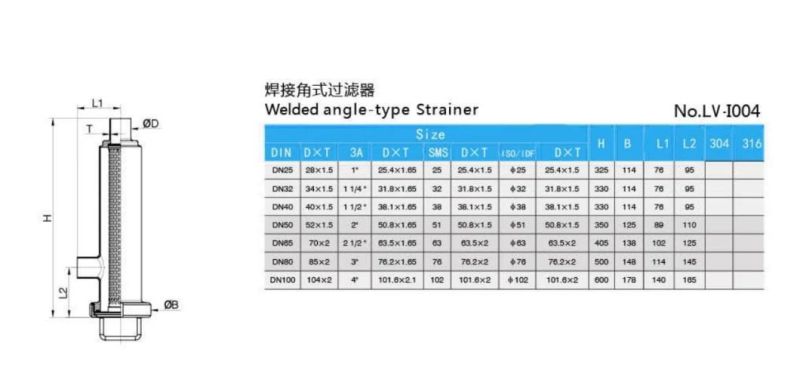

1. Size: 1" - 4", DN25 - DN100

2. Material: Stainless steel 304, 316L

3. Connect end: Welding, clamp, threaded.

4. Standard: 3A, DIN, SMS, ISO, IDF


5. The length and outside diameter can do according to customer Request.

6.Application: Beer, food, dairy, beverage, cosmetics, pharmacy and chemical etc industries
