• Appearance：Horizontal
• Press Materials：Rice
• Press Series：Second
• Condition：New
• Customized：Non-Customized
• Transport Package：690× 670× 1400mm
• Specification：SB
• Trademark：Mole
• Origin：China
• HS Code：8433420000

Basic Info.

Appearance Horizontal Press Materials Rice Press Series Second Condition New Customized Non-Customized Transport Package 690× 670× 1400mm Specification SB Trademark Mole Origin China HS Code 8433420000

Product Description

Introduction:

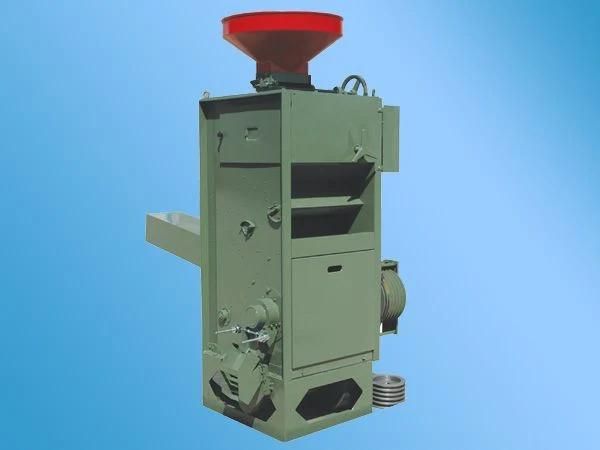

The SB Rice Huller with Polisher is a kind of comprehensive equipment. Rice goes into machine via vibrating screen (removing stones) and magnet unit (removing little piece of steel), and then pass through hulling room (remove the yellow husks), winnowing room, milling room (remove the brown chaff, and then become white rice), and blowing room in turn. The machine can complete all the processing works from cleaning grain, hulling grain to milling rice. As to husk, chaff, blighted grain, as well as polished rice, they are all pushed out of machine separately. Furthermore, we add a jet blower near the outlet of finished white rice; it not only can drop down the temperature of white rice, but also can separate chaff from the white rice, and make the finished rice much clear.

Parameter reference:


Model	SB-5	SB-10	SB-30	SB-50
Capacity( on paddy)	500-600 Kg/Hour	900-1200 Kg/Hour	1100-1500 Kg/Hour	1800-2300 Kg/Hour
Matched motor	5.5 Kw	11 Kw	15 Kw	22 Kw
Matched diesel engine	8-10 Hp	15 Hp	20-24 Hp	30 Hp or above
Dimension(LxWxH)	860x692x1290mm	760x730x1735mm	1070x760x1760mm	2400x1080x2080 mm
Net weight	130 Kg	230 Kg	300 Kg	560 Kg

Feature:

This machine is a comprehensive expression for all the good qualities of varied kinds of rice-processing machines. For instance, it is arranged with a comprehensive view of situation and is designed rationally. Its structure is compact and well organized. It is of less noise and can be easily operated and reliably regulated. Rice after processed consists of less chaff and few of them are damaged (broken). The neatness of such rice may be up to above standard. It consumes less power and is efficient in work. It is indeed Combined Rice Milling of a new generation.

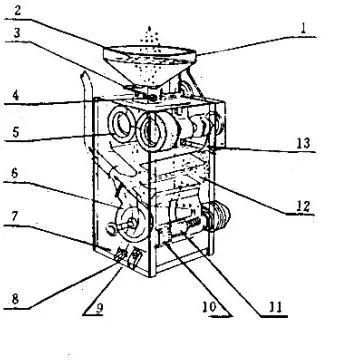

Machine structure and paddy processing flow:


Put paddy into hopper (1) through vibrating screen (2) to riddle gravel. Pull out hopper slide (3).         The paddy screened slide over magnet unit to remove iron filings and are driven into between two rubber rollers, through feeding roller for husking. Paddy flow is controlled by flow controller (4) . Speed roller whirls in the reverse direction. It's line speed different stands 3.6 mps, ratio of whirling speed 1:1.35.While hulling rate is up to over 95%.Clearance between rolls is regulated by rolling distance regulating system (13). The odds and ends under huller are separated by air blowing. Chaff are blown out of the machine by chaff air machine (6).Blighted grain flow out from the blighted grain mouth. While the blown rice are pushed into husking space(11) for husking. The polished rice are pushed out from rice draining mouth (8).In the course of husking, high-pressure blower air blows uninterruptedly towards the hollow axis of rice machine, so as to decrease the temperature of rice in husking space (11).The rice become clean and bright. Chaff goes easy and smooth. Degree of neatness of rice may be regulated with pressing weight of rice draining mouth (9).Fine chaff are pushed out of machine through holes of turret screen (10).

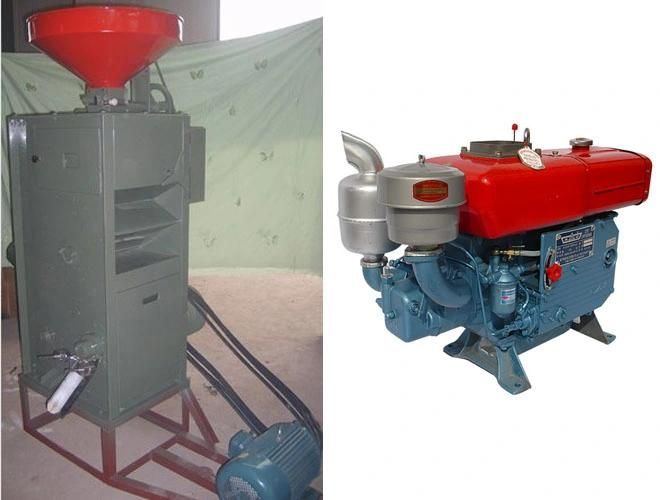

Power:
Directly connect with 15Kw motor (for SB-30) OR Use 20-40 Hp diesel engine (for SB-30)


Packing:

Standard export package,   Free fumigation wooden box
