• Model NO.：1814 2014
• Condition：New
• Customized：Customized
• Number of Holes：2
• The Aperture：7
• Transport Package：Woven Bag
• Specification：plastic
• Trademark：pinyang
• Origin：Wuhan China
• HS Code：84379000
• Production Capacity：0.9-0.56

Basic Info.

Model NO. 1814 2014 Condition New Customized Customized Number of Holes 2 The Aperture 7 Transport Package Woven Bag Specification plastic Trademark pinyang Origin Wuhan China HS Code 84379000 Production Capacity 0.9-0.56

Product Description

Performance characteristics

Unique design, the bottom of the bucket with a slide, is conducive to preventing the break in the lifting process; hoist line speed of 0.5-0.8 m / s; with a strong lifting belt with better results.

Use suggestions

1, suitable for gravity or mixed discharge.

2, the proposed minimum bucket distance for the bucket convex width "B" +25 mm, according to the amount of lifting requirements to reduce the small bucket installation spacing;

3, the proposed lift line speed ≤ 2.5 m / s; head wheel diameter can be obtained when the higher linear speed;

4, recommended "volume (L)" as the engineering capacity of the design.

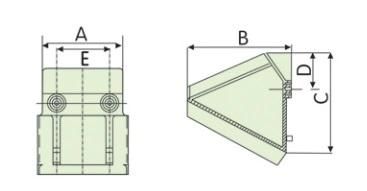

Model	A	B	C	D	E	Hole number	Aperture	volume
MD2921	294	210	200	55	113	3	9	6.2
MD2918	290	178	195	70	100	3	9	5.38
MD2419	246	190	221	65	90	3	9	4.74
MD2313	230	138	136	44	125	2	9	2.21
MD2118	218	195	210	60	140	2	9	4.51
MD2017	207	179	194	60	139	2	9	3.6
MD1715	175	156	176	52	113	2	9	2.4
MD1413	142	143	172	52	93	2	9	1.6
MD1310	207	110	128	37	80	2	9	0.88
MD1010	108	110	129	48	50	2	9	0.7
