Best Quality Corn and Grain Extruder Single Screw Extruder for Feed
Zhengzhou AG Machinery & Equipment Co., Ltd.- After-sales Service：Online Service
- Warranty：12 Months
- Power Source：Electric
- Process：Thermal Processing
- Automatic Grade：Automatic
- Feed Type：Soybean Meal
Base Info
- Model NO.：DGP-80B
- Customized：Customized
- Model No.：Dgp-80b
- Press Materials：Soybean
- Press Series：Second
- Condition：New
- Model：Dgp-80b
- Main Power：22kw
- Feeding Power：0.6kw
- Motor Voltage：380V, 50Hz; Three Phases
- Output for Soybean：200-300kg,Hour
- Output for Corn：180-200kg,Hour
- Dimension：1850*1500*1350mm
- Weight：720kg
- Advantages：Soybean Extruder
- Keywords 1：Soybean Bulking Machine
- Keywords 2：Corn Extruder
- Transport Package：Wooden Case
- Specification：1850*1500*1350mm
- Trademark：AG Mach
- Origin：China
Description
Product Description
The DGP series of large and medium-sized dry feed extruder is carefully designed by adopting the advantages of domestic and foreign models and integrating a number of technological innovations. This machine adopts a combined main shaft, which can be adapted to the puffing processing of different materials and processing whole corn and soybeans. The supporting facilities are simple and the operation and maintenance are convenient. The main motor can be Siemens to ensure product quality.
The processing conditions of the dry extruder and the wet extruder are easily interchangeable, and the screw sleeve adopts an inlaid alloy steel bar structure, which has a longer service life.
It is widely used in extruded soybean, corn, suckling pig feed and other livestock and poultry feed, rice bran preservation, cotton meal, castor meal detoxification treatment, it is an ideal tool for feed processing enterprises.
Product Parameters

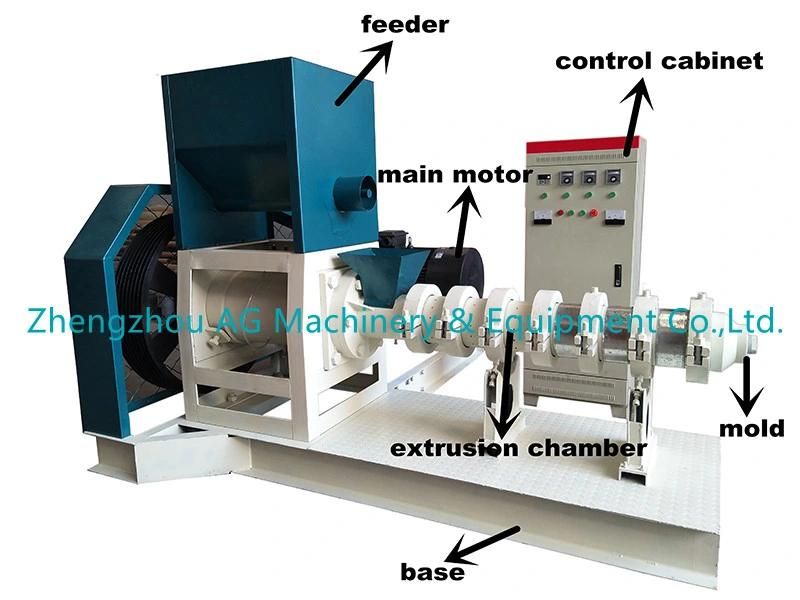

Working Principle
1. The screw sleeve and screw are made of a special high-temperature resistant alloy just now. They are formed by heat treatment. They are equipped with a unique pressurized die device to ensure the output and quality of the feed; and are equipped with an electric heating device to increase the boronization rate of the feed.
2. The main motor adopts high-quality Y series three-phase motor to ensure strong power.
3. The speed-adjustable feeding device is more convenient to operate, feeds evenly, and prevents material jams.
4. The discharging template is easy to replace. If you need feed with different diameters, you only need to change the hole template. Ensure that the feed is clean and hygienic, which is conducive to protein denaturation and starch gelatinization, and is easy to absorb.
Generally, the use of extruded floating fish feed saves 8%-15% of feed than powder or pellet feed.
Raw Materials

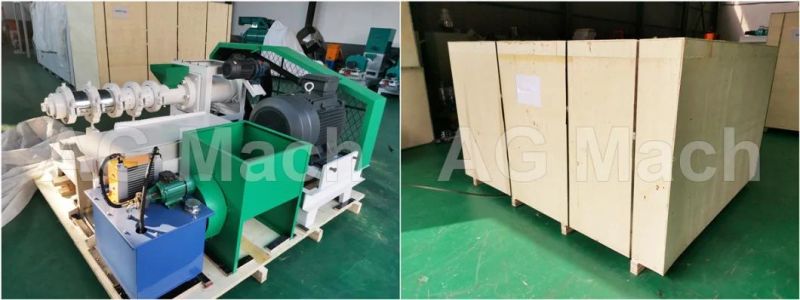

Packaging & Shipping
