• Model NO.：6378
• Customized：Non-Customized
• Model：6378
• Power：5.0 Kw
• Voltage：380-450V

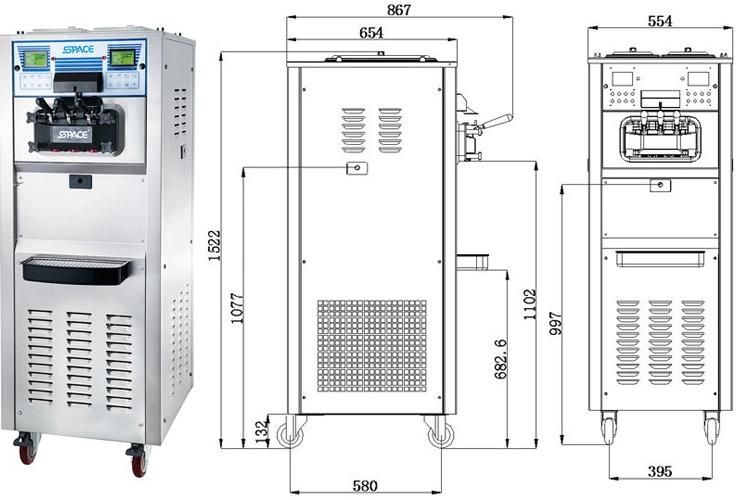

• Dimension (Net)：704mmx605mmx1550mm
• Dimension (Packing0：860mmx700mmx690mm
• N.W.：235 Kg
• G.W.：260 Kg
• Transport Package：Carton with Pallet
• Specification：CE
• Trademark：SPACE
• Origin：Ningbo, China
• HS Code：8418699020
• Production Capacity：10000 Units,Month

Basic Info.

Model NO. 6378 Customized Non-Customized Model 6378 Power 5.0 Kw Voltage 380-450V Dimension (Net) 704mmx605mmx1550mm Dimension (Packing0 860mmx700mmx690mm N.W. 235 Kg G.W. 260 Kg Transport Package Carton with Pallet Specification CE Trademark SPACE Origin Ningbo, China HS Code 8418699020 Production Capacity 10000 Units/Month

Product Description

Ice cream makers 6378, Gravity Feed



FEATURE
Offer all the popular soft serve variations from low or non-fat ice creams to custards, yogurt and sorbet.


FREEZING CYLINDER
Two, 3.2 Liter


MIX HOPPER
Two, 15 Liter
Separate hopper refrigeration(pre-cooling)maintains mix below 4.4º C.

MICROPROCESSOR CONTROLS
Microprocessor regulates refrigeration by measuring product viscosity to maintain consistent quality.


MIX LOW LIGHT
The mix low light turns "ON" to alert operator to add mix, preventing cylinder over freezing.

STANDBY
Maintains product temperature in the mix hoppers and freezing cylinders below 4.4 º C during long no-use periods.

COUNTER
Records number of dispenses per day and total number of dispenses.

AGITATOR IN THE HOPPER
Mixture has better liquidity, the temperature of the mix to be more uniform.

OUTPUT
78 Liter/Hour
(At 4 º C Liquid&24º C Ambient )

ELECTRICAL REQUIREMENTS
One dedicated electrical connection is required. Make voltage steady when machine is ON.

MAIN MOTOR
Two, 1.25 HP

REFRIGERATION SYSTEM
Two compressors: 2X 6486 BTU/hr. R404A
Separate hopper refrigeration(Pre-cooling): One main compressor: 400BTU/hr. R134A
(BTU may vary depending on compressor used. )
