• Model NO.：KQ
• Name and Description：Automatic CIP Clean CIP System
• CIP Machine Material：Stainless Steel 304 ,316
• CIP Cleaning System Capacity：200L to 3000L
• CIP System Control：Electric Control Board
• CIP Washing System：Wash The Juice, Milk Factory Tanks, Equipment
• CIP Contruction：3 Tanks: Acid Tank, Alkaline Water Tank,Pure Water
• CIP Pump：Supplied
• Customized CIP Cleaning System：Accept
• Warranty：in One Year
• After Sale Service：Engineers Able to Visit Abroad
• Packing：Wooden Box .
• OEM：Yes
• Tank Type：Jacketed Type
• Insulation：Yes
• Delivery：10-15 Days
• Transport Package：Standard
• Specification：CE
• Trademark：KQ
• Origin：China
• HS Code：8479820090
• Production Capacity：1000

Basic Info.

Model NO. KQ Name and Description Automatic CIP Clean CIP System CIP Machine Material Stainless Steel 304 /316 CIP Cleaning System Capacity 200L to 3000L CIP System Control Electric Control Board CIP Washing System Wash The Juice, Milk Factory Tanks, Equipment CIP Contruction 3 Tanks: Acid Tank, Alkaline Water Tank,Pure Water CIP Pump Supplied Customized CIP Cleaning System Accept Warranty in One Year After Sale Service Engineers Able to Visit Abroad Packing Wooden Box . OEM Yes Tank Type Jacketed Type Insulation Yes Delivery 10-15 Days Transport Package Standard Specification CE Trademark KQ Origin China HS Code 8479820090 Production Capacity 1000

Product Description

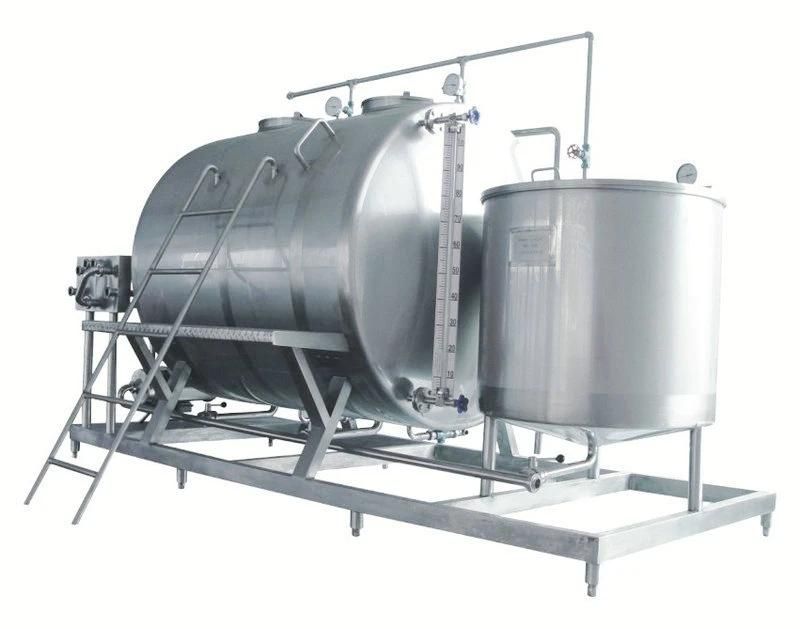

Automatic CIP Clean CIP System


500L CIP Machine Washing Machine CIP Cleaning System
CIP cleaning system can not only clean machine, but also control the cleaning of microorganism method.
The CIP cleaning system has the following advantage:
1, make the production plan rationalize and the exaltation produce an ability.
2, can not only reach a good cleaning performance, but also can raise the quality of product.
3, can prevent cleaning homework from dangerous, economical labor force.
4, can save the steam, water and production cost.
5, can increase the usage time of the machine you want to clean and maintain.
6, This CIP cleaning system is detachable and movable,


Processing:	Washer,online Cleaning the beverage line	Condition:	New	Place of Origin:	JiangsuChina (Mainland)
Brand Name:	ASIASTAR	Model Number:	CIP-300(AS-1636)	Voltage:	380
Weight:	1000kg	Dimension(L*W*H):	2200*1000*1600mm	Processing Types:	Juice, carbonated beverage machine
Certification:	CE,BV,SGS,UL	Warranty:	1 year	After-sales Service Provided:	Engineers available to service machinery overseas
Machine name:	electric cip cleaning system	Material:	SUS304,SUS316	Feature:	Automatic, high quality
Control:	Button

Machine description:
(Cleaning In Place) System is used for the cleaning of pipeline and container of the filling system for milk, juice, beverage etc.
A centrifugal pump will be ued in CIP system to convey the cleaning liquid to the pipeline and containers, and then the cleaning liquid will be forced to circulate in the pipelines and containers.
with this kind of cleaning process, the filling system do not need to be aparted for cleaning.
CIP system is total-automatic self-case unit containing a water tank, an acid tank, a lye tank, some necessary pumps, valves and a set of monitor devices, such as temperature sensor, density sensor and liquid level sensor and so on.  Technical not only supply customers a standard CIP unit, but aso manufacture a special CIP system following your special requirement.
CIP unit contains self-automatic control program, including completed cleaning process.  The program includes all-process cleaning program, acid cleaning program and lye cleaning program.  Both of the cleaning water and the dissolvent is acceptable for CIP system.  The temperature and the desity of the cleaning water can be enacted and controlled accurately.  What is more, the density of the cleaning solution can be mixed automatically.
Total-automatic control to provide safety operating interface.
Tota-automatic add acid/alkali depending on the density monitor, which self control the density of the dissolvent.  So that it can reduce the demand of human resource, and make sure the safety of the human.
Adopt the tubular heat exchanger, bear high pressure resistance, no block, and few maintaince fee.
Optimized CIP cleaning function can reduce the times of CIP cleaning.
Reserved interface can be easily connected with the existing equipment.
Automatic CIP Clean CIP System .
