• Motor Power：<4kw
• Pouring Ability：(3-15g),Holes
• Unit Weight：5000kg
• Machine Dimension：3500X600X1400mm
• Capacity：300kg,H
• Transport Package：Wooden Case
• Specification：300kg,h
• Trademark：SHANGHAI TARGET MACHINERY
• Origin：China Shanghai
• HS Code：84382000
• Production Capacity：300kg,H

Basic Info.

Motor Power <4kw Pouring Ability (3-15g)/Holes Unit Weight 5000kg Machine Dimension 3500X600X1400mm Capacity 300kg/H Transport Package Wooden Case Specification 300kg/h Trademark SHANGHAI TARGET MACHINERY Origin China Shanghai HS Code 84382000 Production Capacity 300kg/H

Product Description

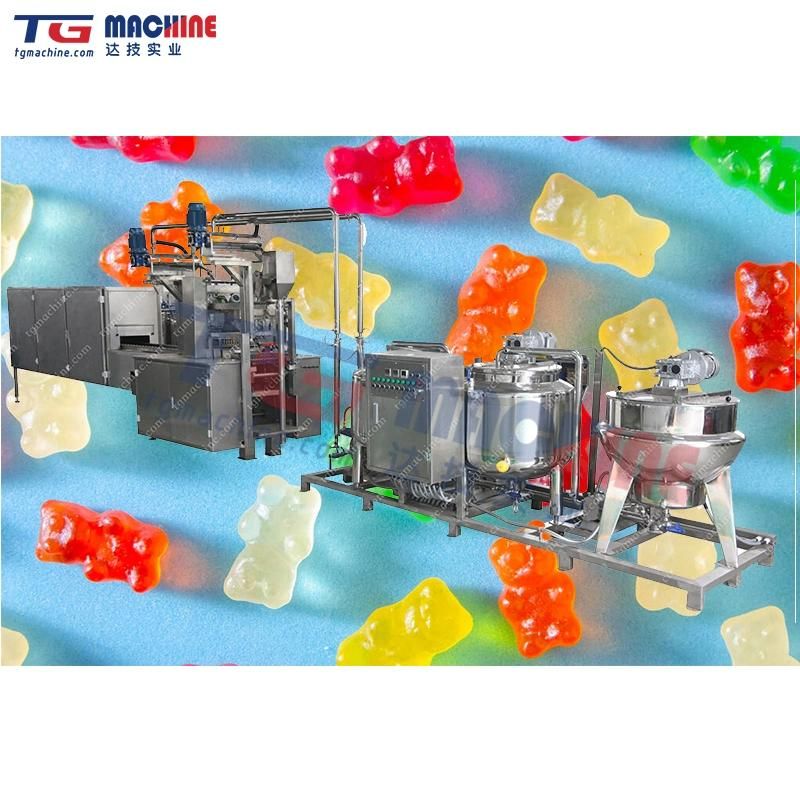

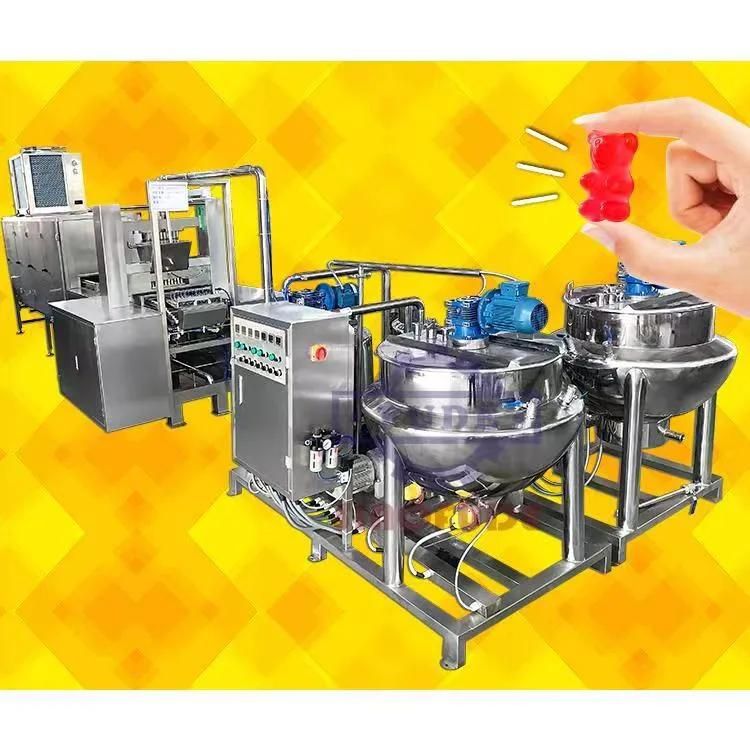

GD150 jelly candy machine
Feature:
Full automatic ,
can make one colour,
left and right two colour,
up and down two colour,
with PLC ,
servo driven control




TECHNICAL SPECIFICATIONS:


Model	GD150Q	GD300Q	GD450Q
Production capacity   ( kg/h)	150	300	450
Rated depositing times(n/min)	20~25	20~25	20~25
Weight of each candies(g): 1. two colors 2. single color	2g~.6g 1.5g~6g	2g~6g 1.5g~6g	2g~6g 1.5g~6g
Electric power needed	8kw/380V	12kw/380V	16kw/380V
Refrigerator	MT160 x1 15,000kcal/h 10.5kw	MT160x2 30,000kcal/h 21kw	MT160x2 30,000kcal/h 21kw
Compressed air consumption Compressed air pressure	0.20m ³ /min 0.4-0.6 Mpa	0.25m ³ /min 0.4-0.6 Mpa	0.25m ³ /min 0.4-0.6 Mpa
Conditions needed for   the cooling system: 1.Room temperature(ºC) 2.Humidity (%)	20~25 55	20~25 55	20~25 55
Conditions needed for   the cooling system: 1.Room temperature(ºC) 2.Humidity (%)	20~25 55	20~25 55	20~25 55
Length of the whole line   (m)	9m	11m	15m
Gross weight           ( Kgs)	Approx.3000	Approx.4000	Approx.5000



FLOW CHART:
Sugar and gelatin dissolving→    mixing→     cooling→ transporting→  depositing →  cooling → de-moulding →following disposalà packing





MAIN EQUIPMENT LIST:
The whole line is comprised of following equipment
MODEL: GD150Q

ITEM NO.	EQUIPMENT
1	Fixed COOKER
2	GEAR PUMP 1''
3	COOLING TANK
4	TRANSPORTING PUMP
5	COLOR AND FLAVOR MIXING SYSTEM

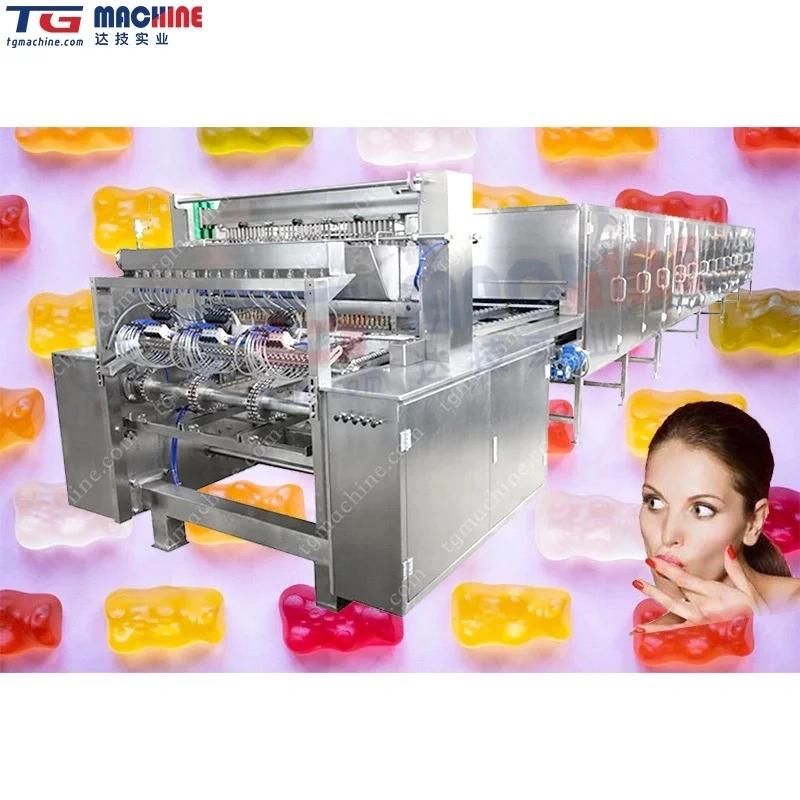

6	JELLY CANY DEPOSITOR
7	COOLING TUNNEL
8	MOULD(shape can be customize)
9	ELECTRICAL CABINET
10	DRYING ROOM SYSTEM
