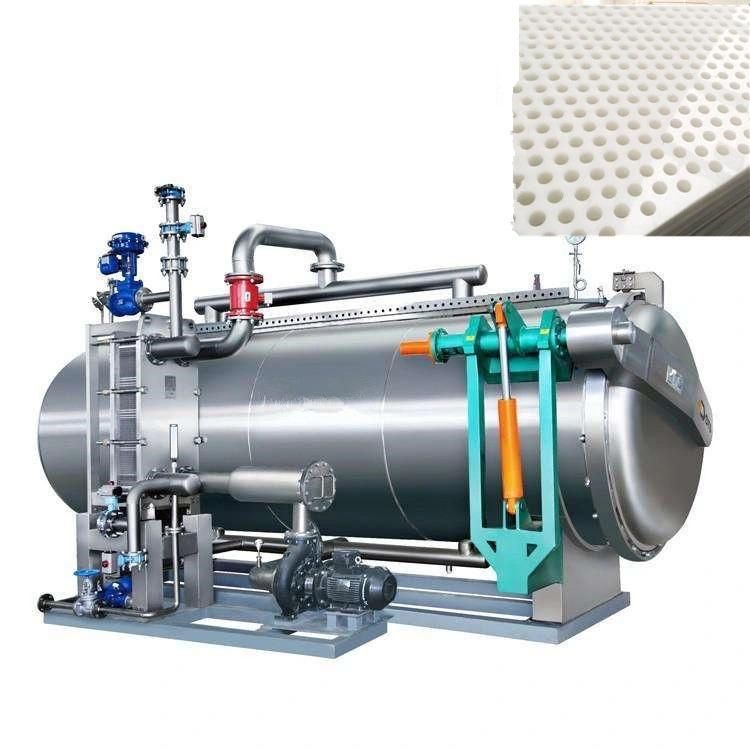

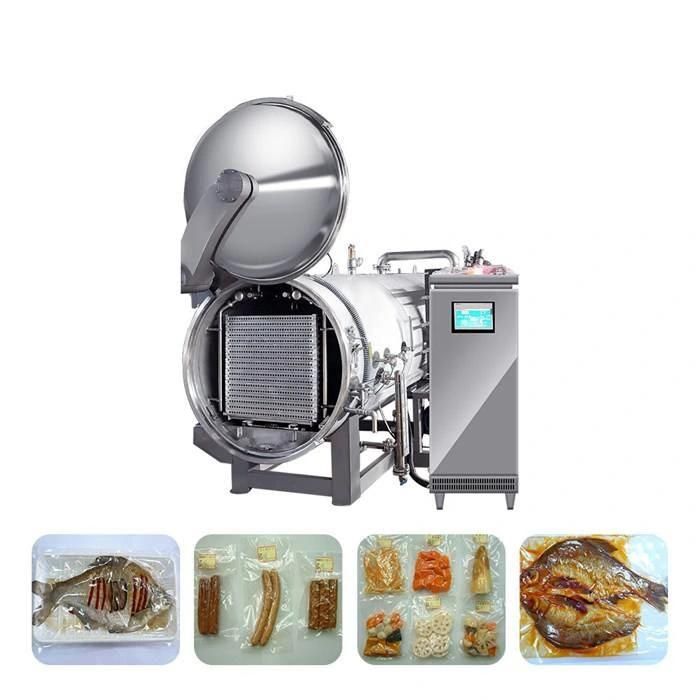

High Efficiency Food Autoclave Sterilizer
Shanghai Genyond Technology Co., Ltd.- Processing Material：Packed Food
- Application：Sterilization
- Customized：Customized
- Certification：CE, ISO9001
- Power Source：Electric
- Automatic Grade：Automatic
Base Info
- Turn-Key Project：Automation
- Transport Package：Wooden Packing
- Specification：as customer capacity
- Trademark：GENYOND
- Origin：China
- HS Code：8419899090
- Production Capacity：10000sets Per Year
Description
Spray-type superheated water sterilizeritem specification sterilizer diameter φ1000mm φ1200mm φ1400mm φ1600mm φ1800mm sterilizer length (mm) 2000 3000 4500 6000 6000 cage frame quantity (unit) 2 3 4 6 6 max. working pressure (Mpa) 0.35 0.35 0.35 0.35 0.35 max sterilization temperature (°C) 137 137 137 137 137 steam pressure (Mpa) 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 cooling water pressure (Mpa) 0.3-0.4 0.3-0.4 0.3-0.4 0.3-0.4 0.3-0.4 compressed air pressure (Mpa) 0.5-0.7 0.5-0.7 0.5-0.7 0.5-0.7 0.5-0.7 loading capacity (kw) 7.5 11.5 15 22 34 overall dimension (mm) 3160*2230*3100 4280*2450*3300 56160*2960*3520 7680*34000*3860 7980*38900*4350
Features:
Advanced body model: pressure tank of this sterilizer is designed and built comply with GB150 or equivalent standard, all main structure adopt finite element analysis and optimization design
Indirect heating and cooling, avoid recontamination
Small amount of water rapid circulation enable to reach the sterilizing temperature shortly
Atomized superheated water sprayed from fan nozzles,no dead corner
Multi-stage heating, to retain the original color and taste of the product
The pressure adjusted automatic due to constant changed temperature,less product deformation
Humanized & dedicated control system
Perfect monitoring device, online monitoring and recording operation condition
Advanced and stabled Siemens control system, enable our clients to find service supplies worldwide and shorten the down time
Large device can be equipped with heat water recycle system (as per request), in order to further energy efficiency and water efficiency
Shake and stir the food inside retort pouch by rotation and swing,to significant shorten heating and cooling time and prevent quality decrease
Features:
Advanced body model: pressure tank of this sterilizer is designed and built comply with GB150 or equivalent standard, all main structure adopt finite element analysis and optimization design
Indirect heating and cooling, avoid recontamination
Small amount of water rapid circulation enable to reach the sterilizing temperature shortly
Atomized superheated water sprayed from fan nozzles,no dead corner
Multi-stage heating, to retain the original color and taste of the product
The pressure adjusted automatic due to constant changed temperature,less product deformation
Humanized & dedicated control system
Perfect monitoring device, online monitoring and recording operation condition
Advanced and stabled Siemens control system, enable our clients to find service supplies worldwide and shorten the down time
Large device can be equipped with heat water recycle system (as per request), in order to further energy efficiency and water efficiency
Shake and stir the food inside retort pouch by rotation and swing,to significant shorten heating and cooling time and prevent quality decrease
