• Capacity：300kg,H
• Product Name：Jelly Candy Making Line Machine for Sale
• Transport Package：Wooden Case
• Specification：CE, ISO
• Trademark：shinwei brand
• Origin：Shanghai
• HS Code：84382000
• Production Capacity：300kg,H

Basic Info.

Capacity 300kg/H Product Name Jelly Candy Making Line Machine for Sale Transport Package Wooden Case Specification CE, ISO Trademark shinwei brand Origin Shanghai HS Code 84382000 Production Capacity 300kg/H

Product Description

Prifile:

JelIy candy processing line is an advanced  and continuous  plant for making  different size of
jelly candies (QQ candies) .It is an  ideal equipment  which can produce out good  quality products with the saving of both the manpower and the space occupied This depositing  line consists of jacket
dissolving cooker,  gear pump, storage strainer,  storagetank, discharging pump, color & flavor jigger,

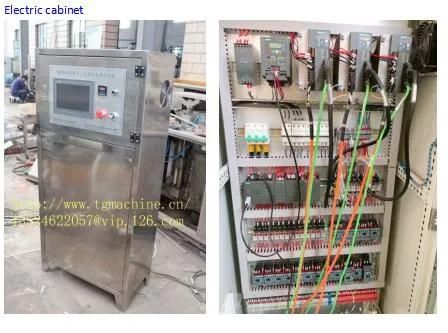

color &flavor mixer,  depositor, cooling tunnel,  electric control  cabinet, etc.

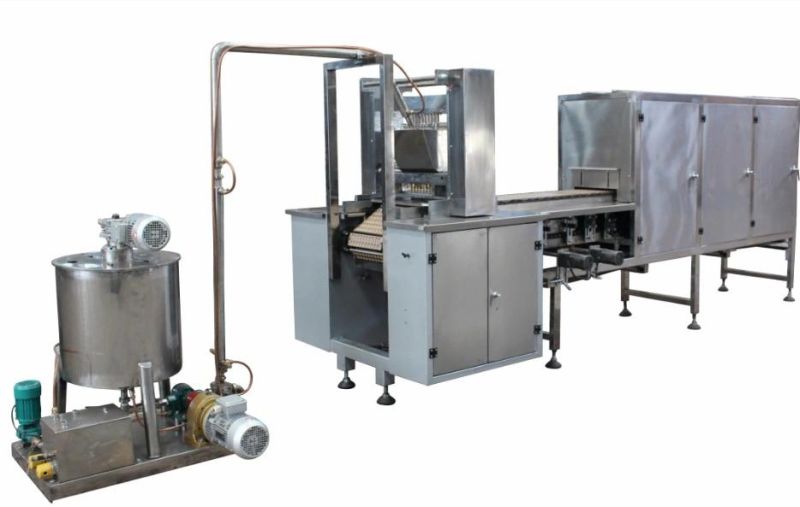

Production Line:

One of Factory show:

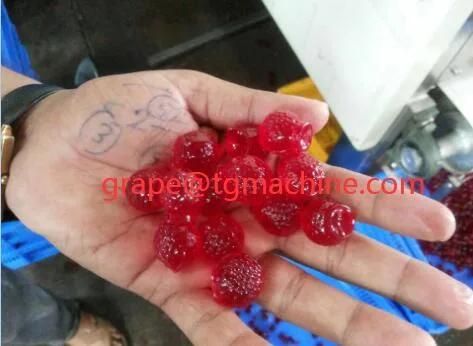

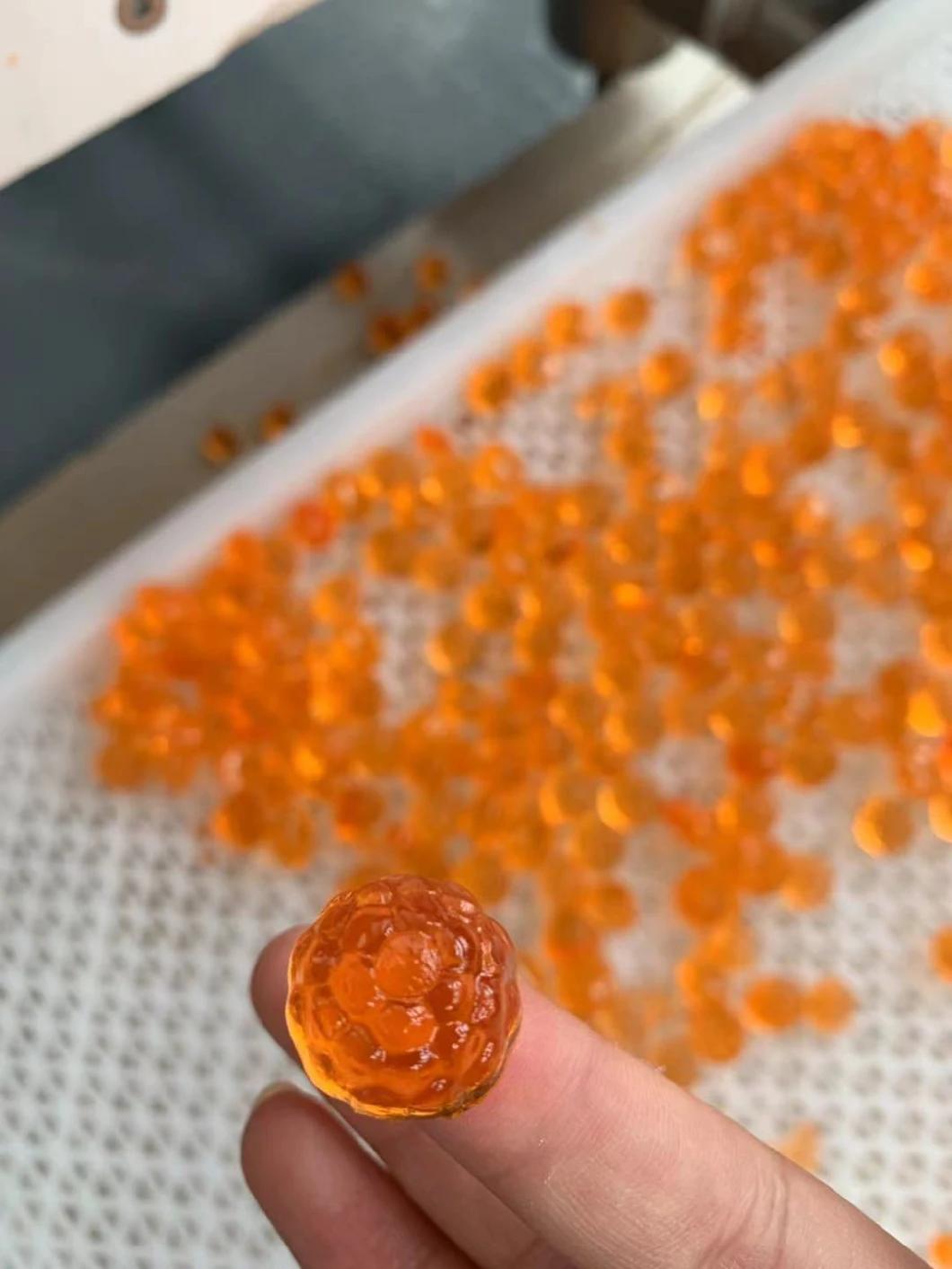

Gummy candy show:


Machine details:

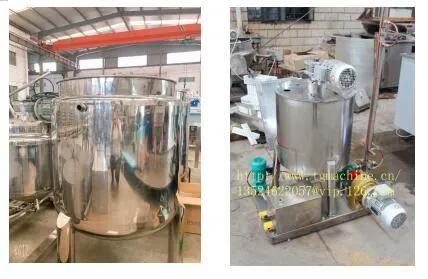

Holding tank:







TECHNICAL SPECIFICATIONS:


Model	GD150Q	GD300Q	GD450Q
Production capacity   ( kg/h)	150	300	450
Rated depositing times(n/min)	20~25	20~25	20~25
Weight of each candies(g): 1. two colors 2. single color	2g~.6g 1.5g~6g	2g~6g 1.5g~6g	2g~6g 1.5g~6g
Electric power needed	8kw/380V	12kw/380V	16kw/380V
Refrigerator	MT160 x1 15,000kcal/h 10.5kw	MT160x2 30,000kcal/h 21kw	MT160x2 30,000kcal/h 21kw
Compressed air consumption Compressed air pressure	0.20m ³ /min 0.4-0.6 Mpa	0.25m ³ /min 0.4-0.6 Mpa	0.25m ³ /min 0.4-0.6 Mpa
Conditions needed for   the cooling system: 1.Room temperature(ºC) 2.Humidity (%)	20~25 55	20~25 55	20~25 55
Conditions needed for   the cooling system: 1.Room temperature(ºC) 2.Humidity (%)	20~25 55	20~25 55	20~25 55
Length of the whole line   (m)	9m	11m	15m
Gross weight           ( Kgs)	Approx.3000	Approx.4000	Approx.5000


FLOW CHART:
Sugar and gelatin dissolving→ mixing→ cooling→ transporting→  depositing → cooling → de-moulding →following disposalà packing

COMPANY INFORMATION:
Shanghai Target Industry Co., Ltd is the sales and service company for Shanghai SHINWEI Machinery Manufacturing Co., Ltd which is the first manufacturer to build the complete production line for depositing
hard candies in China and has accumulated 40 years' fabrication experience. It is also one of the leading
and professional exporters in China by providing customers home and abroad with high quality confectionery, chocolate, biscuit and packaging machinery. Our machineries have been exported to East European, south America, middle east, southeast Asia.


Strength:
Why choose us?
a.Established in 1982, nearly 20-year experiences in the area of machinery manufacturing of food processing;
b.Cooperate with well-known enterprises for some mechanical parts;
c.Adopt environment-friendly and food-grade materials;
d.Offer customized machineries and give suggestion for plant layout.
Service:
After-sale services for all the customers
a. Free training of machine installation, operation and maintenance will be provided;
b. Some spare parts will be sent together with the machine for free and some spare parts are always at favorable price for regular customers;
c.Technical support will be offered by call, email or video etc;
d.If necessary, our engineer will go to your factory for machine installation, adjustment or maintenance.
Shippment:
Wooden packing as per export standard.
