• Model NO.：HT-6L20
• Application：Milk
• Customized：Customized
• Transport Package：Fumigation-Free Wooden Case
• Specification：On The Specification
• Trademark：HENTO
• Origin：Henan, China(Mainland)
• Production Capacity：0.5-1t,H

Basic Info.

Model NO. HT-6L20 Application Milk Customized Customized Transport Package Fumigation-Free Wooden Case Specification On The Specification Trademark HENTO Origin Henan, China(Mainland) Production Capacity 0.5-1t/H

Product Description

Good Performance Ice Cream Pasteurizer / Milk Pasteurization Equipment / Milk Pasteurizer Machine1.Product Description

UHT super temperature instant sterilizer suitable for fresh milk, juice, beverage, frozen sucker, and ice cream paste, soy sauce, soybean milk, condensed milk, wine and other liquid materials of instantaneous sterilization, sterilization of liquid materials can also be used for. The device of feeding and discharging adopt t cock, flow can be according to need to adjust, use and reliable.
1. Continuous production, sterilization time is very short.
2. Due to the shorter time for heating can obtain high quality products.
3. With ultra high temperature sterilization, the sterilization efficiency is very high.
4. With centrifugal pump series or high pressure homogenizer is used, the application range is very wide, suitable for high viscosity material sterilization.
5. With cold and hot material is used on due to the design of heat exchange equipment of waste heat utilization economic effect, so the electric consumption is small.
6.Have electric power and steam power,two kinds.If you have boiler or steam generator,the steam power is more suitable.If not,the electric power is more cost-effective.

2.Technical Parameter


Model	HT-6L10	HT-6L20
Capacity	0.5-1T/H	1.5-2T/H
Temperature	115-135°C	115-135°C
Heating Time	4-6S	4-6S
Discharge Temperature	<65°C	<65°C
Heating Power	32kw	48kw
Oil Pump Power	0.75kw	0.75kw
Material	Stainless steel	Stainless steel
Voltage	380V 50Hz	380V 50Hz
Heating method	Electric heating	Electric heating
Dimension	1000*1000*1500	2200*1300*1700
Weight	400kg	800kg

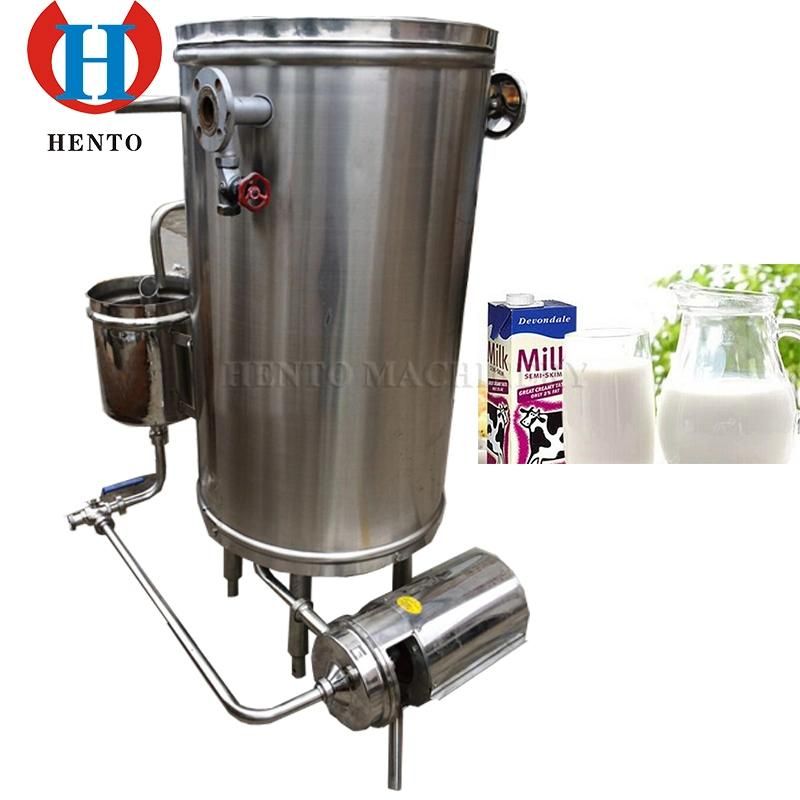

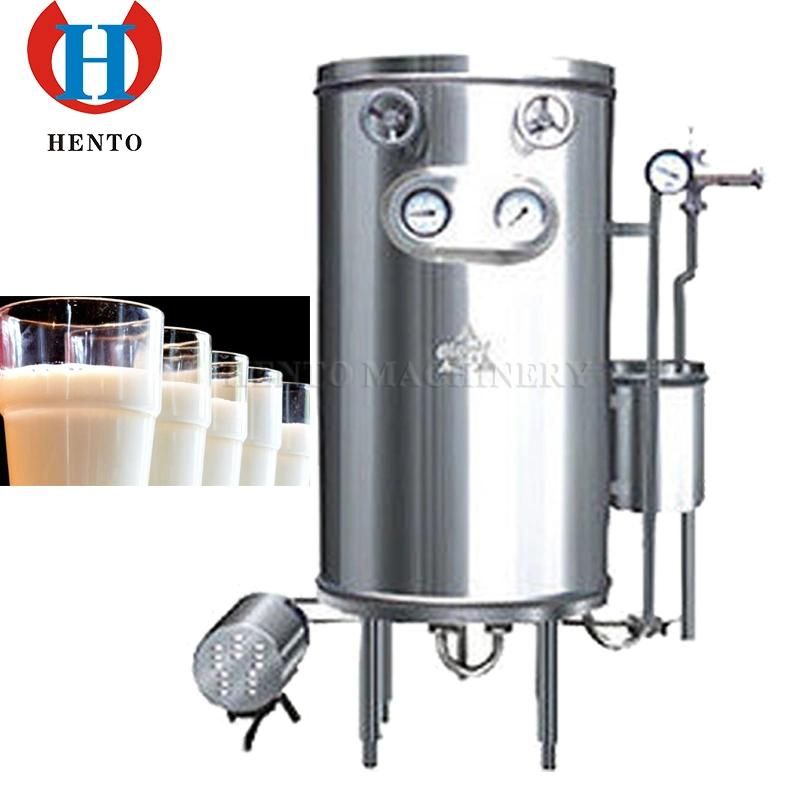

3.Product Pictures


4.Package & Shipping


5.Company Certificates


6.Our customers


7.Contact Us
