• Model NO.：FM-400
• Processing Material：Forest Products
• Process：Concentration and Dry
• Transport Package：Wooden Boxes
• Specification：1600*500*1555 mm
• Trademark：sanyuantang
• Origin：Henan, China

Basic Info.

Model NO. FM-400 Processing Material Forest Products Process Concentration and Dry Transport Package Wooden Boxes Specification 1600*500*1555 mm Trademark sanyuantang Origin Henan, China

Product Description


                                                                    FM honey thickener

Honey processing machine instructions

Honey processing machine main used mechanical filters and low-temperature vacuum concentrated to remove impurities and excess water, Get a higher degree of vacuum systems and the reasonable structure of the low temperature evaporation device is the key to the processing technology of bee products. This equipment has fully realized honey enrichment process special requirements, and to meet the aspirations of bee products processing enterprises.

Honey processing machines technical parameters


Model	FM-400	FM-600
Output	0.5t /8hrs	1.2-1.5t /8hrs
Voltage	220v/380v   3phase	220v/380v   3phase
Power	14kw	16kw
Dimension	1600*500*1555 mm	1750*600*1660 mm

 Heater, concentrated cans, water jet vacuum device, working platform components.

Process of honey processing machine

The original honey  → Coarse filtration → Agitation, preheating → Fine filtration → Low temperature, concentrated → Filling

Principle of honey processing machine

By the theory that under high Vacuum condition,boiling point of water will become low and then water in honey can evaporate rapidly and the to get high concentration honey,this set can melt honey crystals, remove dust inside, sterilization, and ext to guarantee quality of honey

Features of honey processing machine

1.This set of Equipment are made of 304 stainless steel, easy to operate, reliable, efficient, vacuum suction honey.
2.They can achieve high vacuum and low concentration temperature is ideal for honey processing equipment.

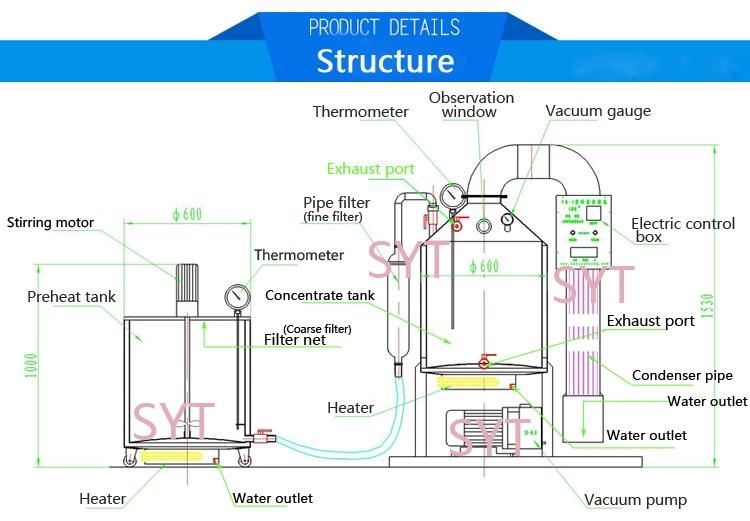

3.Apparatus comprising: a preheating tank, filter, concentrate tank, a condenser, a vacuum pump.
4.The honey thickener machine can reach high vacuity and lower thickening temperature.
After concentrating the materials will not change color, not change flavor, the quality of materials after concentrating will be very good.
5.Good designed of the structure make the machine small, low noise, easy to operate.

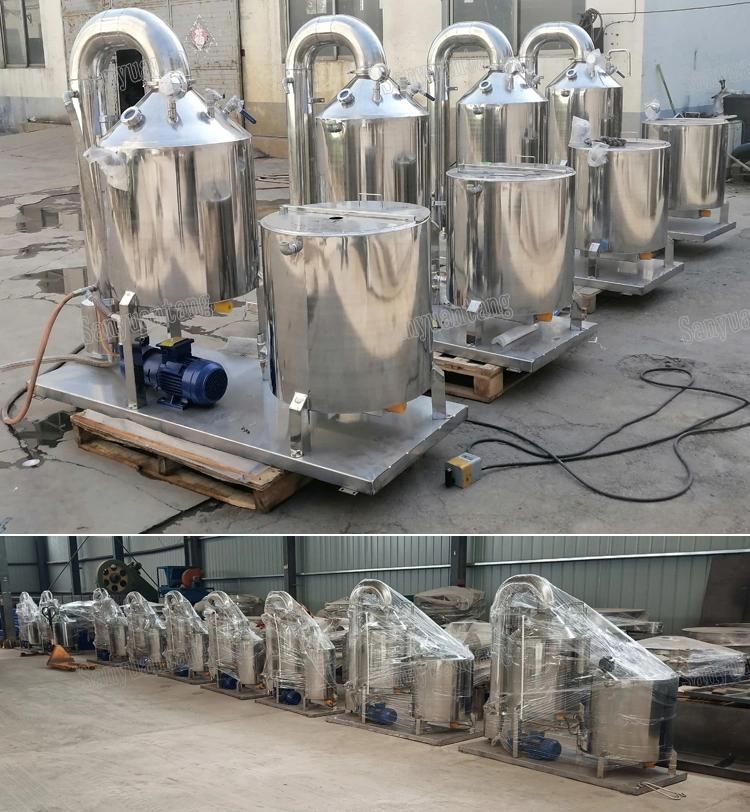

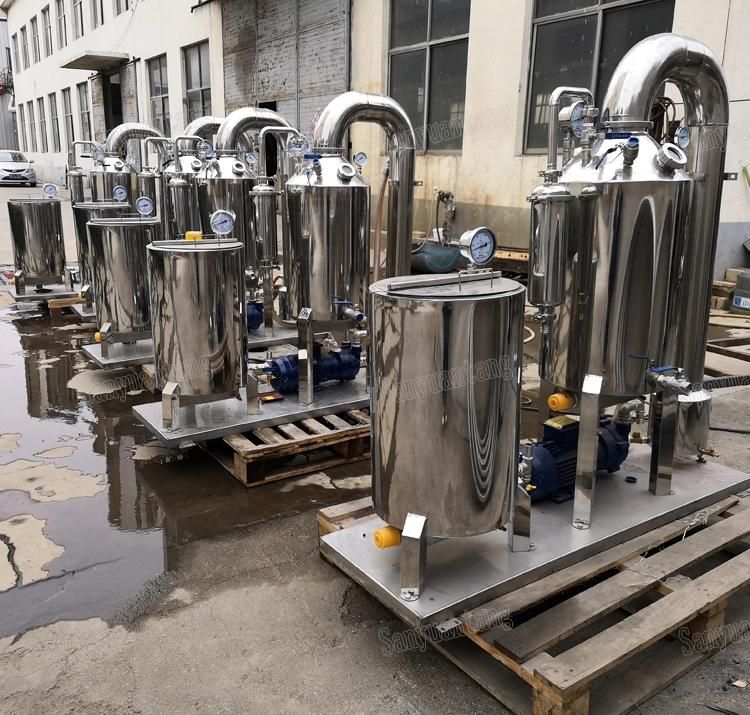

Product Show

Company Information

      Xinxiang Sanyuantang Machine Co.,Ltd.ISO9001 certified enterprise.Our company is located in XINXIANG CITY HENAN PROVINCE CHINA,We are one of leading manufacturer who specialize.
        At present, the main range of products include kinds of series of Vibrating Screen,Conveyor Equipment,Honey Processing Machine,etc.
        We have advanced manufacture equipment, abundant technology power, complete testing measures, strict management system and favorable corporation credit-standing.

Our products
1.Vibrating screening;
2.Conveyor equipment;
3.Honey processing machine;
4.Related equipments and spare parts.
