High Performance Flameless Explosion Venting Device for Flour Mill
ZHENJIANG AGS MACHINERY CO., LTD.- Transport Package:Wood Case
- Specification:540x890x900
- Origin:China
Base Info
- Model NO.:PROA,PROB,PROC
- Production Capacity:5000set,Year
Description
Basic Info.
Model NO. PROA/PROB/PROC Production Capacity 5000set/YearProduct Description

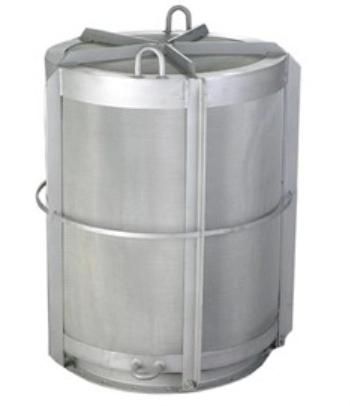

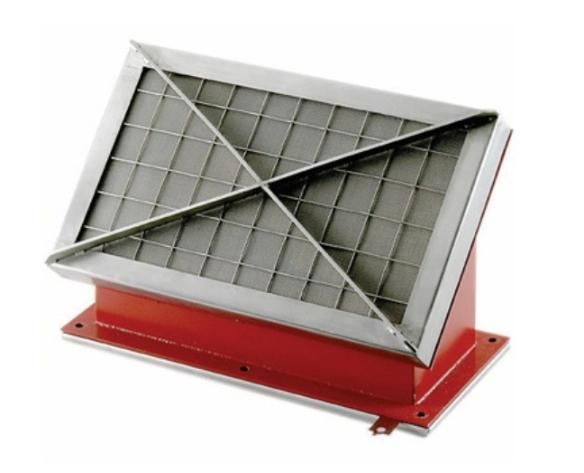

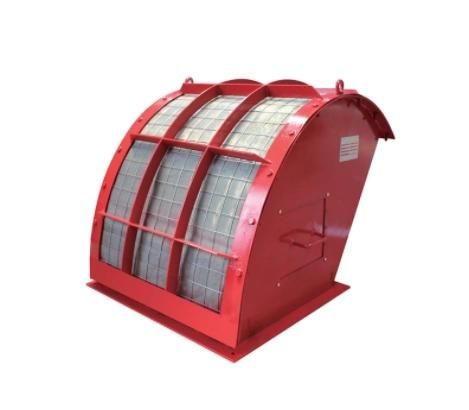

Flameless Explosion Venting DeviceThe flameless explosion venting devices are mainly used for the protection of indoor dust explosion, with no other operation cost, easy installation and no need to install the pressure relief conduit. It is at least composed of explosion relief device and fire resistance element.
Type | A(mm) | B (mm) | C (mm) | D (mm) | d-Opening diameter (mm) | n-Number of openings (pc) | Weight (kg) |
PRO A-1 | 390 | 710 | 635 | 410 | 14 | 18 | 40 |
PRO A-2 | 540 | 890 | 900 | 580 | 14 | 22 | 74 |
PRO A-3 | 666 | 1000 | 1130 | 735 | 14 | 34 | 109 |
PRO A-4 | 996 | 1198 | 1660 | 1070 | 14 | 42 | 215 |
Type | A(mm) | B (mm) | C (mm) | D (mm) | d-Opening diameter (mm) | n-Number of openings (pc) | Weight (kg) |
PRO B-1 | 225 | 675 | 265 | 465 | 14 | 20 | 24 |
PRO B-2 | 305 | 625 | 335 | 530 | 14 | 18 | 28 |
PRO B-3 | 390 | 710 | 420 | 620 | 14 | 18 | 35 |
Type | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | d-Opening diameter (mm) | n-Number of openings (pc) | Weight (kg) |
PRO C-1 | 315 | 580 | 485 | 320 | 350 | 5 | 375 | 11 | 12 | 30 |
PRO C-2 | 315 | 879 | 633 | 320 | 350 | 5 | 375 | 11 | 12 | 80 |
PRO C-3 | 445 | 1075 | 633 | 450 | 486 | 5 | 525 | 13 | 12 | 87 |
PRO C-4 | 505 | 1286 | 705 | 510 | 550 | 6 | 585 | 13 | 20 | 126 |
PRO C-5 | 625 | 1385 | 1020 | 630 | 680 | 6 | 705 | 13 | 20 | 243 |
PRO C-6 | 815 | 2215 | 1020 | 820 | 860 | 6 | 895 | 13 | 24 | 291 |
