• Model NO.：WSBS
• Application：Milk, Yogurt, Juice
• Customized：Customized
• Voltage：Customized
• Material：SS304 or Customized
• Condition：New
• Capacity：300L-20000lph
• Pasteurizer Temp：65-95 Celsius Degree
• Holding Time：15 or 30seconds
• Weight：100-1000kg
• Key Selling Points：Long Service Life
• Transport Package：Wooden Case,Box
• Specification：1800x1600x2000mm
• Trademark：WS
• Origin：Shanghai, China
• Production Capacity：55sets,Month

2.  general instructions

    there are there kinds of sterilized equipments. they are plate sterilized machine, drivepipe sterilized machine, UHT sterilized equipment

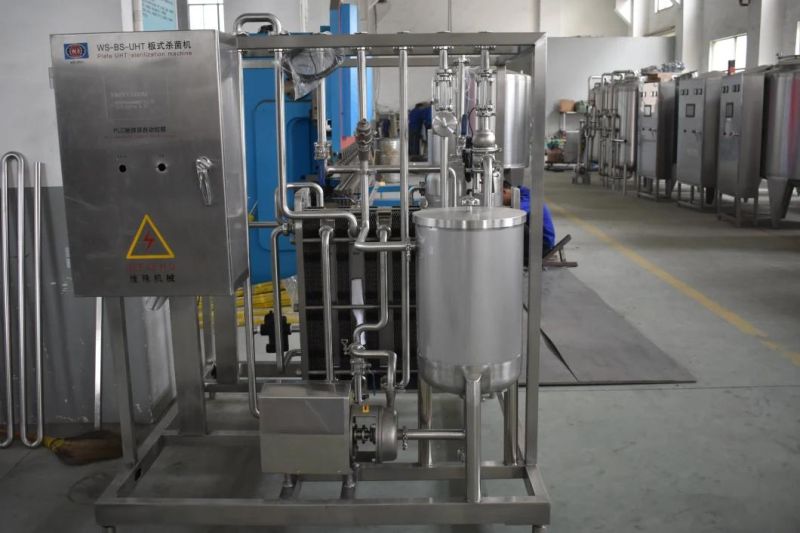

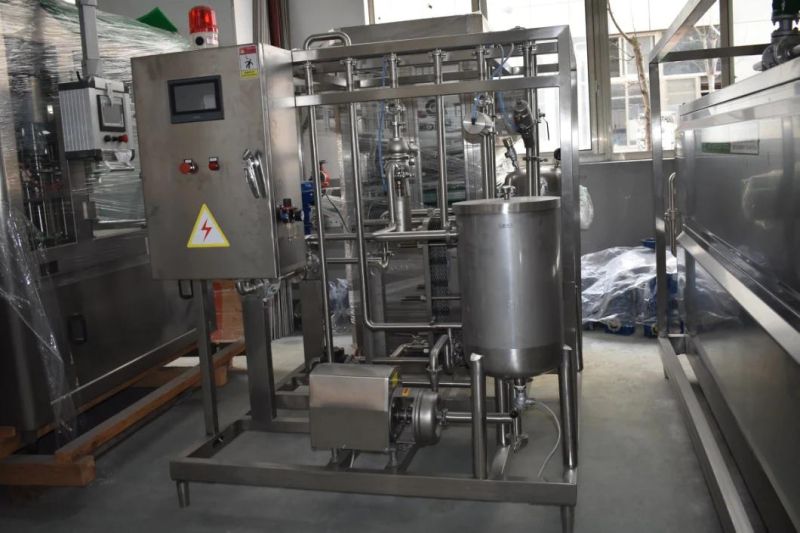

 1) plate sterilized

 This machine is complete automatically(PLC control, touching view) Main fittings: material pump, balance bucket, hot water system,  Temperature control and tape recorder,and electric)



Technical parameters:

5°C→65°C (homogenization)→120°C(15s)→25°C5°C

 Product Paramenters   380V/50HZ/3Phase or 220V/Single phase/50Hz or customized

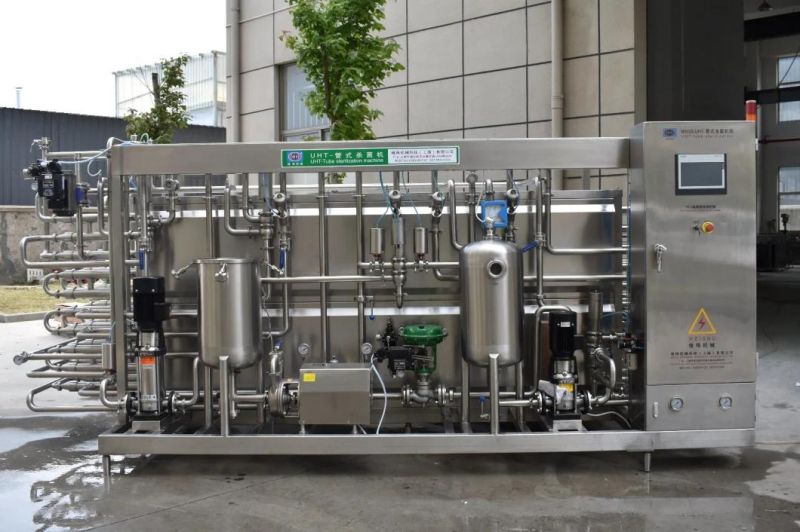

1. Usage: Pipe sterilizer can take hot process on the dairy production, liquid foods beverage, concentrate jam, biology,

medicine etc. sterilizer of other model.

2. Main structure: Material tanks, sterilizer tank, material pump, exheater, hot water cross occur, controller etc.

3.Working principle: pre-sterilizing, sterilizing for the pipe which material will touch, use the hot water cycle in the pipe,

more than 20 min, then lower the pipe temp., starting sterilizing for the material. The material which had disposal to the

material tank, use the pump sending to pipe heat exchanger. Then put the material into heater pipe and sterilizing

according to require time, and after sterilizing to the keeping pipe, then into the cooling pipe and sending to the filling

machine.
