• Model NO.：HT-CB300
• Application：Compressed Biscuits Forming Making Machine
• Customized：Customized
• Transport Package：Fumigation-Free Wooden Case
• Specification：on the specification
• Trademark：HENTO
• Origin：Henan, China (Mainland)
• Production Capacity：80~90kg,H

Item

Name

Main parameter

unit

Quantity

1

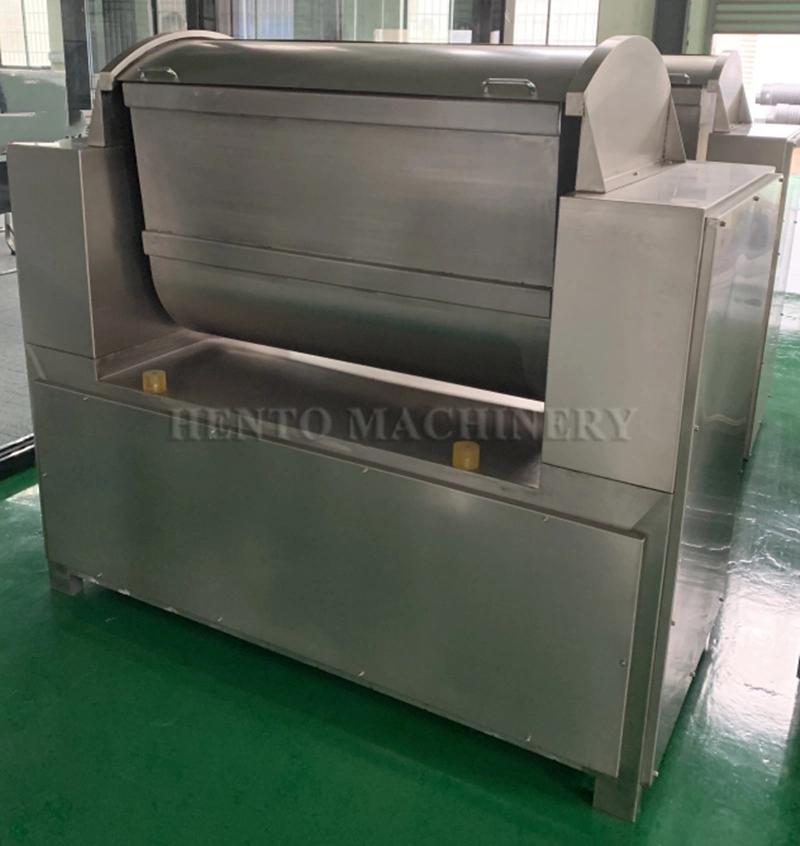

Flour mixer

Model :50 type

Power:3.55kw

Size:1110*630*1070mm

Weight:290kg

Mixing time:5-15min

Material:

Hopper :stainless steel

Frame :carbon steel

Motor :Made in China

SET

2

 2

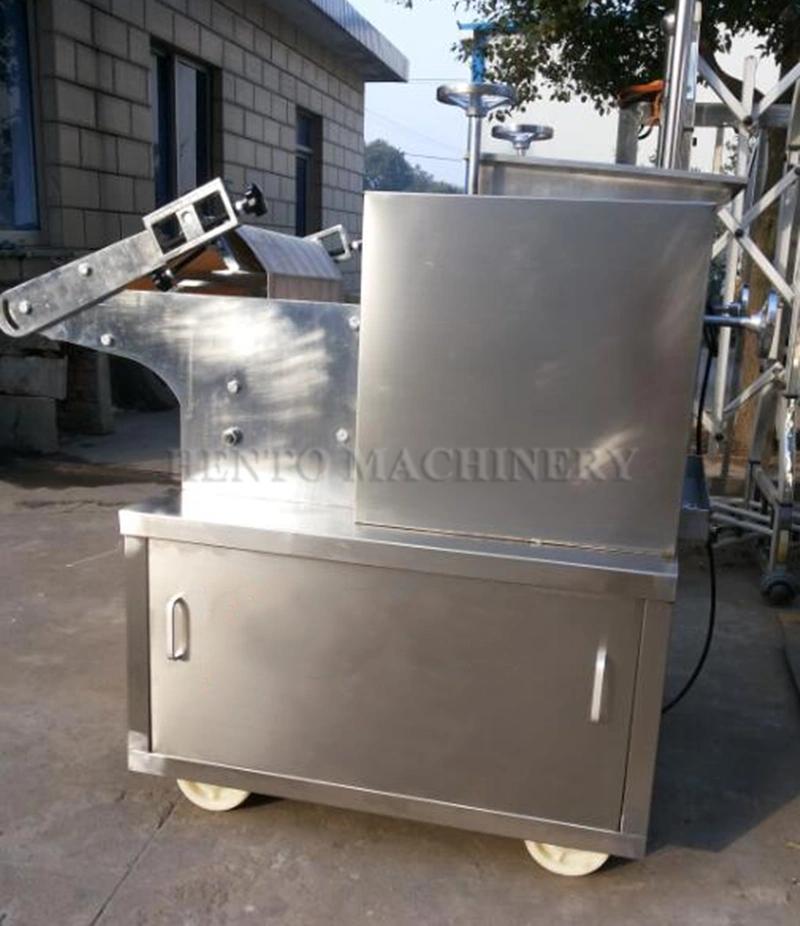

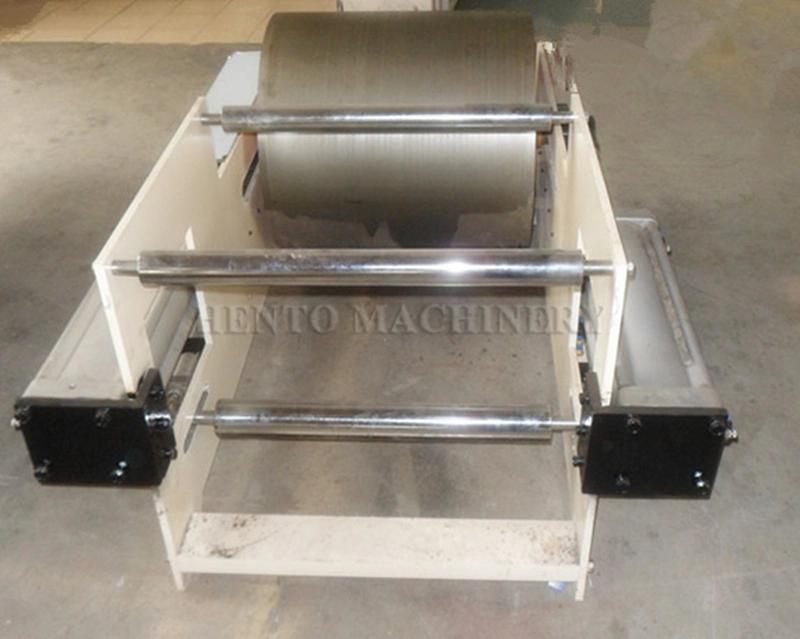

Biscuit Moulder

Model:300 model

Power:2.2kw

Size:1600*710*1100mm

Weight:350kg

Capacity:150kg/h

Main material:

Surface and place which touch foods is stainless steel

Driver part : carbon steel

SET

1

3

Inlet oven

Model :300 model

Size:1500*700*800mm

Weight:450kg

Main material :

Surface :stainless steel

Driver frame :carbon steel

SET

1

4

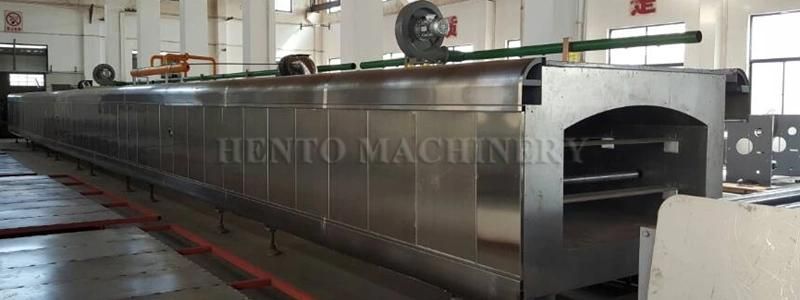

Tunnel oven heating by electrical

Model:300 model

Power:65kw

Size:12000*980*1200mm

Weight:4000kg

Capacity:90kg/h

Material :

Surface : stainless steel

Belt material : stainless steel

Far infared heating pipe

Automatic temperature control

Electrical heating oven ,saperate zone saperate control

M

12

5

Oulet oven

Model:300 model

Power:2.2kw

Size:1600*750*800mm

Weight:550kg

Main parameter:

Copper :stainless steel

Driver frame : carbon steel

SET

1

6

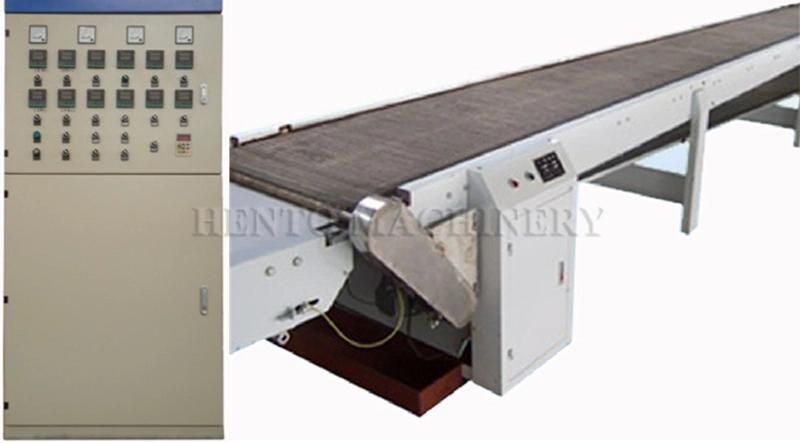

Electrical cabinet

Nodel:300 model

Size:800*450*1600mm

Weight:250kg

SET

1

7

Cooling conveyor

Model:300

Power:1.1kw

Size:4000*700*700mm

Weight:200kg

Material :stainless steel

M

4

8

Biscuit crusher

Power:4kw

Size:1360×800×600

Weight:300kg


SET

1

9

Compressed biscuit machine

Power: 5.5kw

Dimension:900×800×1400

Weight: 400kg

SET

1

10

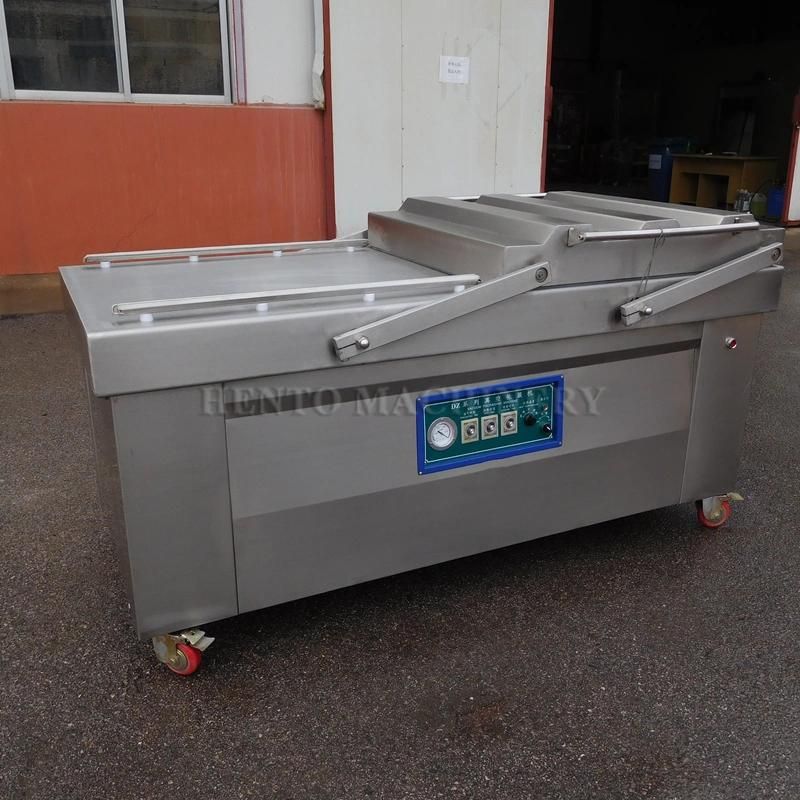

Vaccum packing machine

Model : KH-400

Vacuum size : 420*440*120mm*2

Sealing length :400mm*2

Vaccum room pressure :≤1KPA

Capacity : 2-4 times /min

Voltage : as per customer demand

Power :1.55kw

Size :920*700*1000mm

Weight : 180kg

SET

1

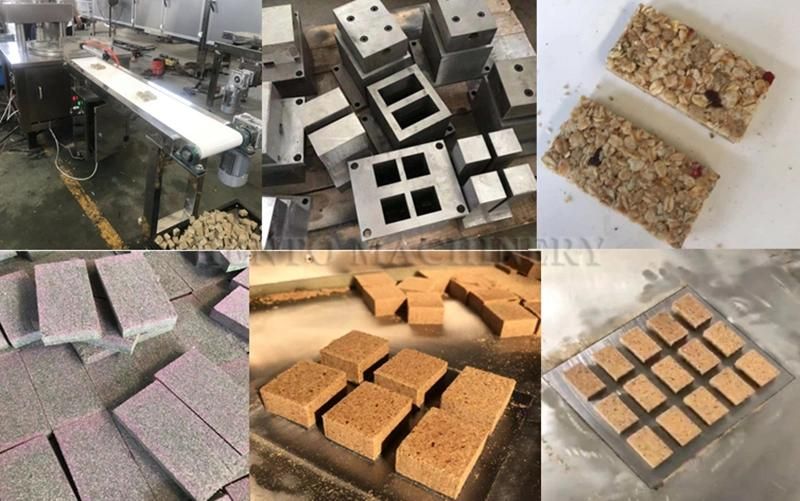

3.Product Pictures


4.Packing & Shipping


5.Company Certificates


6.Our Customers


7.Contact Us
If you need further information, please contact us freely, we will do our best to cooperate with you.
