Chocolate Cored Cream Balls Making Machine Hot Sale Snack Equipment
Foshan Shunde Skywin Foodstuff Machinery Co., Ltd.- Usage：Biscuit, Icecream
- Power Source：Electric
- Timing Device：With Timing Device
- Type：Production Line
- Voltage：380V
- Customized：Customized
Base Info
- Touch Screen：Siemens Brand
- Belt：PU
- Material：304 Stainless Steel
- Package：Full Auto
- Motor：Sew
- Capacity：150kg,H
- Transport Package：Plywood Boxes
- Specification：2000kgs
- Trademark：Skywin
- Origin：Guangdong
Description
Above capacity is base on each wafer sheet weight 50g/pc,wafer sheet :cream=1:1.3
MAIN PART OF WAFER PRODUCTION LINE

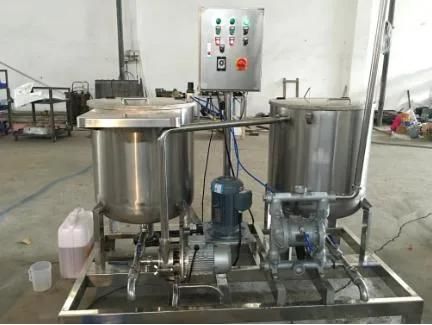

1.Mixer
·This model is an integrated mixer, which is specially used in the wafer production system. The machine includes: batter mixing tank, storage tank, transmission pump and its accessories for the transfer of batter. The slurry mixing tank and the control electric box are made of N304 stainless steel, and the control electric box is required to have good tightness. The capacity of the batter can be converted from 25 kg of flour to 65 kg of batter after 5 minutes of mixing.
2.Baking Oven
·This equipment is very important in the waffle production line. The waffle baking system uses LPG to heat the baking board, which is controlled by a German Siemens PLC. The function of the oven is to automatically fill the baking board with batter until the baked waffle comes out of the oven.·Baking evenly and producing quality wafer wafer for further processing, in the PLC internal with a PID controller for automatic control of the oven temperature, the controller required signal acquisition by the United States Raytime production of infrared temperature detector to provide.

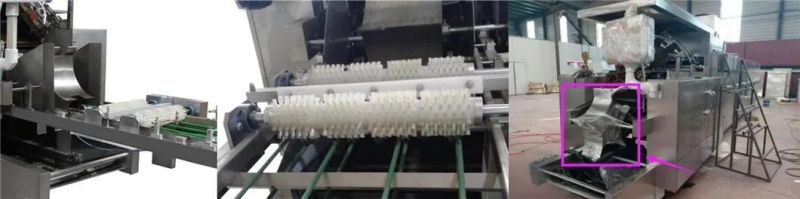

3.Splicing Machine

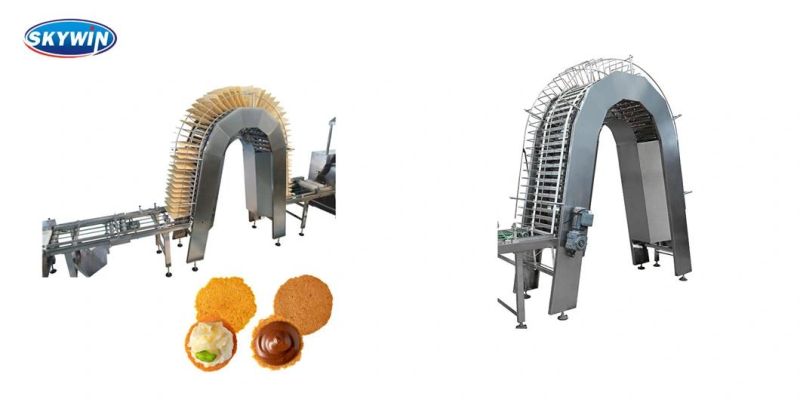

·Wafer splicing machine will bake good wafer into cooling channel, transmission and gently wipe out bread slice of the powder on the head, to roast hot wafer piece will not damage, at the same time, through the sensor to identify unqualified products and collected through the shredder secondary utilization of all transmission components in contact with food are made by stainless steel and food grade materials.4.Vertical cold sheet machine

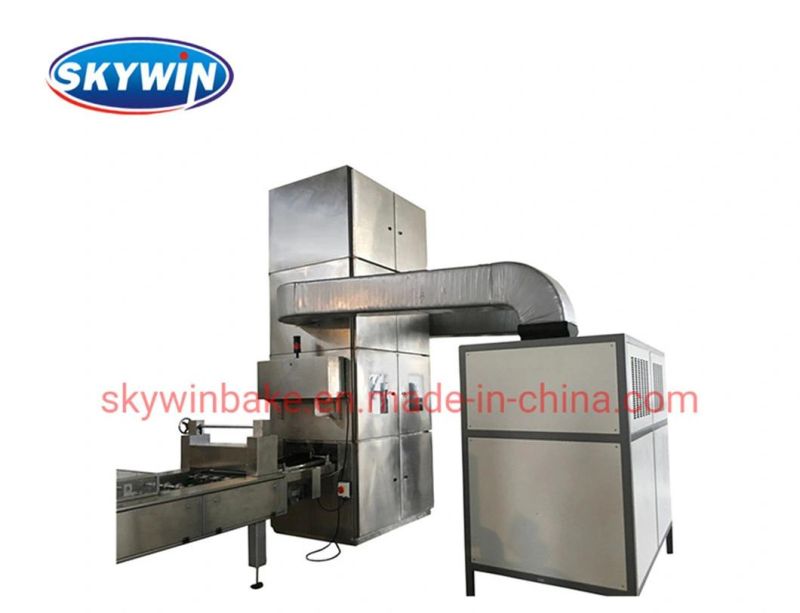

·This machine can improve the natural cooling effect of wafer and gently transport wafer. The main function of this machine is to ease the thermal stress of wafer when baking. If wafer cannot be gently cooled, it will be easily broken by small impact due to the influence of thermal force.

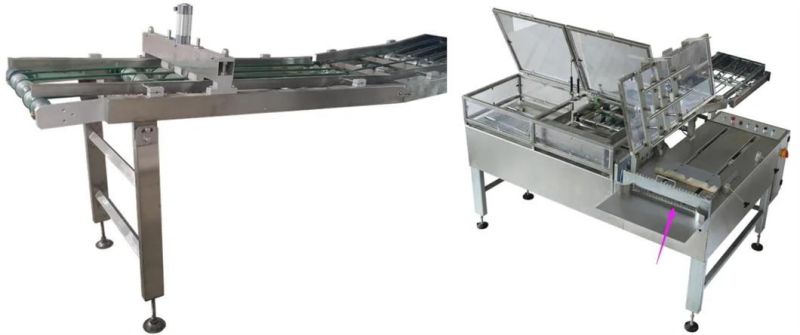

5.Picking Machine
·The function of the machine is used in the collection of cake pieces; If there is a temporary failure in either one of the coating machine and cooling chamber of the wafer production line, the machine will automatically collect the qualified wafer continuously discharged from the oven after receiving the PLC instruction, and then put the wafer into use when the fault treatment is completed.6.Cream coating machine

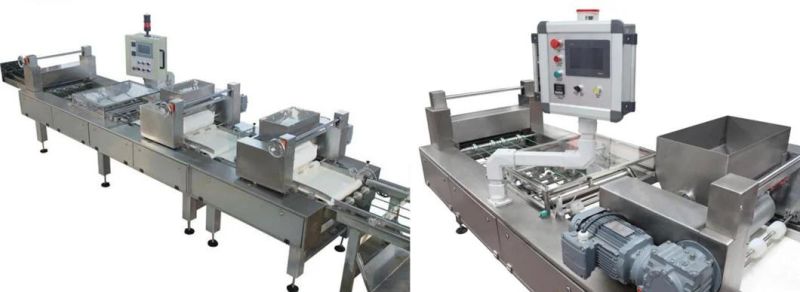

·This machine is an important machine to determine the quantity distribution of wafer and cream layer. It has the following functions: Apply cream layer on the cooled wafer, evenly spread cream and apply each layer of cream on each layer of cake, and then slightly pressure to combine cake and cream.7.Vertical refrigerator (air cooled)
·Cooling the waffle makes the waffle firm enough for easy cutting and packaging. Cooling the waffle ensures a clean cut.8.Cutting Machine
·The mechanical cutting machine is mainly used for cutting the wafer cake block, the lamination number can be controlled according to the requirements, the cutting size can be prefabricated tool carrier replacement, the machine cutting is mechanical control (non-pneumatic), so it can be gently adjusted through the machine, vertical and horizontal cutting conversion can be completed automatically.
Pr-Sales Service
*Inquiry and response immediately
*Sample testing service
*Factory visit.
*Special design plan
After-Sales Service
*Machine installation training
*Engineers always online to solve your problem.

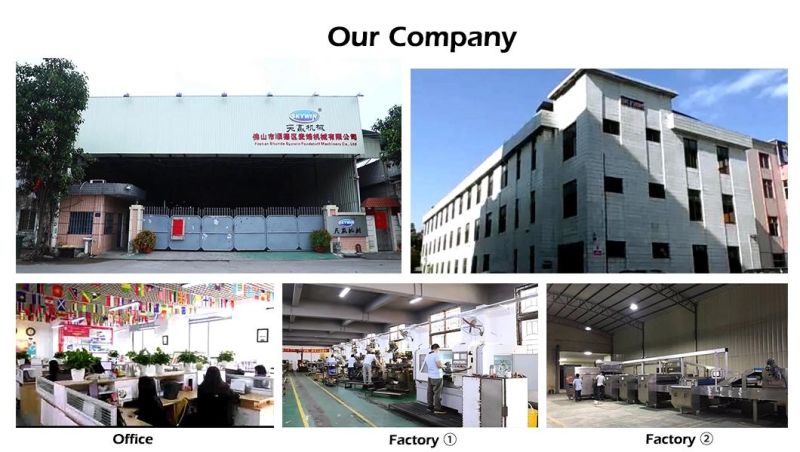

Company profile:
SKYWIN Food Machinery Group Company was founded in 2010, which is located in Beijiao, Shunde, Foshan, Guangdong, CHINA
* Foshan City is stainless steel Birthplace.
* Skywin Group has two factories, One is for Large Biscuit & Cookies & Wafer Production Line, One is for Automatic Biscuit Sandwiching Machine with Packing System.
* We have more than 60 professional staffs to match delivery time, base on "International Quality, Competitive Price".
* We insist on:
Premium Quality Standards
High Value for Money
Lasting Partnership
Technical Monopoly Protect
After Sales Dependability
-15mins from Guangzhou South Railway Station
-30mins from Guangzhou metro station
-45mins from Guangzhou airport
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Packing&Delivery:
Our regular packaging is multilayer packing, safe transport, shipping by sea:
Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).
Step 2: The plastic cushion packing machine (prevent bump).
Step 3: Plastic film packaging (to prevent ventilation).
Step 4: Wooden case / frame packaging (easy to transport).
Step 5: Tie the bandage outside of the wooden case (reinforcement overall).
FAQ
Q1: Which kind of biscuit you can produce for your biscuit line?
A. Hard and Soft biscuit, Soda Cracker, Cookies, also Stick biscuit, Print biscuit and Chocolate filling biscuit, different shape biscuit just need to change the mould, we also can design mould for you as per your details.
Q2. What kind of oven you supply?
A. We can supply gas oven or electrical oven according to your requirement.
Q3. How long is your biscuit line?
A. we can design the biscuit line according to the layout of your workshop.
Q4. Which brand of motor you use for the line?
A. we can supply European motor reducer(SEW) or Chinese famous motor for your options.
Q5. Are you manufacturer?
A. Yes, we are a biscuit machine manufacturer in China.
Q6. How is the payment?
A. We accept 40% T/T deposit before production and 60% T/T balance before shipment,and Western Union or L/C.
