• Model NO.：TUNE-LK4000
• Transport Package：Container
• Specification：4000*2000*2200mm
• Trademark：Can be customized
• Origin：China
• Production Capacity：100kg,H

Basic Info.

Model NO. TUNE-LK4000 Transport Package Container Specification 4000*2000*2200mm Trademark Can be customized Origin China Production Capacity 100kg/H

Product Description

Specification

Item	Cold Room
Voltage(V)	380V/50Hz,380V/60Hz,220V/50Hz, 220V/60Hz optional
Cooling model	Air cooled / water cooled / evaporation cooled
Compressor	Original new American copeland, Germany Bitzer etc
Refrigerant	R404A, R22
Dimension(M)	Room size(L*W*H) can be customized
Panel Material	PU panel, 42 kg/m3 density
Panel Thickness	100mm, 120mm, 150mm, etc
Steel Plate Thickness	0.5mm/0.6mm
Cold Room Doors	Hinged door, Sliding door, double swing door etc
Cold Room Door Size	0.8*1.8 meters, door size can be customized
Temp Controller	Elitech, Dixell thermostat
Defrost Type	Electric defrosting
Capacity	3CBM~5000CBM
Applications	Storage Meat, vegetable, Food, Sea Food, Fish, fruits etc

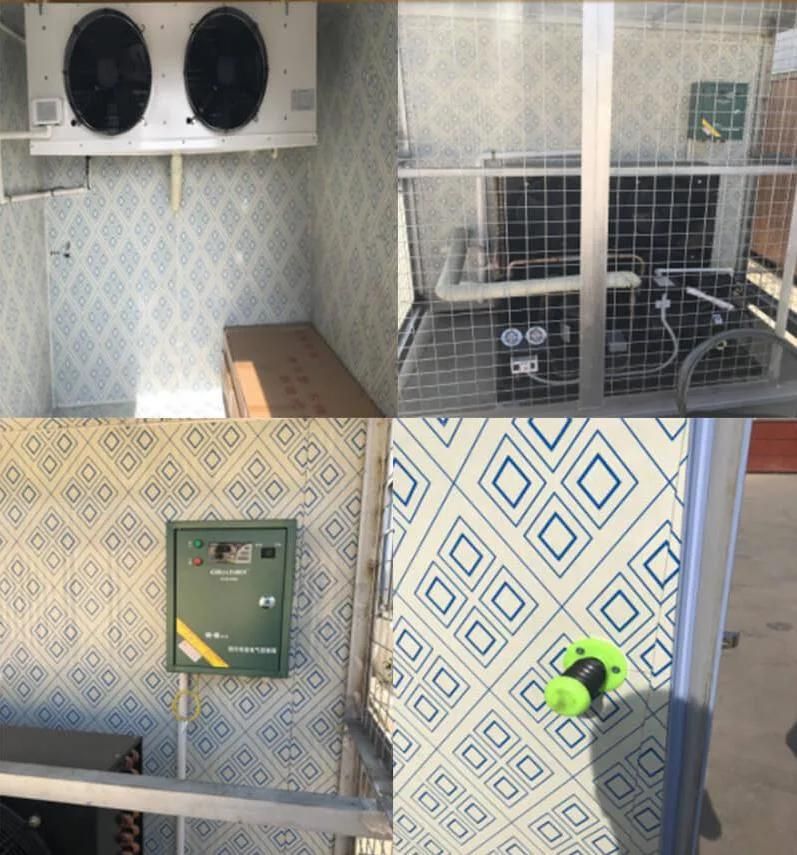

Details

Advantages

* Powerful cooling machines

We adopt original new Bitzer or Copeland compressor condensing unit for fresh-keeping, refrigeration and freezing. So it brings high efficiency to the cold room. Besides, it's safe and reliable.

* Cold room installation is easy

Each panels will be marked with unique number and with cam lock, you just need to lock different panels together, then seal them with silicon, it's done!

* Fast freezing

From fresh to frozen, only 4~6 hours.

* Thermal insulation very well

The polyurethane cold storage board is foamed by high pressure. The PU panel with 42 kg/m3 density, at least 0.5 mm steel two sides color plate, so the cold room can keep long lifetime.

* Temperature accurately and low energy

It's equipped with full automatic intelligent control with temperature setting, temperature controlling and automatic defrosting such functions.



Application:

The cold storage room can be widely used in the food industry, hotels, health, medicine, agriculture, chemical and other industries. Such as agricultural product processing, hotels, supermarket, blood banks, poultry slaughter and processing, aquaculture and processing, mushroom cultivation, dairy production, pharmaceutical processing and logistics, beverage production and processing, beer production and cooling, large-scale logistics storage, chemical product cooling.

Different Temperature:

1) 0 °C ~ + 22°C: Mushroom Plant, Medicines Storage, Processing Room, Packing Room

2) -5 °C ~ + 5 °C: Pre-Cooling, Keep Fresh,

3) -10 °C ~ -20 °C: Freezer Storage

4) -25 °C ~ -30 °C: Low Temperature Storage, Quick-Freeze

5) -35 °C ~ -40 °C: Blast Freezer, Quick-Freeze

Panel of Cool Room

The polyurethane cold storage board is foamed by high pressure. The PU panel with 42 kg/m3 density, cam-lock inside design, at least 0.5 mm steel two sides color plate, ensure the cold room can keep long years lifetime, and thermal insulation very well.

Item	Cold room panel
Panel Thickness	100mm, 120mm, 150mm, etc
Steel Plate Thickness	0.5mm/0.6mm
Heat Conductivity Coefficient	0.018W/(m.k)
Average Density	42~48 kg/m3
Compression Strength	2kg/cm2
Service temperature	From - 100°C To + 60°C

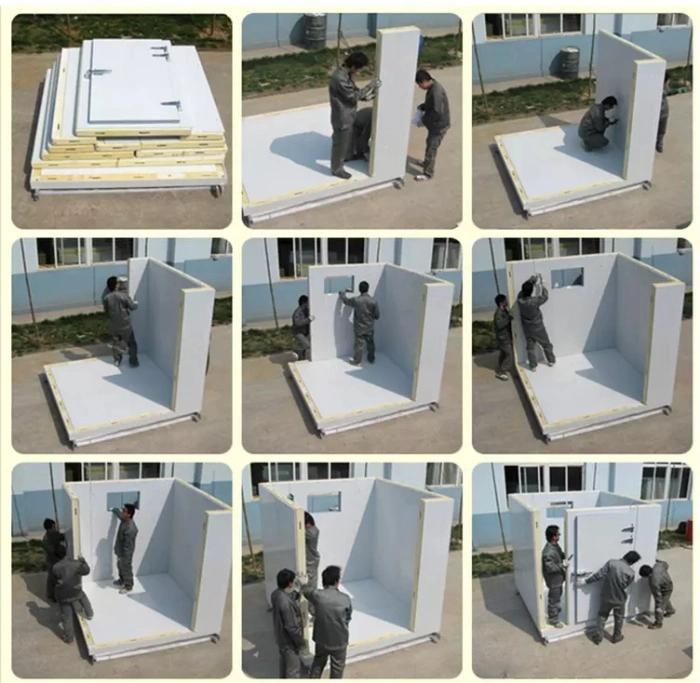

How to install:

Installation is simple, easy to install.

Modular insulation panel, each panels will be marked with unique number and with cam lock, you just need to lock different panels together. Then seal them with silicon. After the floor, walls, door, roof are installed, a whole cold room is finished.
