• Model NO.：ZZJ-01
• Output：0.5t,H
• Spiral Diameter：88mm
• Crushing Motor Power：1.5kw
• Main Motor Power：1.5kw
• Filter：0.6mm
• Dimensions：780*380*800
• Keyword 1：Fruit Juice Extrator
• Keyword 2：High Speed Juice Extrator
• Keyword 3：Home Applience Juice Extractor
• Keyword 4：Juice Filling Line
• Keyword 5：Beverage Machine
• Keyword 6：Fruit Juice Processing Plant
• Keyword 7：Banana Juicer
• Keyword 8：Grinder Machine
• Keyword 9：Strawberry Juicer
• Transport Package：Wooden Case
• Specification：780*380*800
• Trademark：CE
• Origin：China
• Production Capacity：20sets,Month

Basic Info.

Model NO. ZZJ-01 Output 0.5t/H Spiral Diameter 88mm Crushing Motor Power 1.5kw Main Motor Power 1.5kw Filter 0.6mm Dimensions 780*380*800 Keyword 1 Fruit Juice Extrator Keyword 2 High Speed Juice Extrator Keyword 3 Home Applience Juice Extractor Keyword 4 Juice Filling Line Keyword 5 Beverage Machine Keyword 6 Fruit Juice Processing Plant Keyword 7 Banana Juicer Keyword 8 Grinder Machine Keyword 9 Strawberry Juicer Transport Package Wooden Case Specification 780*380*800 Trademark CE Origin China Production Capacity 20sets/Month

Product Description

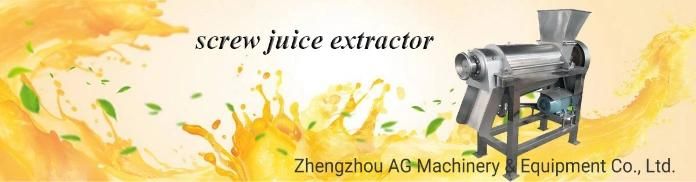

Strawberry Cherry Grape Apple Pear Peach Plum Kiwi Fruit Juicer Extractor


 Technical Data of juice extractor:

Specification	Output	Spiral diameter	Crushing motor power	Main motor power	Filter	Dimensions
Square broken 0.5T Spiral fruit and vegetable juice extractor	0.5T/H	88mm	1.5kw	1.5kw	0.6mm	990*380*1100
Square broken 1T Spiral fruit and vegetable juice extractor	1T/H	125mm	1.5kw	3kw	0.6mm	950*350*1200

Use and scope of application:



1.Used to squeeze pineapple, apple, pear and other fruits;
 2.For pressing tomatoes, ginger, garlic, celery and other vegetables.
 3.Spiral propulsion;
 4.Fully automatic berry, pome fruit and vegetable fruit and vegetable juice extraction and slagging process;
 5.The part in contact with the material is made of GB 304 stainless steel.
 6.The frame material can be selected from the national standard 304 stainless steel, depending on customer requirements.

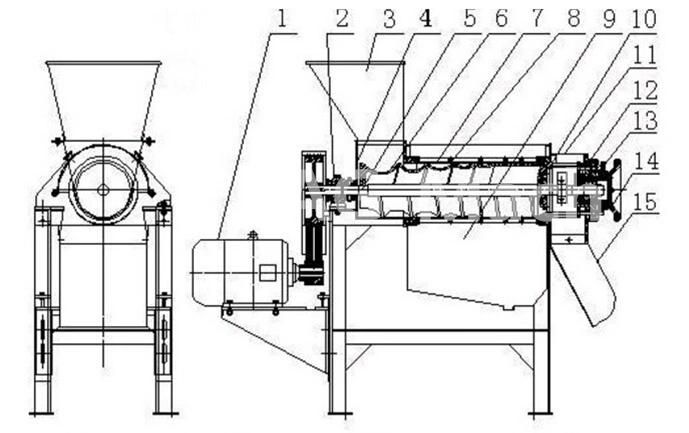

Equipment structure:

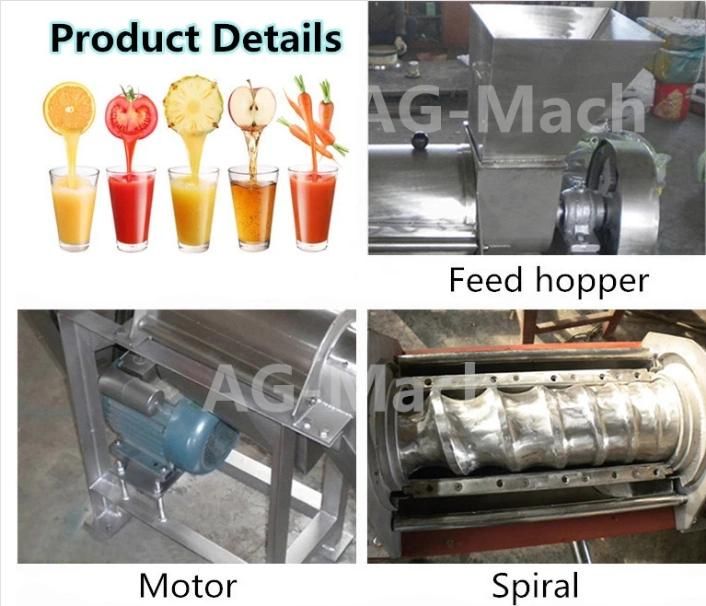

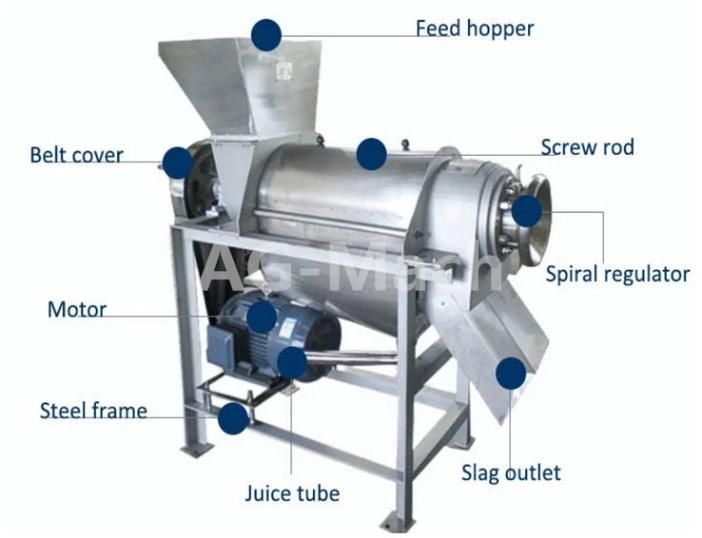

1.    Structure: It consists of front support, feed hopper, crushing, spiral, filter net, juice extractor, rear support, slag sump, etc.
2.    The left end of the spiral main shaft is supported in the rolling bearing housing, and the right end is supported by the hand wheel bearing.
3.    In the seat, the motor is driven by a pair of V-belt drive screws.

Working principle of juice machine:





1.The main component of the equipment is the broken pulp, juice and skin entering the spiral juice extractor through the feeding hopper.
2.The spiral diameter gradually increases along the direction of the slag outlet and the pitch gradually decreases.
3.When the material is spirally advanced, the spiral is caused by the spiral.
4.The volume of the cavity is reduced to form a press of the material.
5.The direction of rotation of the helical main shaft is viewed from the feed hopper toward the slag groove in a clockwise direction.
6.The raw material is added to the feed hopper, pressed under the advancement of the spiral, and the pressed juice flows through the filter into the bottom of the juice extractor, and the waste is discharged through the annular gap formed between the spiral and the tapered portion of the pressure regulation.

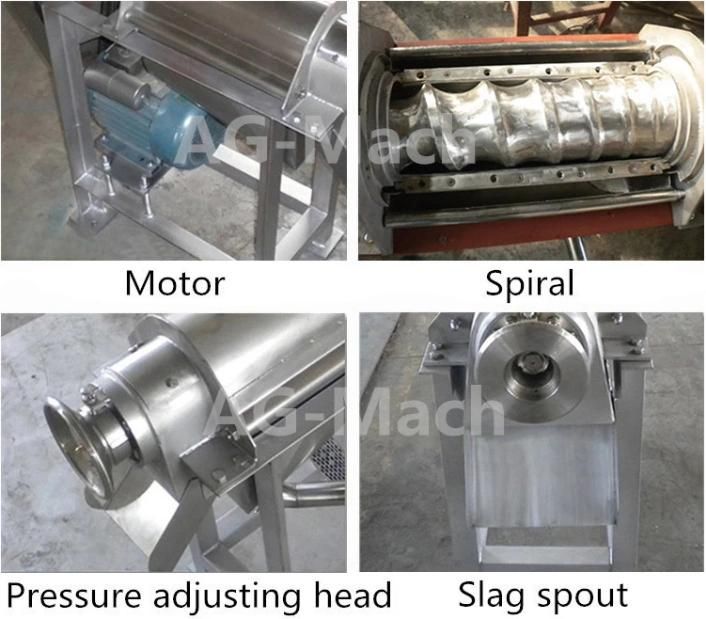

7.The movement of the pressure regulating head in the axial direction can adjust the size of the gap.
8.For clockwise (when the seat is turned from the tapping groove of the device to the end of the feed hopper, the head is turned to the left, the gap is reduced, and the gap is enlarged.)
9.The size of the gap is changed, that is, the row is adjusted.
The resistance of the slag.
10.The slag removal rate can be changed, but if the void is too small, under strong extrusion, some of the slag particles will be extruded through the filter together with the juice.
11.Although the juice is increased, the quality of the juice is relatively decreased, and the size of the void should be regarded as User specific process requirements.
12.Stainless steel spiral fruit and vegetable juice extractor is suitable for a variety of fresh fruit and vegetable beating separation.

Features of juice machine:


1.The motor drives the spindle to rotate through a pair of pulleys.
2.The tripod is mounted on the spindle. The beater plate is on the tripod.
3.The screen, funnel and slag are mounted on the lower bracket.
4.The upper inner cylinder and the feeding hopper are loaded on the bracket, and the entire upper bracket is hingedly connected, and can be opened to check the quality of the pulp.

Packing of juice extractor:
