• Model NO.：STL300
• Transport Package：Wooden Case
• Specification：CE
• Trademark：SHINWEI
• Origin：Shanghai China
• Production Capacity：20stes,Year

Basic Info.

Model NO. STL300 Transport Package Wooden Case Specification CE Trademark SHINWEI Origin Shanghai China Production Capacity 20stes/Year

Product Description

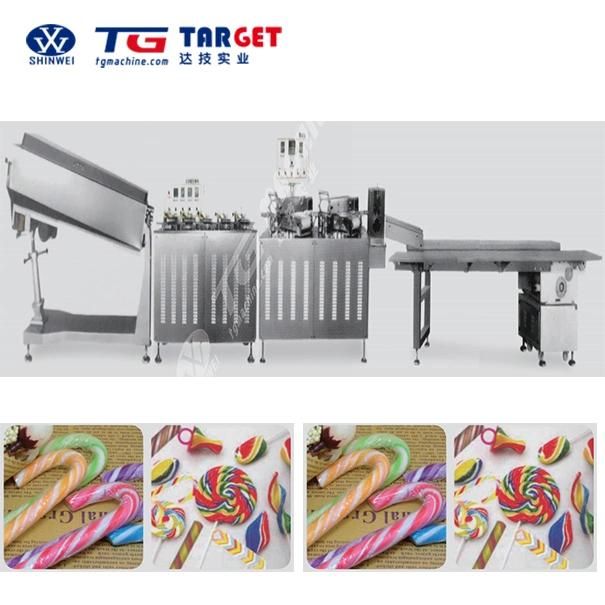

STL300 stick lollipop production line


This line is consist of cooking machine, batch roller, rope size, equalizer machine ect...It can produce all kind of screw thread shape candies or lollipop, the pressing machine is used for making flat twist shape lollipop.

This line is composed of head unit, vacuum calibration, cooling, traction device and rotary cutting or winding device. With a variety of specifications such as multicolor co-extrude, three color co-extrude, two color co-extrude and one color extruding machine.


1. This extruding machine can be used with wide range of applications:
1) Food industry: Producing drinking straws, lollipop sticks, coffee stirring stick etc.
2) Other industries: Producing ballpen refill, cotton swabs sticks and some other pipes used for industry.

2. Easy to operate, only one man can handle it.

3. Cutting end: 90° /90° , 90° /45° , 90° /60° , 45° /45° , 60° /60°

4. A wide range of color: One, two, three color or multicolor stripes, straight or spiral.

Model	STL300
Driving motor	Main motor: 7.5kw, 380V
	Vice motor: No
	Drag and cutting device: 0.75kw*2
Productivity for lollipop sticks	500pcs/min
Productivity for coffee stirring sticks	1000-1400pcs/min
Straw	Dia.: 2-13mm
	Length tolerance: ±0.1-1mm
Row material	PP
Screw	Main screw: 50mm in diameter
Vacuum Calibration and Cooling	Method of vacuum fixed diameter: Vacuum soaking
	length of the cooling system:3.5m, 4.5m, 5.5m available

Wooden packing
1. Product production is completed, by the quality inspection department to check
2. After inspection qualified, clean for whole machine
3. Packing: A. Inside the machine put desiccant b. Add 6 cm thick foam plate around the machine, Then, winding stretch film for reinforcement, and combined with bubble wrap c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4. Container: According to different products for reinforcement



After-sale service for abroad customers.

1. Free training of macine installion, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will surpport customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installion and adjustment





Why choose us?

· Nearly 20 years experiences in food processing machinery production, established in 1982.

· We are manufacturer and wholesale of dough kneading machine

· We adopt environment-friendly materials and technology

· We mainly sell stock in bulk. OEM orders are welcome

· We can accept the mix order
