• Model NO.：1T,H
• Application：Ice Cream
• Customized：Customized
• Material：SUS304,316L
• Control Type：Semi-Automatic or Full Automatic
• Cleaning：Automatic Cip
• Condition：New
• Voltage：380V
• Power(W)：200kw
• Effeciency：High Effeciency
• Energy Consumption：Low Consumption
• Transport Package：Wood Package and Framework
• Specification：ISO9001: 2008,HACCP,GMP
• Trademark：Beyond
• Origin：China
• HS Code：8438200000
• Production Capacity：100 Sets Per Year

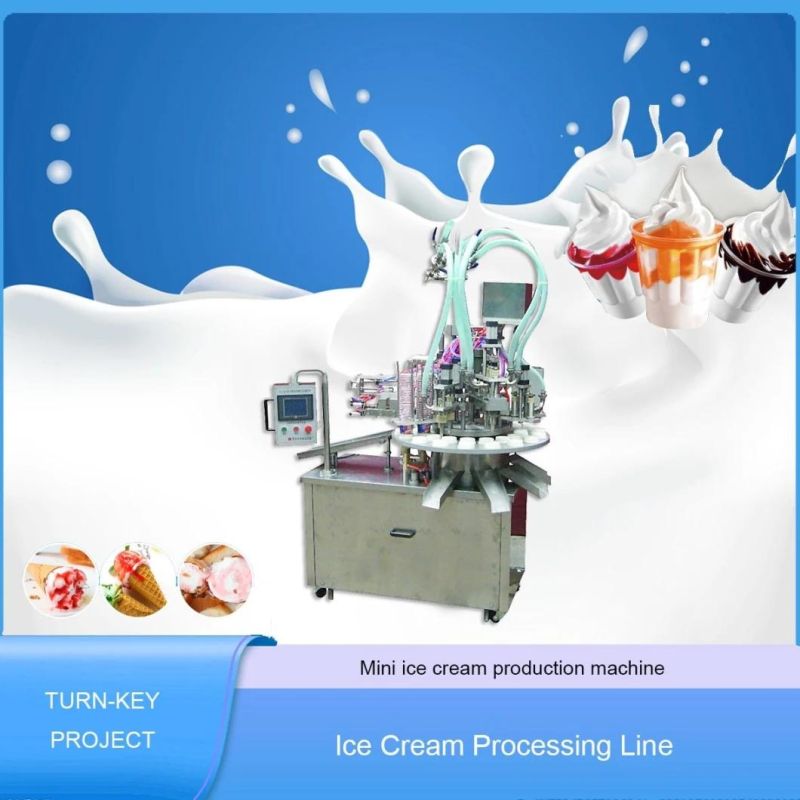

Overview
                                                                                                          Equipment list for ice cream processing line
   No.

  Name

Size

  Main technology parameter

1

High speed mixing tank

V=300L

SUS304, single layer, high speed mixer 2900rpm, full open removable cover, breath valve, digital thermometer, adjustable legs, sample valve

2

Centrifugal pump

Q=5T/H

SUS304, pump head 24m, hard alloy mechanical seal

3

Tub filter

Q=3T/H

SUS304, 100 mesh

4

High pressure homogenizer

Q=500L/H

SUS304, 25MPa

5

Plate exchanger

Q=500L/H

SUS304

6

Ice cream aging tank

V=500L

SUS304, heat insulated, heating or cooling jacket, top off-center vertical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, supporters with adjustable feet

7

Centrifugal pump

Q=5T/H

SUS304, pump lift 24m, hard alloy mechanical seal, inner shell bright-polished

8

Ice cream freezer machine

Q=500L/H

SUS304, include refrigeration system

9

Ice cream filling machine

Q=500L/H

SUS304, roll icecream filling machine

10

  CIP system

Q=10T/H

SUS304, 0.5tx3

11

  CIP return pump

Q=10T/H

SUS304, pump head 20m, hard alloy mechanical seal

12

Boiler

Q=500L/H

SUS304, electric heating type

13

Refrigerator

Air-cooled compressor, with fron as chilling medium, 20000kcal

14

Container for glycol water

V=500L

SUS304,   PU heat insulation, thermometer, adjustable feet

15

Centrifugal pump

Q=3T/H

SUS304, pump head 24m, hard alloy mechanical seal

16

Instant cool room

V=25m3

Cool with freon, working at -28 ° C

17

Electrical control pannel

Control all the machines of the mini unit

18

Fittings and valves

Juice pipe, glycol pipe, freon pipe

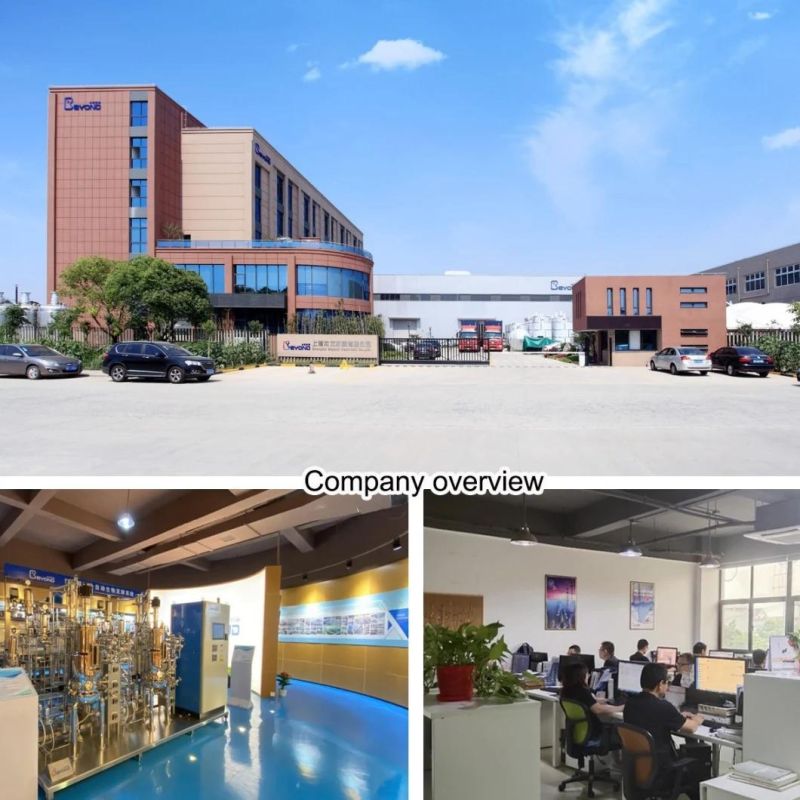

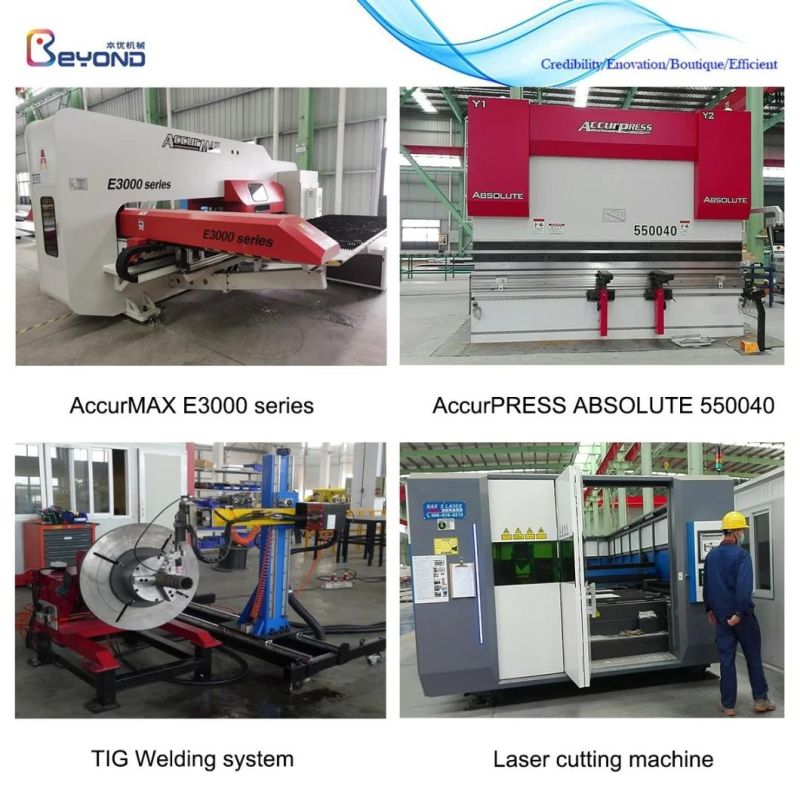

 Company Profile



Our ServiceTrade shows



FAQ



1 ) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.



2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 16 years experience , strict operation policy is performed, advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing, transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.



3) Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .



4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .



5) Q: I am new in this field,can you supply us turnkey services?
A: YES.We can supply all the system including Market Analysis/Product Analysis/Location Choice/Processing Flow Design/Equipment Layout Design/Building Design direction/Equipment mode selection/Equipment Manufacturing/Equipment Mounting/Equipment Debugging/Worker Training.



6) Q: What ' s the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.



7) Q: Can you supply OEM services?
A: Yes,we have our R&D team,and we have more than 400 workers with workshop area 75000 square meters.



8) Q: Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time.
