• Model NO.：KQ
• Name：Stainless Steel Heating Jacketed Kettle for Sauce
• Kettle Material：Stainless Steel 304 ,316
• Capacity：100L ,200L,300L ,500L, 600L, 1000L
• Function：Heating and Mixing
• Mixer：Scrapper Mixer, Normal Mixer
• Heating：Electric ,Steam ,Gas ,LNG ,LPG
• Kettle Type：Vertical ,Tilting or Fixed
• MOQ：1 Set
• Packing：Wooden Box
• Factory：Shanghai China
• Motor Brand：Siemens ,ABB ,China Brand
• Warranty：One Year
• Working Life：More Than 10 Years
• Delivery：10-15 Days After Get Your Advance Payment
• Kind：Automatic Type ,Manual Type
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：2000set ,Year


KQ50
KQ100
KQ150
KQ200
KQ300
KQ400
KQ500
Capacity L
50
100
150
200
300
400
500
Jacketed pressure
 Mpa
                            < 0.2
Evaporation capacity
kg/h
30
40
50
65
75
100
150
Heat area
 m 2
0.4
0.45
0.76
1.0
1.15
1.44
1.90
Energy consumption
 kg/h
33
44
55
72
90
110
165
N.W.
 kg
170
190
210
230
320
360
485
LxWxH
 mm
720X600X830
800X650X830
1350X650X1100
1400X700X1100
1450X800X1110
1500X850X1140
1600X900X1150




Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation .
Configuration of tank :
Quick open manhole .
Various types of CIP cleaners .
Fly and insect resistant sanitary breathing cover .
Adjustable triangular bracket .
Dismountable materials input pipe assembly .
Thermometer (According to customer requirements ).
Ladder (According to customer requirements).
Paddle blender .
Liquid level meter and lever controller (According to customer requirements) .

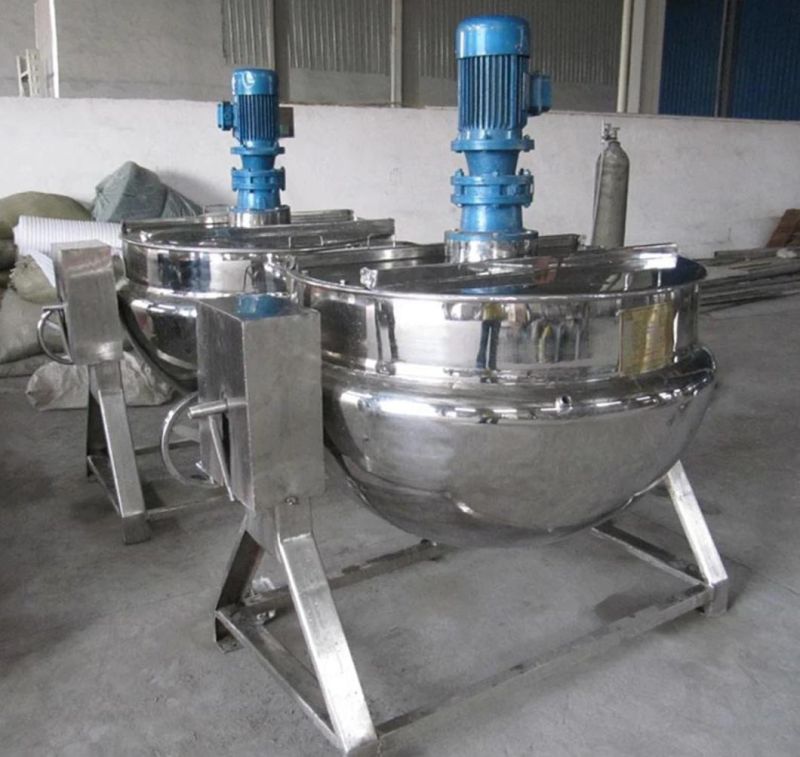

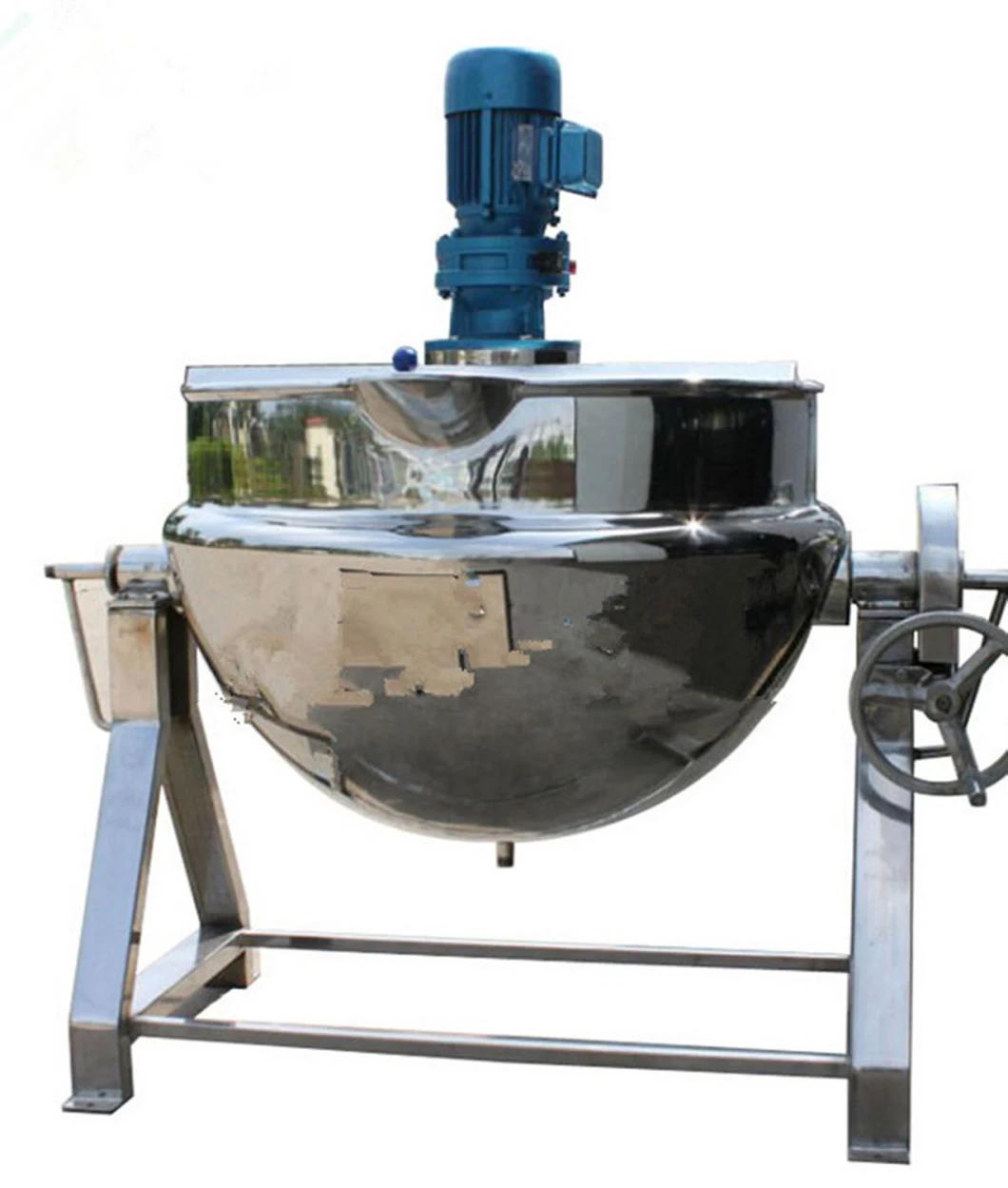

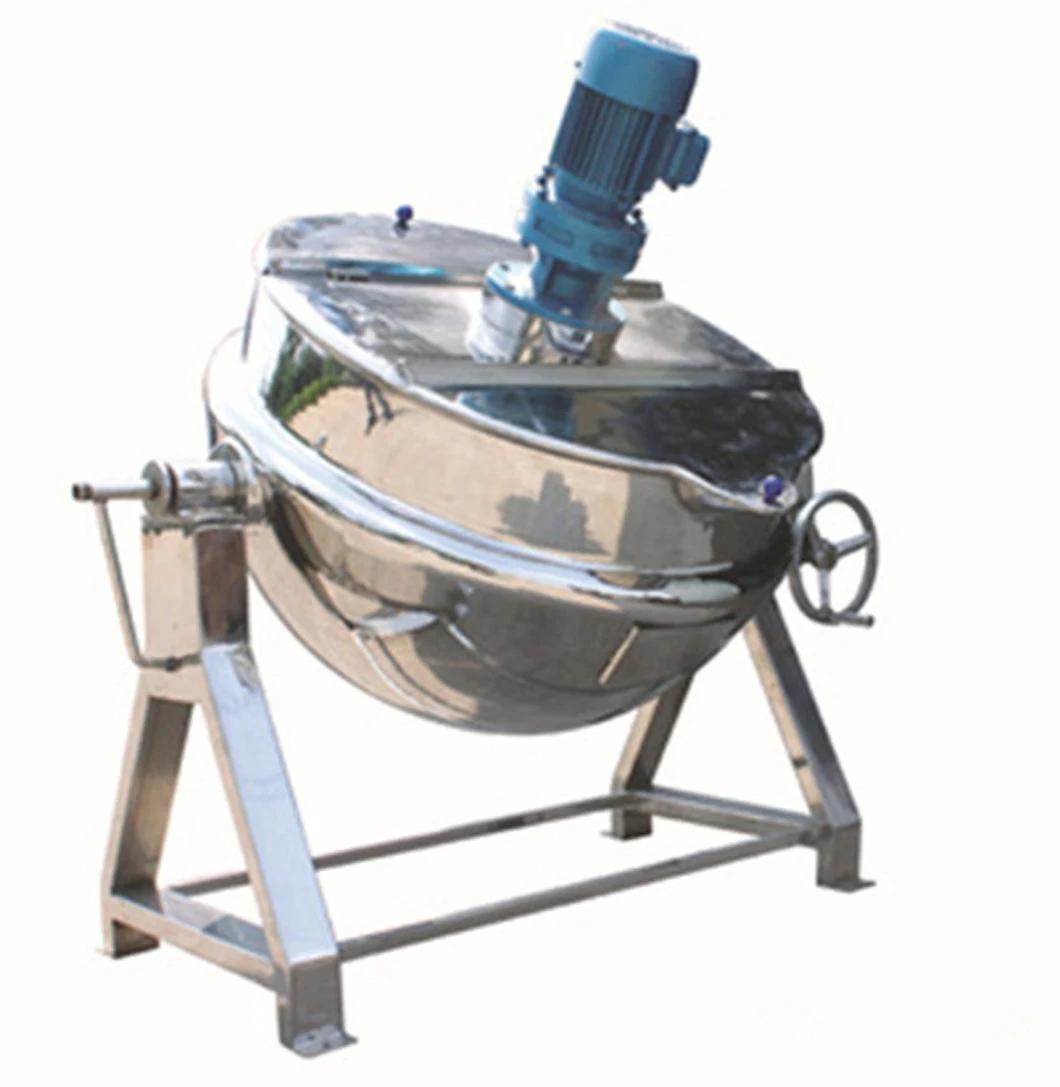

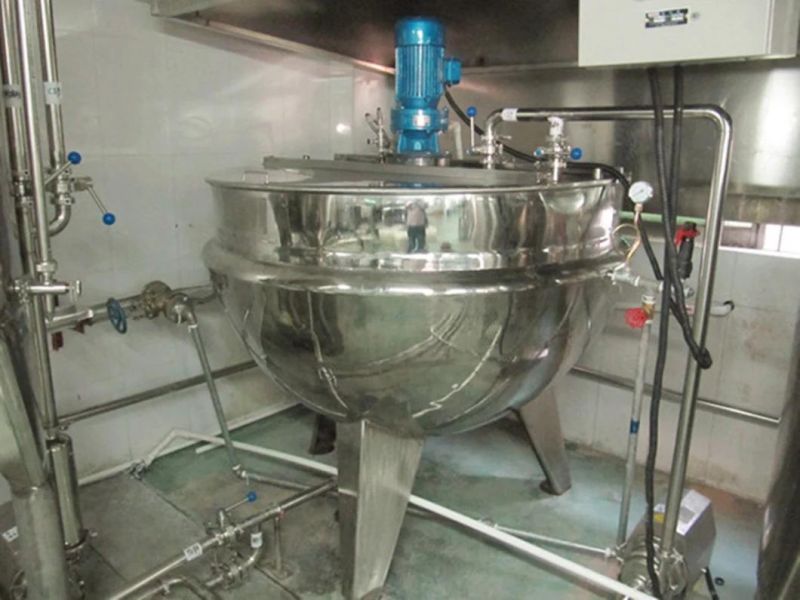

This equipment is used widely for pharmacy,food,chemical industry. To cook ,boiling ,concentrator .according to client requirement :it can use hot steam and electrical heating sources .Also it can add the agitator and cover .All depend on clientsThis equipment consist of boiler body,stir device ,worm wheel and worm rod .the boiler body can be rotated within 180 degree. all the materialsin contact with media used stainless steel featuring good anticorrosion and duraility.which are in accordance with GMP standard.
 We can also make the jacketed kettle or jacketed boiler according to your special demands.
 stainless steel electric/steam/gas heating jacket kettle
Stainless Steel Heating Jacketed Kettle For Sauce Peanut Butter .
