• Model NO.：BRW80,20
• Pressure：20
• Flow：80lpm
• Shaft Speed：535rpm
• Plunger Diameter：40
• Plunger Stroke：44
• Motor Power：37kw
• Motor Speed：1480
• Lead Time：20 Days
• OEM/ODM：Available
• Warranty：12 Months After Delivery
• Transport Package：Wooden Box
• Specification：80,20
• Trademark：YB
• Origin：China
• HS Code：8413110000
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. BRW80/20 Pressure 20 Flow 80lpm Shaft Speed 535rpm Plunger Diameter 40 Plunger Stroke 44 Motor Power 37kw Motor Speed 1480 Lead Time 20 Days OEM/ODM Available Warranty 12 Months After Delivery Transport Package Wooden Box Specification 80/20 Trademark YB Origin China HS Code 8413110000 Production Capacity 50000PCS/Year

Product Description

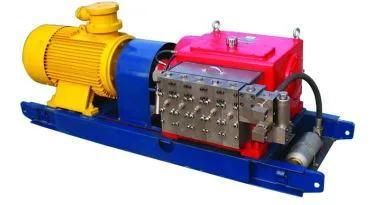

BRW80/20 emulsion pump







Introduction of the use of BRW80/20 emulsion pump

The BRW80/20 emulsion pump, based on its universal crankcase, and the emulsion pump station composed of RX-640 emulsion box, mainly provides the power source for the comprehensive mechanized coal mining single hydraulic support, and can also be used in other hydraulic equipment on the ground. The pumping station is generally composed of two pumps and one box, and three pumps and two boxes can be configured for high efficiency and high yield working face.

The emulsion pump is a horizontal three plunger reciprocating pump, which is driven by a four pole explosion-proof motor. After decelerating the first grade gear, the three curved crankshaft is rotated, and then the plunger is driven by the connecting rod and slider to make the reciprocating movement, so that the working fluid is absorbed and discharged in the head of the pump, and then the electric energy is converted into hydraulic energy and the high pressure liquid is output. It is used for working of hydraulic support.

Main technical parameters:



parameter



BRW80/31.5



BRW80/20



Import pressure



Atmospheric pressure



Nominal pressure MPa



Thirty-one point five



Twenty



Nominal flow L/min



Eighty



Eighty



Crankshaft speed r/min



Five hundred and thirty-five



Five hundred and thirty-five



Plunger diameter mm



Forty



Forty



Plunger stroke mm



Forty-four



Forty-four



Motor power KW



Fifty-five



Thirty-seven



Motor speed r/min



One thousand four hundred and eighty



One thousand four hundred and eighty



Outer size mm



2200 x 840 x 855



2000 x 840 x 795



Total weight Kg



One thousand four hundred and sixty



One thousand and three hundred



Safety valve set off pressure Mpa



38.5-42



22-24



Unloading valve outlet pressure Mpa



Thirty-one point five



Twenty



Unloading valve recovery working pressure Mpa



The 80%-90% of the unloading valve to adjust the pressure



Working fluid



Emulsion (neutral water mixture containing 5% emulsified oil
