• Condition：New
• Customized：Customized
• Key Words：Maize Flour Milling Machine
• Corn Flour Millcolor：Depend on Client Need
• Warranty Time：2 Years Corn Flour Milling Machine
• Corn Flour Mill Dust：Less Than 10 Mg,M3
• Structure：Steel Frame Structure Corn Flour Milling Machine
• Final Products：Super Maize Meal, Posho Meal, Special Meal
• Maize Milling Machine Spare Parts：Maize Flour Milling One Year Free
• Maize Milling Machine Pipe：Stainless Steel in Milling Section
• Maize Flour Machine Store Bin：Stainless Steel
• Maize Mll Machine After Sales Service：Service for The Whole Working Life
• Transport Package：No Packing or Simple Packing
• Specification：50T,24H
• Trademark：HDF
• Origin：Shijiazhuang City, Hebei, China
• HS Code：84378000
• Production Capacity：100set,Month

Basic Info.

Condition New Customized Customized Key Words Maize Flour Milling Machine Corn Flour Millcolor Depend on Client Need Warranty Time 2 Years Corn Flour Milling Machine Corn Flour Mill Dust Less Than 10 Mg/M3 Structure Steel Frame Structure Corn Flour Milling Machine Final Products Super Maize Meal, Posho Meal, Special Meal Maize Milling Machine Spare Parts Maize Flour Milling One Year Free Maize Milling Machine Pipe Stainless Steel in Milling Section Maize Flour Machine Store Bin Stainless Steel Maize Mll Machine After Sales Service Service for The Whole Working Life Transport Package No Packing or Simple Packing Specification 50T/24H Trademark HDF Origin Shijiazhuang City, Hebei, China HS Code 84378000 Production Capacity 100set/Month

Product Description

Super white corn milling machines corn mill

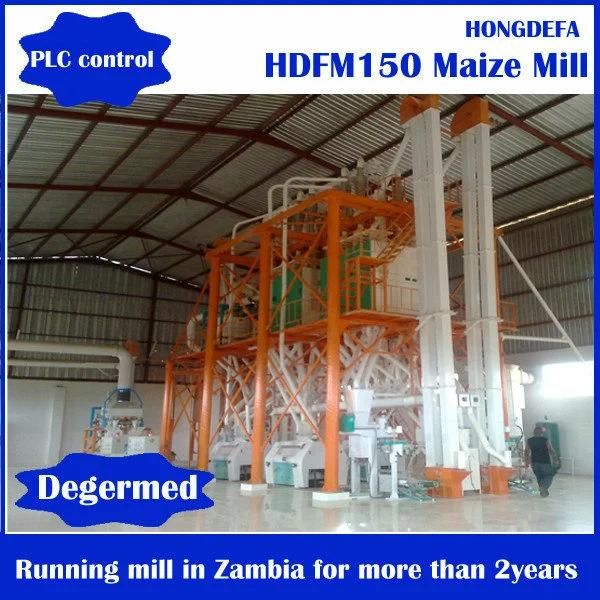

50T/24H maize flour milling machine is our main product. we are a professional manufacturer and exporter of 5 T to 500T per 24 hours maize flour milling machine and 5T to 500T per day wheat flour milling machine with matched steel silo and stell structure warehouse.some photos of our maize milling machines:


Remark:

1. Production capacity: 50T(maize)/24H
2. Products variety:
3. Extraction rate:
   1)Fine Maize flour: 30~40%
4. Workshop dimension: 33×12×8m(L×W×H)
5. Power supply: About 176kW.
6. Total weight of the equipment: 30T.
7. Container:2*40'+20 '(common one suit for transportation).
8. Installing time: two  months.

some  details  of machine:

Type	Capacity	Flour extraction	power	Workshop	Container(ft)
6FYDT-5T	5t/24h	Fine flour 75-85%	15kw	10m/5m/5m	20*1
6FYDT-10T	10t/24h	Fine flour 75-85%	23kw	10m/5m/5m	20*1
6FYDT-12T	12t/24h	Fine flour 75-85%	55kw	16m/6m/5m	40*1
6FYDT-15T	15t/24h	Fine flour 75-85%	80kw	18m/5m/5m	40*2
6FYDT-25T	25t/24h	Fine flour 75-85%	95kw	18m/5m/5m	40*2
6FYDT-30T	30t/24h	Fine flour 75-85%	95kw	26m/8m/5m	40*2
6FYDT-50T	50t/24h	Fine flour 75-85%	135kw	27m/9m/7.5m	40*2
6FYDT-100T	100t/24h	Fine flour 75-85%	240kw	30m/9m/10m	20*1 40*4



6FYDT-120T	120t/24h	Small grain35-40% flour40-45%	240kw	30m/9m/10m	40*4
6FYDT-150T	150t/24h	Small grain35-40% flour40-45%	300kw
6FYDT-300T	300t/24h	Small grain35-40% flour40-45%	560kw

Why buying the Maize mill plant from our factory?
  1.Client good feedback,first buy the small capacity of middle capacity,normally after 2years buy the     bigger capacity.
       Egypt client 2007buy the 60T/24h  milling machine,2014 buy the 200T/24h milling machine
       Brazil client 2009 buy the 80T/24h milling machine,2014 buy the 250T/24h milling machine
       Zambia client 2013 buy the 50T/24h milling machine,2015 buy another 50T/24h milling machine

  2.over sea service center available, 24h after service:
                Lusaka Zambia,Kinshasa RD congo,Addis Ababa Ethiopia,Multan Pakistan
           Durban South Africa,New Delhi India
  3.Warranty 2years
  4.Chinese profesional engineer guide installation and commissioning
3-----Main MAchine

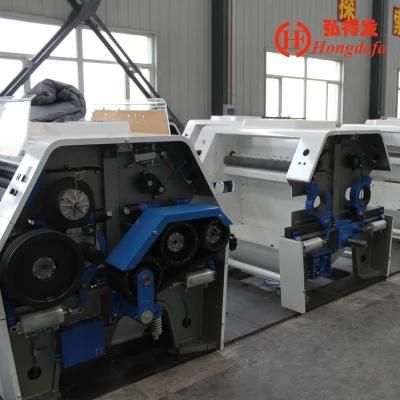

1.Roller Mills
1)The partitioned paneling and swing-out feed module guarantee ideal
access to the feeding and grinding rolls. This makes residue-free
cleaning possible.
2) a pulse generator automatically adjust the feed material at the entrance door




Plansifter
1) Material: High-strength alloy steel
2)up and down sifter circles with steel plate overall by bending
3)Transmission system using spring force component institutions
4)Sieve frames of wood coated with synthetic resin,without backwire
5)All the inside walls as well as the doors are provided with high-grade insulation
6)Vertical and horizontal clamping system


Degerminator :
dry degermination with low fat content.
Technology. Multi-faceted sieve tube design,the screen The high-quality stainless steel nitriding treatment




FAQ
Q1. Does the maize mill line can produce different kind of maize meal,maize flour same time?
Yes,the maize mill line can produce different size maize meal or maize flour at same time at one production line
Q2. Does the maize mill line can running with Generator?
Yes,the maize mill line can running with Generator
Q3. Does the maize meal packing machine can pack different bags?
Yes,the packing machine can pack 1kg-5kg;5kg-20kg,12.5kg-25kg,50kg
Q4. Does the maize mill line can processing maize and wheat same time?
No,it is because the maize and wheat  Physical Characteristics is different,like the shape,the hardness,all are different,and the final product flour size is also different. The cleaner,the roller mill parameter,the plansifter sieve all are different.
As professional manufacture for maize meal or flour,cannot processing maize and wheat same time.

We can design the machine flow according to the client's request, our technicians can install the machine and train the local workers to operate the machine smoothly.
If you need more technique information and exactly price, please contact with us freely.
Our professional technique team will give you the best service.
