• Model NO.：KQ300L-30000L
• Name：3000L Milk Homogenizer Yogurt Homogenizer Homoge
• Usage：Milk , Juice, Beverage, Butter, Honey, Cream
• Capacity：500L,H-10000L,H
• Pressure：250 Bar To700bar
• Certificate：Ce
• Performance：0.2um
• Motor：OEM
• Stage：Two Stage
• Working Life：More Than 10years
• Homogenizer Spare Parts：Provide
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. KQ300L-30000L Name 3000L Milk Homogenizer Yogurt Homogenizer Homoge Usage Milk , Juice, Beverage, Butter, Honey, Cream Capacity 500L/H-10000L/H Pressure 250 Bar To700bar Certificate Ce Performance 0.2um Motor OEM Stage Two Stage Working Life More Than 10years Homogenizer Spare Parts Provide Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

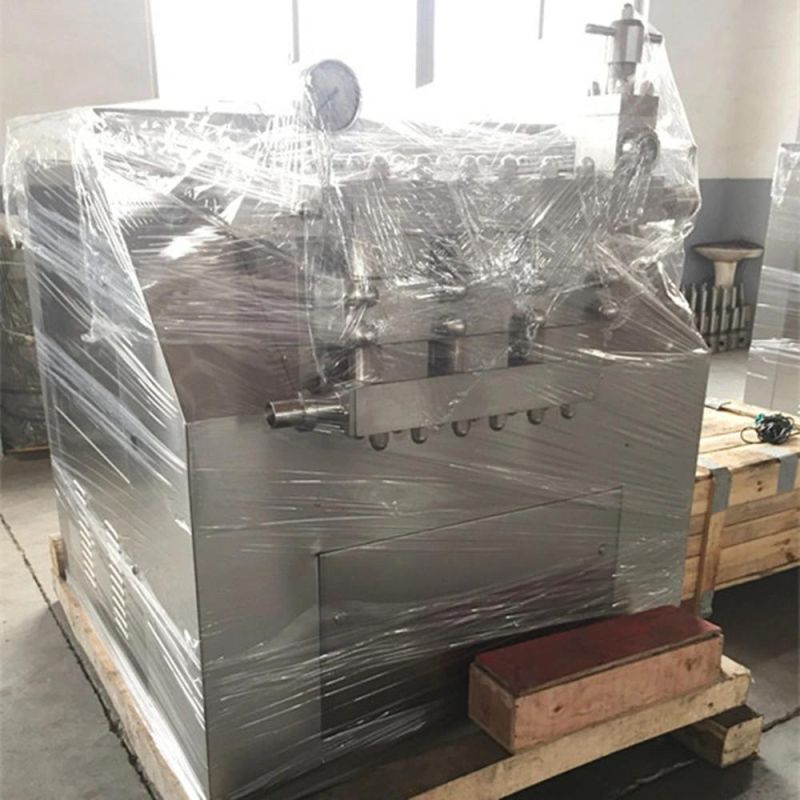

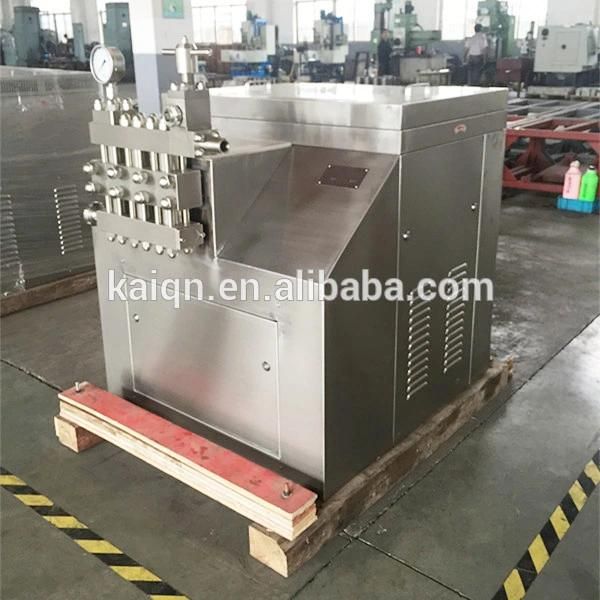

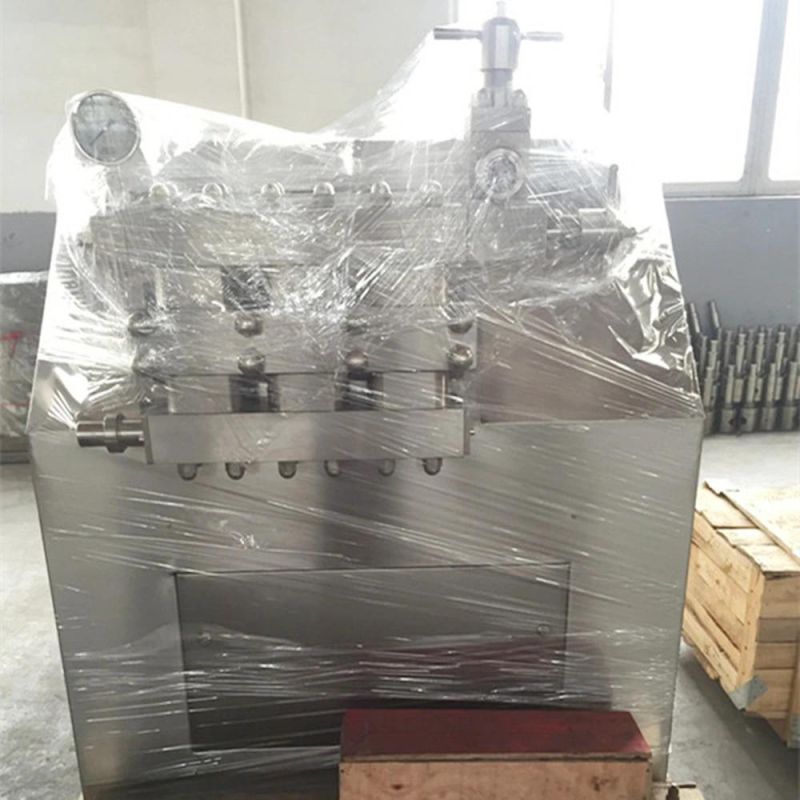

3000L Milk Homogenizer Yogurt Homogenizer Homogenizer Price Homogenizer Supplier
yogurt homogenizer Greece Yoghurt Homogenizer juice homogenizer


CE Certificated Best Price Shanghai High Pressure Homogenizer/Milk Homogenizer
GJB high pressure homogenizer
25 Mpa 250Bar Homogenizer For Milk CE
Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us,  the 250bar milk homogenizer



Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life

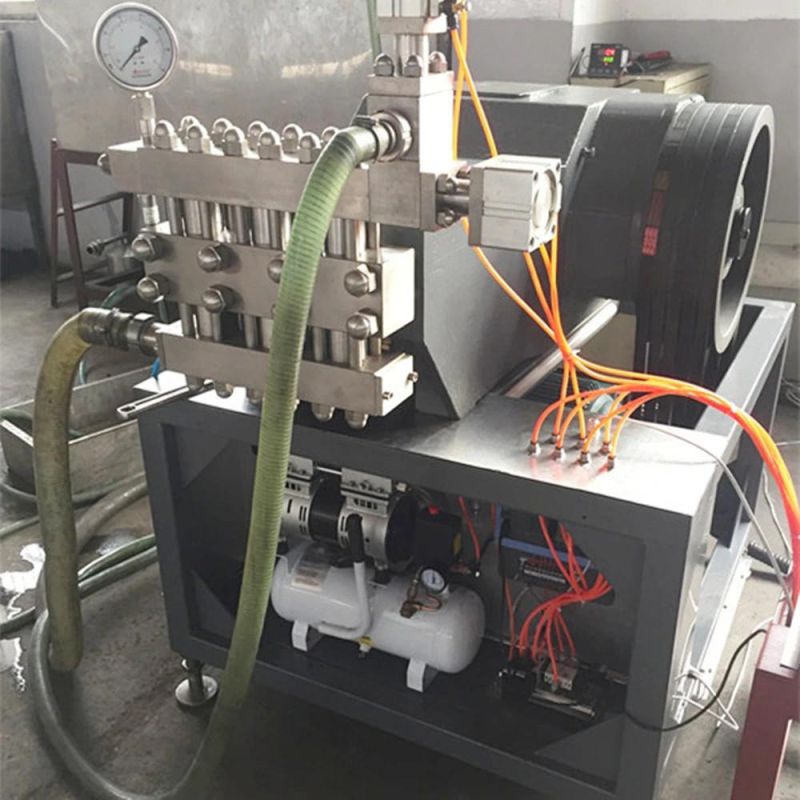

series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.

The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.



The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
