• Model NO.：GY-200
• Weight：500kg
• Voltage：220V,380V
• Power：20kw
• Warranty：1 Year
• Dimension：Customzied
• Transport Package：Wooden Case
• Specification：customzied
• Trademark：Genyond
• Origin：China
• Production Capacity：20 Set

Basic Info.

Model NO. GY-200 Weight 500kg Voltage 220V/380V Power 20kw Warranty 1 Year Dimension Customzied Transport Package Wooden Case Specification customzied Trademark Genyond Origin China Production Capacity 20 Set

Product Description

Universal Cooking Machine(Cheese Cooking Machine)





Introduction:

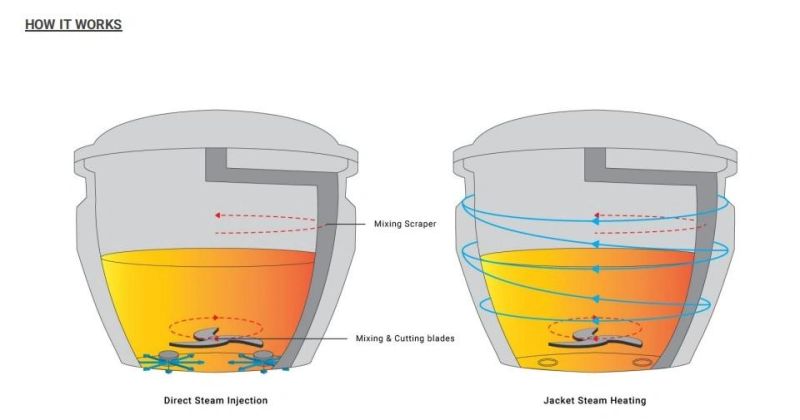

The universal cooking machine(cheese cooking machine), is designed for processed cheese, sauces, butter,mayonnaise, ketchup and another products preparation. Put the raw materials or cheese block and other formula materials into pot, then they are cooked by steam, cut and mixed by high speed knife. The final product is formed as a thick liquid when it is hot.

It consists of a jacketed melt kettle, a high speed agitator, a mixing cutter, a scraper, a controllable heating system, and a pouring device.
The cheese can be quickly chopped in the kettle, heated and melted, and evenly mixed with other excipients.

Parameters:
Batch capacity: 50-300 L/batch
Working pressure range: Vacuum(-0.4 bar) to Pressurised(1.5 bar)
Working temperature: 115 C
Heating method: jacket stem heating
Cutting blade speed: 300-2,000 rpm
Bowl side scraper speed: 12-20 rpm
Operating power: 3 phase, 380 V 50 Hz
Power consumption: 20-50 kW
Compressed air: 6 bar(min),constant
Material for machine: SUS 304 or 316>
Weight: 2 tons
Dimension(L*W*H): 2200 mm*1200 mm* 1500 mm



Main structure:

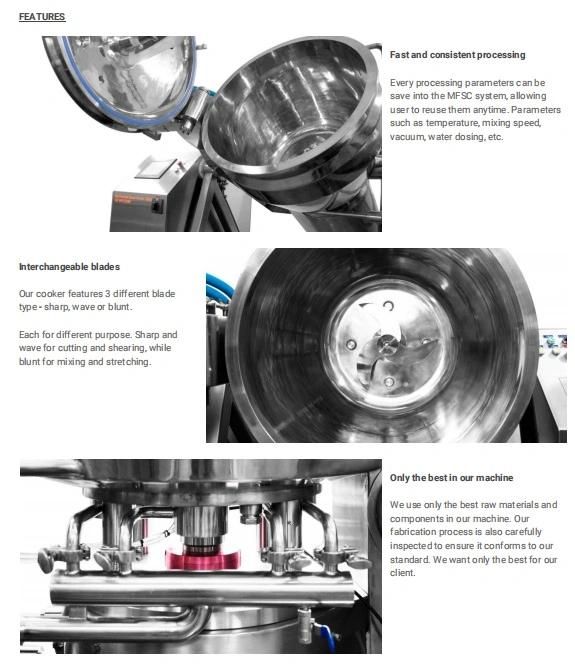

Pictures:
