• Model NO.：JK
• Name：Jacket Kettle Steam Jacketed Kettle Jacket Kettle
• Function：Heating and Mixing
• Capacity：100L to 1000L
• Mixing：Kettle with Scrapper Agitator
• Application：Cooking , Pasteurizing and Mixing Liquid
• Material of Kettle：Ss 304,316
• Heating Source：Electric Heating Kettle, Steam Heating Kett
• Mixer：Scrapper Mixer, Customized
• Heating：by Steam,Electricity,Gas
• Motor：ABB ,Simens
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：2000set ,Year

Basic Info.

Model NO. JK Name Jacket Kettle Steam Jacketed Kettle Jacket Kettle Function Heating and Mixing Capacity 100L to 1000L Mixing Kettle with Scrapper Agitator Application Cooking , Pasteurizing and Mixing Liquid Material of Kettle Ss 304/316 Heating Source Electric Heating Kettle, Steam Heating Kett Mixer Scrapper Mixer, Customized Heating by Steam/Electricity/Gas Motor ABB /Simens Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai, China HS Code 8479820090 Production Capacity 2000set /Year

Product Description

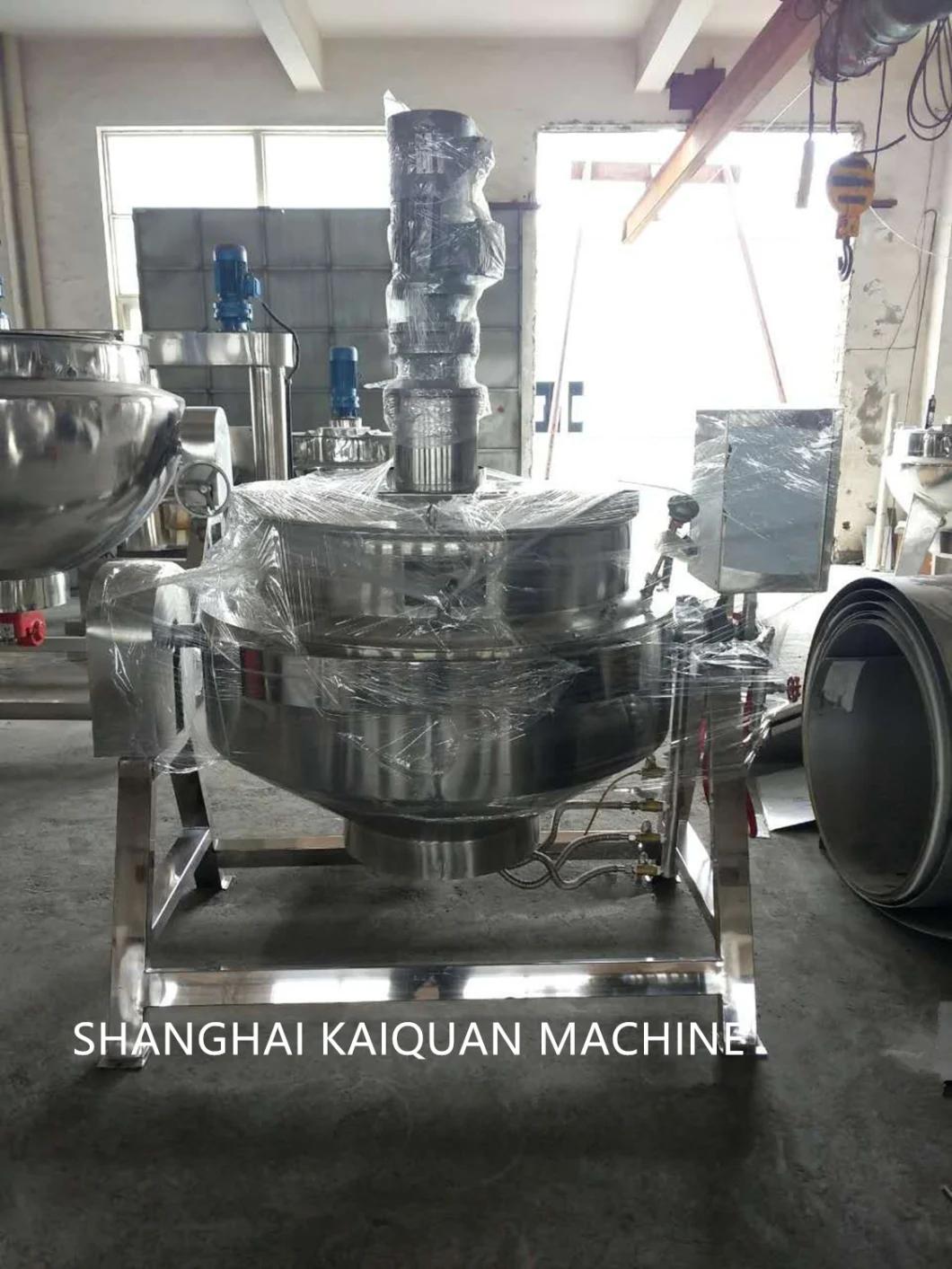

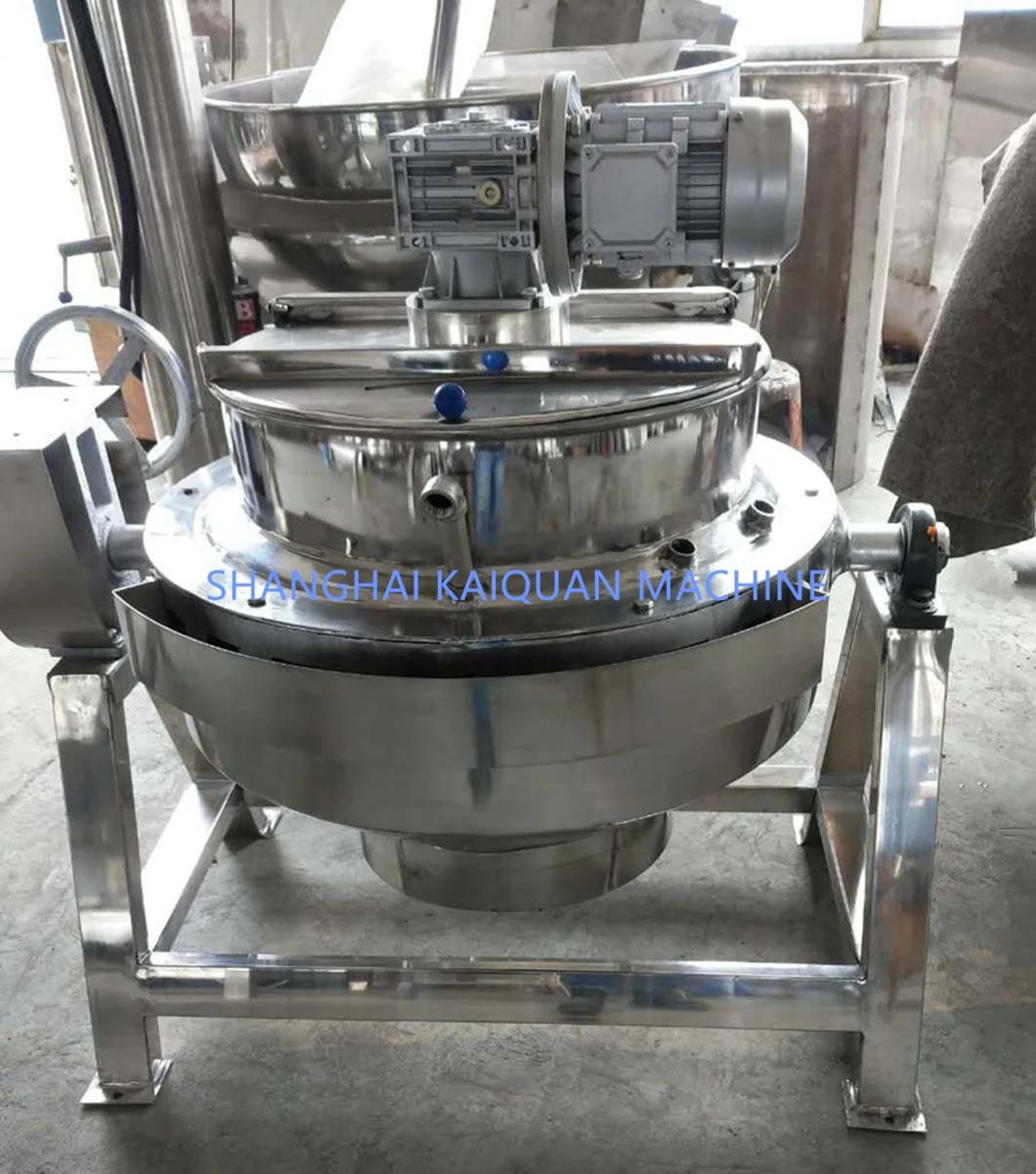

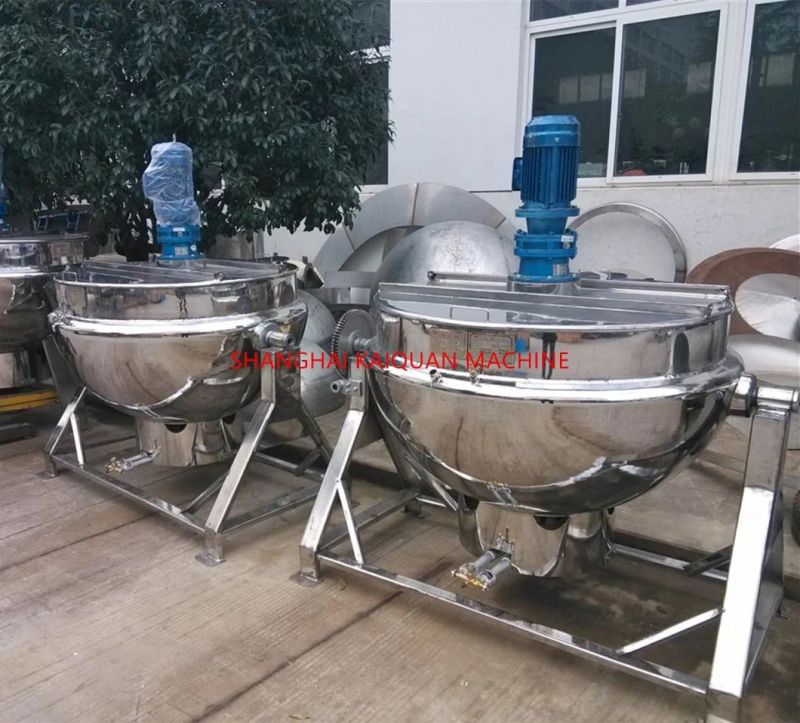

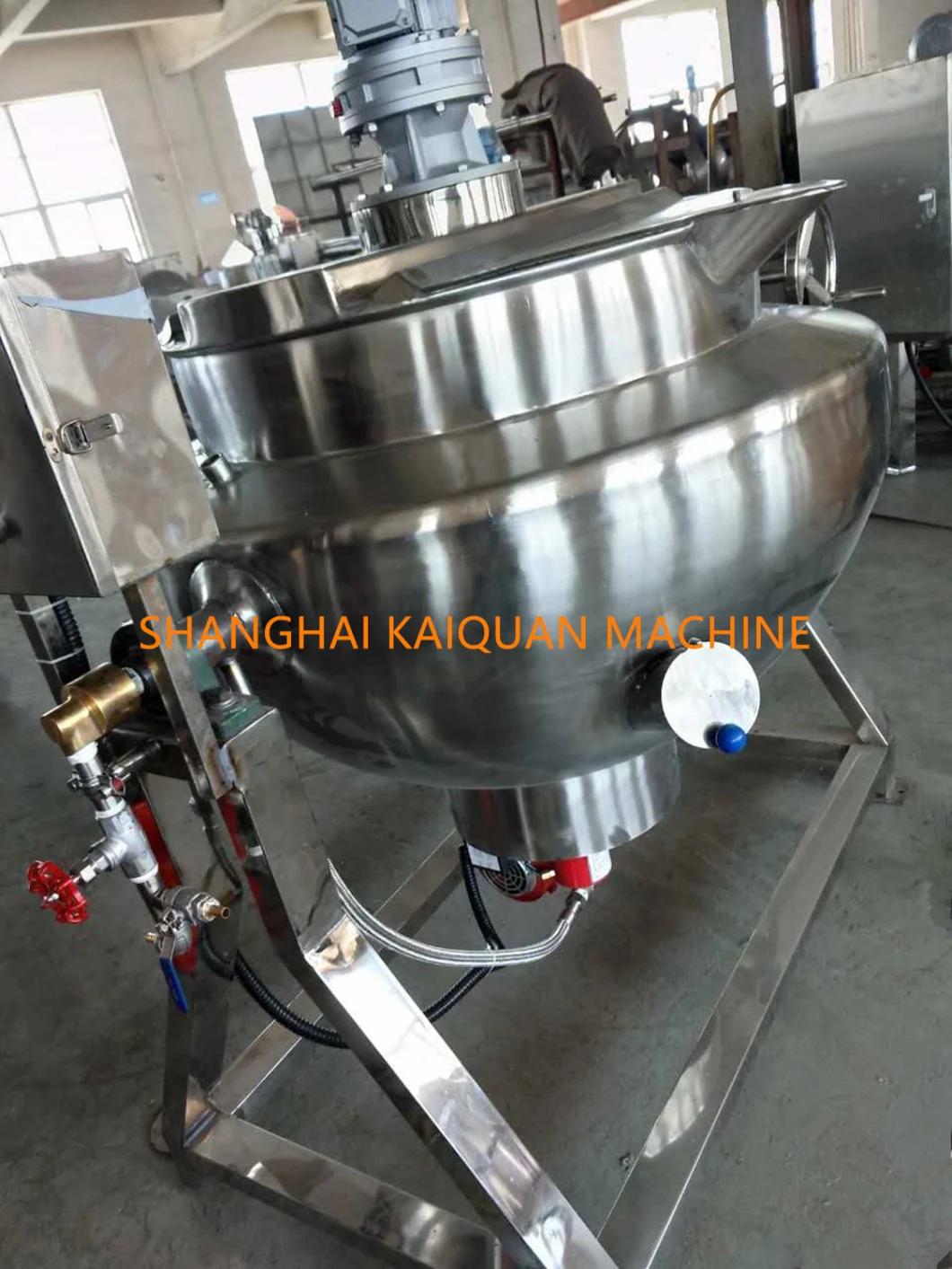

Jacket Kettle Steam Jacketed Kettle Jacket Kettle with Agitator


Material: SS304/316
Electric Heating Jacketed kettles
Stainless steel double-layered boiler/kettle ,used for heating, pasteurizing, cooking, mixing juice, sauce, fruit jam and processing meat, food, Candy, pharmacy, dairy , liquor, cake, drink, candied fruit, etc
 Material: SS304
Heating by Electricity
* Type: with Jacketed wall
* Internal shell thickness: 3 or 4 mm, SS304
* Jacket thickness: 3 or 4mm, SS304
Capacity: 300L~1000L

TankCapacity(L)	200, SS304	300, SS304	500, SS304	1000,SS304
REV	36r/min	36r/min	36r/min	36r/min
Electric motor of the agitator	0.55KW,380v,50hz	0.75KW,380v,50hz	0.75KW,380v,50hz	1.1KW,380v,50hz
Electric heating tube power	15KW,380v,50hz	18KW,380v,50hz	24KW,380v,50hz	45KW,380v,50hz
Heating Area(M2)	0.9	1.1	1.9	4.5
Material Input/output(DN MM)	38	38	38	50
OUTSIDE DEMENSION(L*W*H)MM	900*900*1600	1000*1000*1500	1100*1100*1700	1400*1400*1750

Jacket Kettle Steam Jacketed Kettle Jacket Kettle with Agitator
