• Transport Package：Whole Container Transportation
• Specification：Customized
• Trademark：TUNE
• Origin：Shandong Province, China
• HS Code：8422303090
• Production Capacity：Customized

Basic Info.

Transport Package Whole Container Transportation Specification Customized Trademark TUNE Origin Shandong Province, China HS Code 8422303090 Production Capacity Customized

Product Description

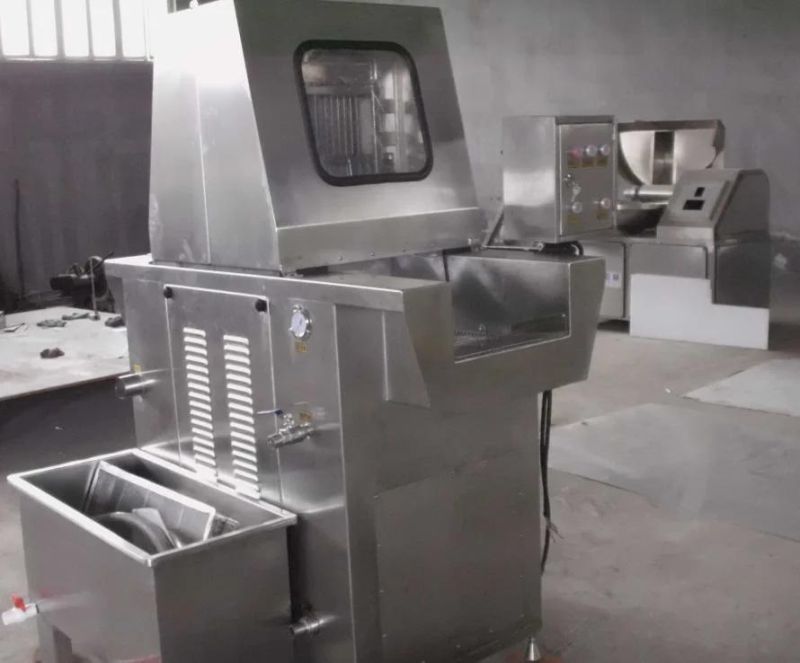

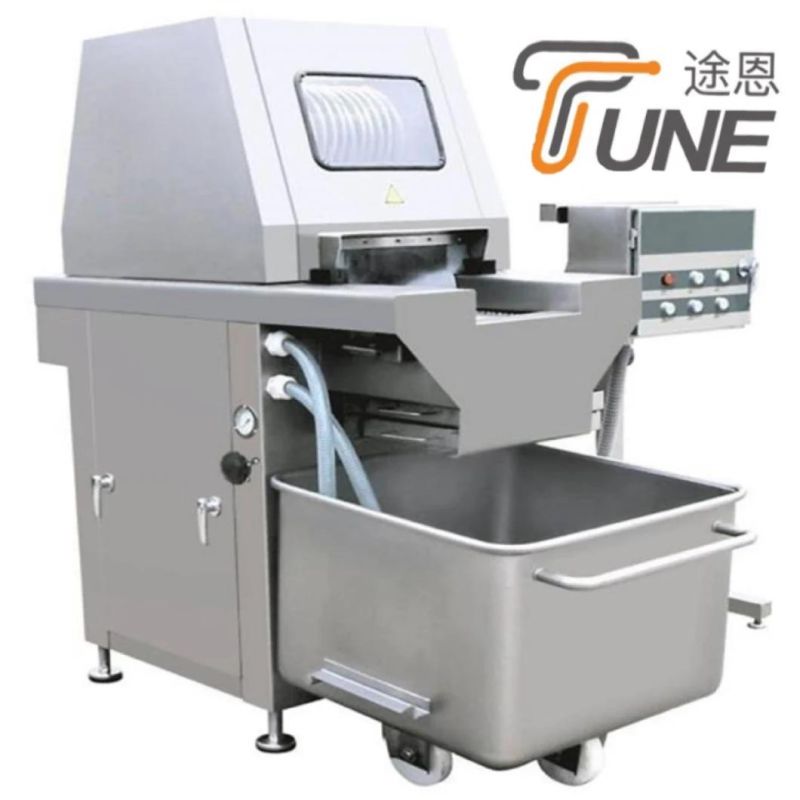

Automatic needles meat injector machine


 Product Description
1: The machine adopts high quality stainless steel, made of stainless steel pumps, designed easy to maintain.
2: more isolated as the injection machine and small meat thoroughly, the aircraft was designed four different filter functions, can promptly discharge the small pieces other than injection, effectively ensure the needle is not blocked. Article removable drive, easy to clean, easy to disassemble the needle, then easy to replace.
3: The machine injection pressure can be between different products 0.1-0.8MPA adjusted according to the injection pressure gauge display and intuitive, easy to use.
4: optional frequency control, chain stepping distance and step speed synchronous adjustable.
5: The machine is equipped with automatic needle protection device, when the needle hit a hard object can lift attendant from damage.

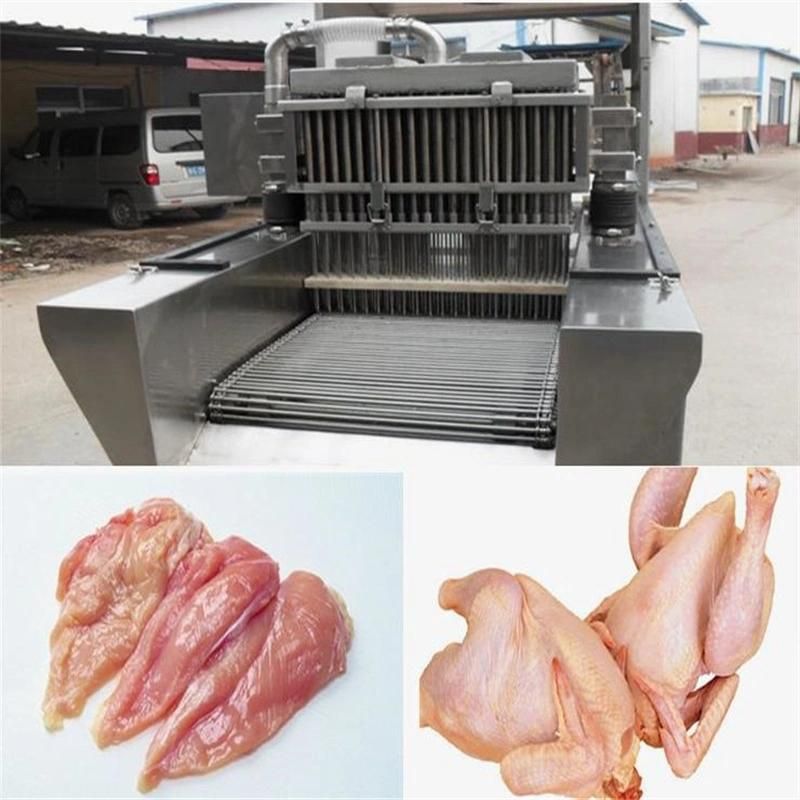

6: This machine except for the meat processing other than by changing the injection needle can be used for processing fish, sea cucumbers, poultry and other products.
Techical Parameters

Model	TUNE-48
Production capacity	500kg/h(1100lbs/h)
Power	4.5KW
Injection rate	40-80%
Needle Specifications	¢2¢3¢4(mm)
Needle amount	48unit
Capacity	500Kg/h(1100lbs/h)
Injection pressure	0.1-0.8mpa
Injections speed	24-36 beats / min
Stepping speed	40-70m/min (adjustable)
Host size	1350*600*1750(mm)
Weight	330Kg(730lbs)

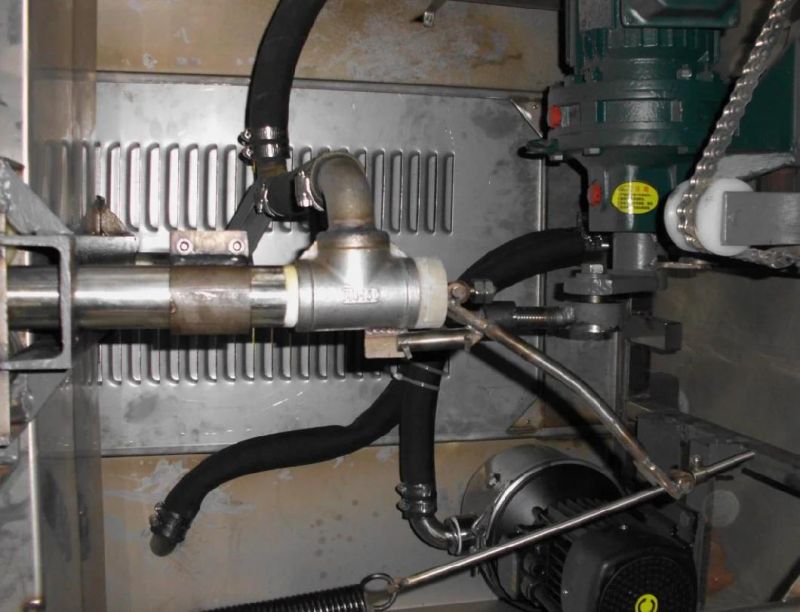

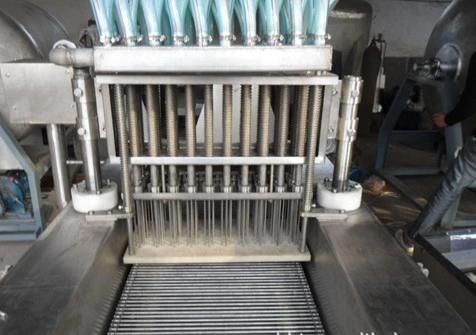

Machine Details



Delivery

Our Clients

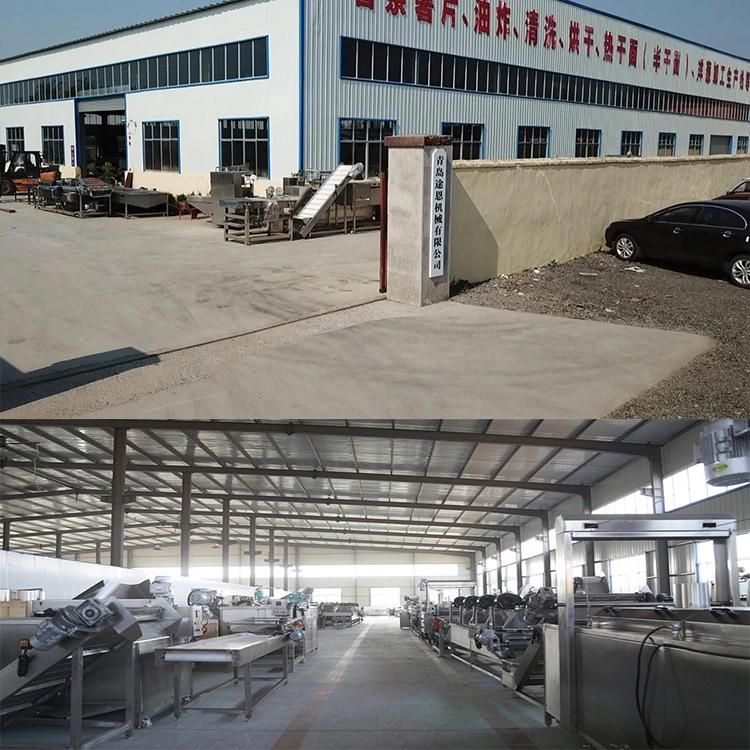

Our Factory
